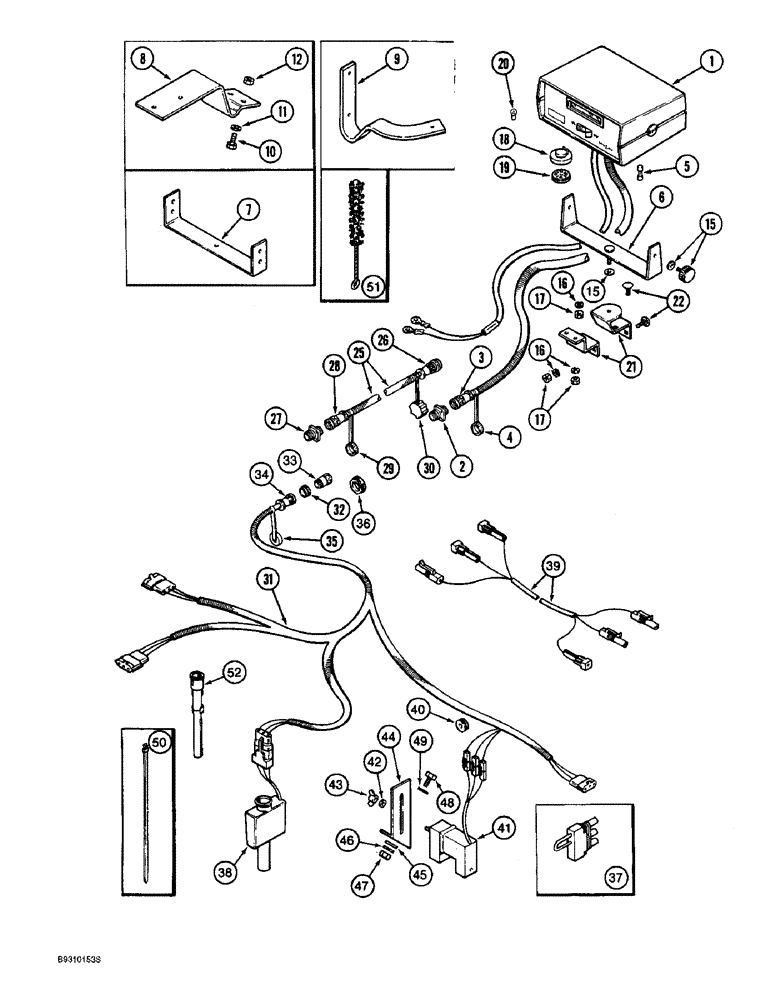

Запчасти Case IH 955 (4-22) - SEED FLOW II MONITOR SYSTEM, ALL RIGID, VERTICAL FOLD, FRONT FOLD AND PARALLEL FRONT FOLD PLANTERS (04) - ELECTRICAL SYSTEMS

1

126420A1R

REMAN-ELECT MONITOR

Monitor - Seed Flow II (Remanufactured)

1шт.

1

126420A1C

CORE-MONITOR

Return Number

1шт.

2

225138C1

CONNECTOR, ELEC

CONNECTOR - electrical, type GV

1шт.

Included in harness repair kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

3

245491C1

ELEC CONNECTOR

CONNECTOR - electrical, type GJ

1шт.

Included in harness repair kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

4

225163C1

ELEC CONNECTOR

CAP - electrical connector, type GF

1шт.

Included in harness repair kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

5

223-38

FUSE,3 Amp, Type 3AG

- 3AG, 3 ampere

1шт.

6

1261523C91

BRACKET

- mounting, if used

1шт.

7

1267828C1

BRACKET

- mounting, if used

1шт.

8

90905C2

BRACKET, SUPPORTING

BRACKET - mounting (J I Case Tractor)

1шт.

9

1960456C1

BRACKET

- mounting (5100, 5200, 7100 and 7200 Series Tractors)

1шт.

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

- hex, 1/4 NC x 2-3/4 inch

2шт.

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

231-4144

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

10

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

11

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

12

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

15

1261524C91

REPAIR KIT

KIT - knob, bracket (Includes 2 knobs and 3 washers)

1шт.

16

392-11031

LOCK WASHER,5/16"

5/16"

1шт.

17

325-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

18

1261548C1

ALARM

- monitor

1шт.

19

1261549C1

DAMPER

- alarm

1шт.

20

58554C1

BULB,C2F, #1892, 14V

- lamp, No. 1892

1шт.

21

1261522C91

BRACKET, SUPPORTING

KIT - bracket, mounting (88 Series Tractors)

1шт.

22

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

4шт.

25

133896C94

HARNESS

CABLE - extension, 180 inch (4572 mm) long (See Note)

1шт.

26

245490C1

ELEC CONNECTOR,Female, 37 Pin

CONNECTOR - electrical, type GA

1шт.

Included in harness repair kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

27

225138C1

CONNECTOR, ELEC

CONNECTOR - electrical, type GV

1шт.

Included in harness repair kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

28

245491C1

ELEC CONNECTOR

CONNECTOR - electrical, type GJ

1шт.

Included in harness repair kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

29

225163C1

ELEC CONNECTOR

CAP - electrical connector, type GF

1шт.

Included in harness repair kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

30

225341C1

CONTACT HOUSING,Male

CAP - electrical connector, type MF

1шт.

Included in harness repair kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

31

245402C2

HARNESS

- monitor (4 row)

1шт.

31

245403C2

HARNESS

- monitor (6 row)

1шт.

31

245404C3

HARNESS

- monitor (8 row)

1шт.

31

245405C3

HARNESS

- monitor (12 row narrow - vertical fold)

1шт.

31

119768A1

HARNESS

- monitor (12 row narrow - front fold)

1шт.

31

180513A1

HARNESS

- monitor (12 row wide - front fold)

1шт.

31

115131A1

HARNESS

- monitor (16 row narrow - front fold)

1шт.

31

183930A1

HARNESS

- monitor, center (12 row narrow - parallel front fold) not shown

1шт.

32

245490C1

ELEC CONNECTOR,Female, 37 Pin

CONNECTOR - electrical, type GA

1шт.

Included in harness repair kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

33

225338C1

ELEC CONNECTOR,Male, Pin

CONNECTOR - electrical, type MB

1шт.

Included in harness repair kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

34

245491C1

ELEC CONNECTOR

CONNECTOR - electrical, type GJ

1шт.

Included in harness repair kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

35

225341C1

CONTACT HOUSING,Male

CAP - electrical connector, type MF

1шт.

Included in harness repair kit ZJI1400004 or can be ordered through Ship Direct Central.

1шт.

35a

222282A1

HARNESS

- monitor, left-hand wing (12 row narrow - parallel front fold) not shown)

1шт.

35b

222283A1

HARNESS

- monitor, right-hand wing (12 row narrow - parallel front fold) not shown

1шт.

36

60-6129T2

CONNECTION

RING - coupling

1шт.

37

245617C1

CONNECTOR,ELECTRIC

CABLE - shorting

2шт.

38

245598C2

SENSOR

- seed

1шт.

39

245521C2

HARNESS

- hopper extension (All except rigid)

1шт.

40

1279331C1

GROMMET

- rubber

1шт.

41

245606C2

SENSOR

- hopper, seed level

1шт.

42

495-81124

WASHER,0.38" ID x 0.75" OD x 0.06" Thk

- flat, 3/8 x 3/4 x 1/16 inch

1шт.

43

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC

1шт.

44

113432C1

BRACKET

- hopper sensor

1шт.

45

495-81120

WASHER,.344" x 1 1/4" x .120"

- flat, 11/32 x 1-1/4 x 7/64 inch

1шт.

46

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

47

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

48

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

49

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch

1шт.

50

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

50

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

51

128817C1

BRUSH, COMMUTATOR

BRUSH - sensor cleaning

1шт.

52

72902C2

TUBE,0.48" ID, 0.6" OD, 7.86" Length

- seed, beet

1шт.
