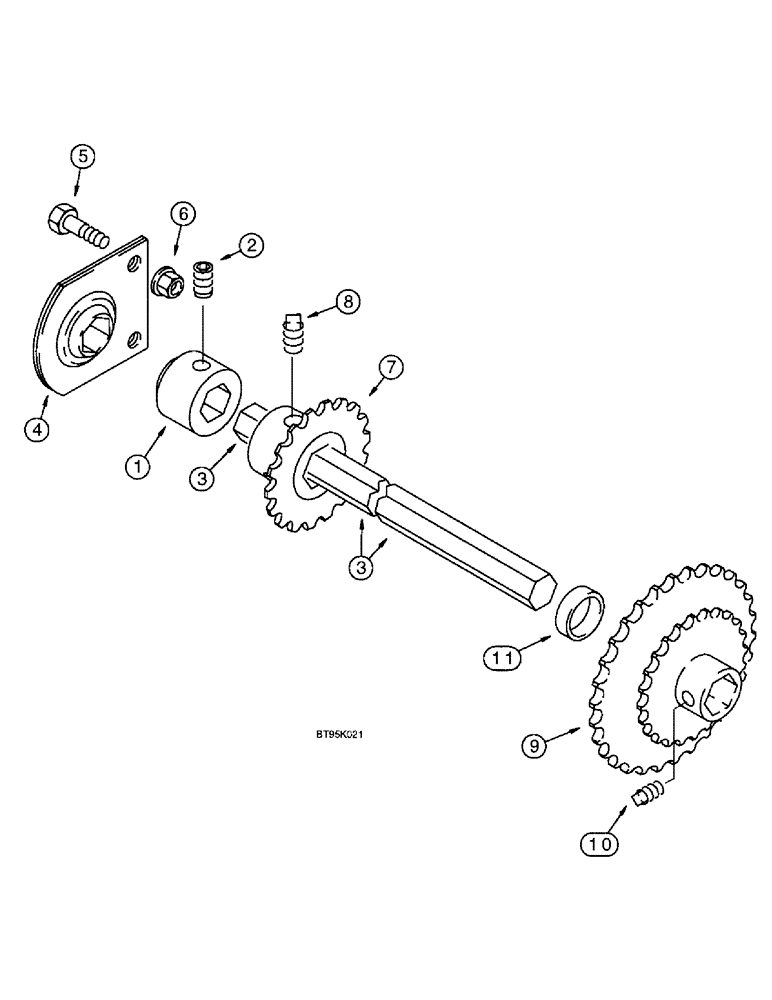

Запчасти Case IH 955 (9B-28) - SECONDARY SEED DRIVE, 6 ROW WIDE - RIGID, 8 ROW NARROW - RIGID (09) - CHASSIS/ATTACHMENTS

1

141572C2

COLLAR

HUB - sprocket, locking

1шт.

2

483-1508

SET SCREW,Hex Soc, 1/2"-13 x 1/2"

SCREW - set, hex socket headless, 1/2 NC x 1/2 inch, cup point

2шт.

3

132421A1

BAR

SHAFT - drive, hex, 22 (7/8) x 5486 mm (216 inch) long, 6 row wide and 8 row narrow

1шт.

4

102724A1

BALL BEARING

HANGER - bearing, 6 row wide only

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, 6 row wide only

2шт.

6

231-5146

FLANGE NUT,3/8"-16

6 row wide only Flg, USR, 3/8"-16

2шт.

7

103681A1

SPROCKET

- 18 teeth, drum drive

1шт.

8

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

2шт.

9

143163A1

SPROCKET ASSY.

SPROCKET - 20 and 34 teeth, final output

1шт.

10

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

2шт.

11

1277812C2

SPACER

- sprocket, 27 x 33 x 9 mm

1шт.
