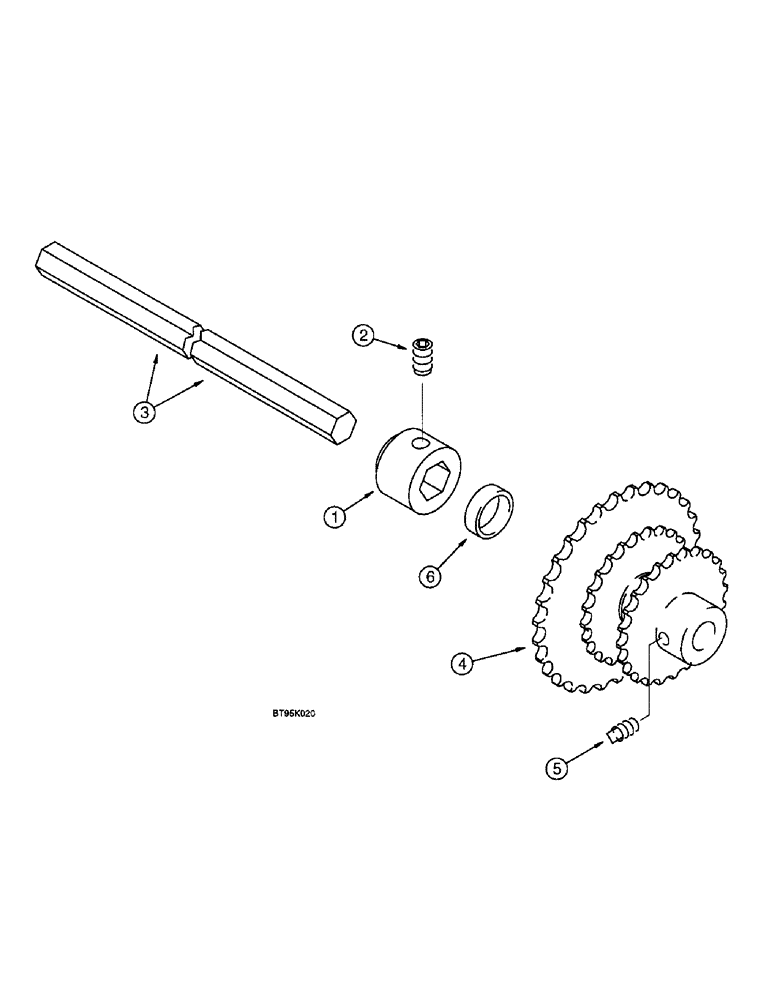

Запчасти Case IH 955 (9B-26) - SECONDARY SEED DRIVE, 4 ROW NARROW - RIGID, 4 ROW WIDE - RIGID, 6 ROW NARROW - RIGID (09) - CHASSIS/ATTACHMENTS

1

141572C2

COLLAR

HUB - sprocket, locking

1шт.

2

483-1508

SET SCREW,Hex Soc, 1/2"-13 x 1/2"

SCREW - set, hex socket headless, 1/2 NC x 1/2 inch, cup point

2шт.

3

178497A1

SHAFT

- drive, hex, 22 (7/8) x 2450 mm (96-1/2 inch) long, 4 row narrow

1шт.

3

176895A1

BAR

SHAFT - drive, hex, 22 (7/8) x 3210 mm (126-3/8 inch) long, 4 row wide

1шт.

3

132423A1

BAR

SHAFT - drive, hex, 22 (7/8) x 3962 mm (156 inch) long, 6 row narrow

1шт.

4

177056A1

SPROCKET ASSY.

SPROCKET - 20, 34 and 18 teeth, final output

1шт.

5

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

2шт.

6

1277812C2

SPACER

- sprocket, 27 x 33 x 9 mm

1шт.
