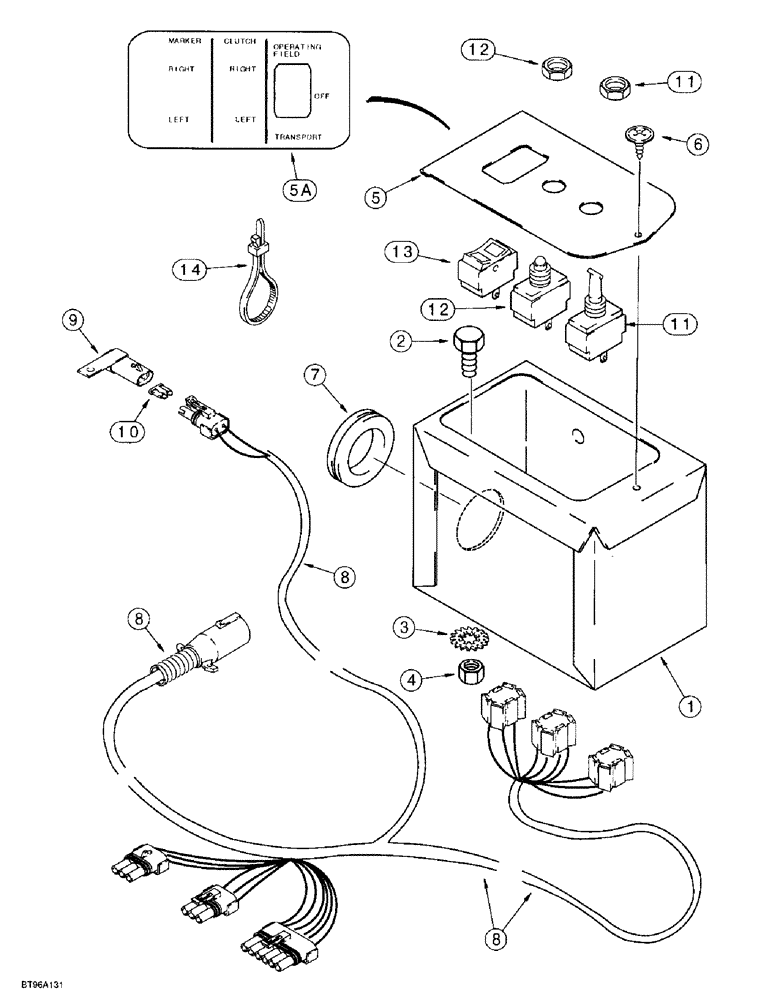

Запчасти Case IH 955 (4-20) - PLANTER CONTROLS, 12 ROW NARROW, PARALLEL FRONT FOLD (04) - ELECTRICAL SYSTEMS

1

116259C4

BOX

- control, electrical

1шт.

2

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

3

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

4

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

5

183744A1

PLATE ASSY.

PLATE ASSEMBLY - switch box cover, includes decal

1шт.

5a

183741A1

DECAL

- control panel, switch box

1шт.

6

260-1446

SELF-TAP SCREW,Cross Pan Hd, #8 x 3/8"

SCREW - self-tapping, pan Phillips, No. 8-18 x 3/8 inch

1шт.

7

D73137

GROMMET

- rubber, control box

1шт.

8

92059C2

HARNESS

- electrical, control box

1шт.

9

225156C1

ELEC CONNECTOR

CONNECTOR - fuse

1шт.

10

A149802

FUSE

- yellow, 20 ampere

1шт.

11

121542C1

SWITCH

ASSEMBLY - marker, toggle, marker

1шт.

12

107379A1

SWITCH

- control, toggle, electric clutch

1шт.

13

245046C1

SWITCH

- control, rocker, transport

1шт.

14

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

4шт.
