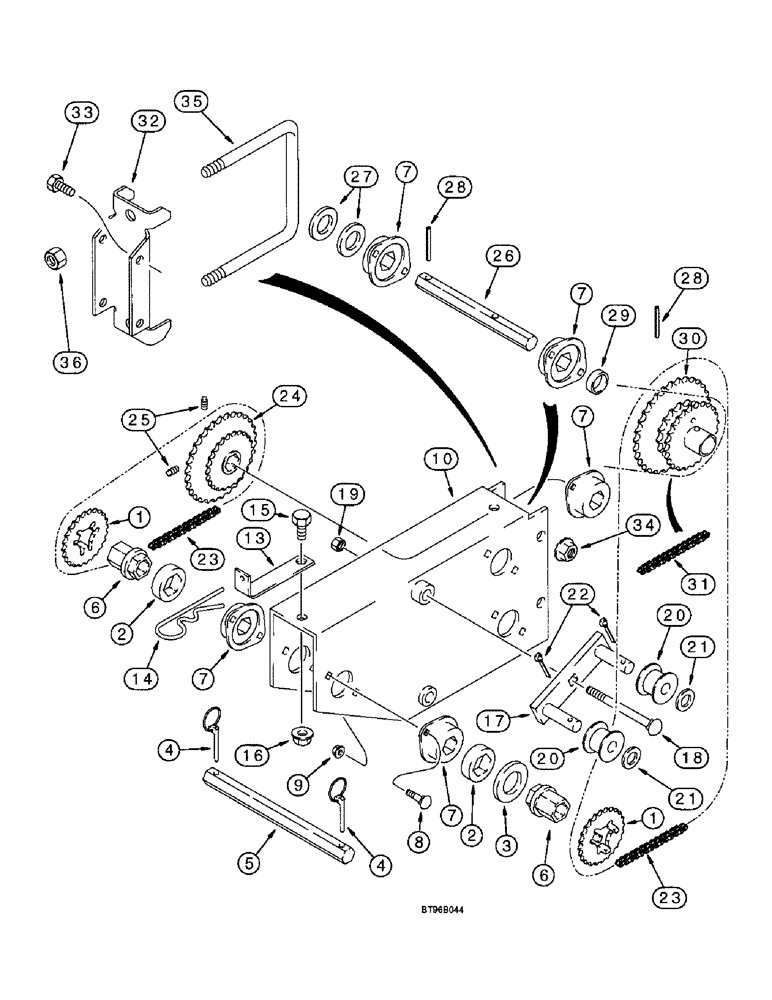

Запчасти Case IH 955 (9B-20) - SEED DRIVE SPEED CHANGE ASSEMBLY, 12, 16 & 24 ROW NARROW - FRONT FOLD, 12 ROW WIDE - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

90897C1

DRIVE SPROCKET

SPROCKET - drive, 20 teeth

1шт.

1

90898C1

DRIVE SPROCKET

SPROCKET - drive, 22 teeth

1шт.

1

90899C1

DRIVE SPROCKET

SPROCKET - drive, 24 teeth

1шт.

1

90900C1

DRIVE SPROCKET

SPROCKET - drive, 28 teeth

1шт.

1

90901C1

DRIVE SPROCKET

SPROCKET - drive, 30 teeth

1шт.

1

90902C1

DRIVE SPROCKET

SPROCKET - drive, 32 teeth

1шт.

1

90903C1

DRIVE SPROCKET

SPROCKET - drive, 34 teeth

1шт.

2

140932C2

SPACER

- sprocket

2шт.

3

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 1/8"

2шт.

4

A30338

PIN

- lock

2шт.

5

134142C1

BAR

SHAFT - drive, hex, 22 (7/8) x 269 mm (10-19/32 inch) long

1шт.

6

140931C1

HUB

- sprocket

2шт.

7

134158C92

BALL BEARING,22.5mm ID

- ball, hex, sealed, 7/8 inch, sealed, hex

5шт.

8

412-512

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT - carriage, 5/16 NC x 3/4 inch, grade 2

10шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

10шт.

10

115109A1

TRANSMISSION

SUPPORT - speed change

1шт.

13

141781C1

BRACKET

- sprocket storage

1шт.

14

591107R1

COTTER PIN

- cotter, hair

1шт.

15

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

5шт.

16

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

5шт.

17

96032C1

BAR ASSY.

BAR - chain idler

2шт.

18

433-888

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 5 1/2", Gr 5

BOLT - carriage, 1/2 NC x 5-1/2 inch

2шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

20

1277726C1

ROLLER,48mm OD x 34mm L

- idler

4шт.

21

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

4шт.

22

432-1216

COTTER PIN,3/16" x 1"

4шт.

23

116272A1

CHAIN (AG)

CHAIN ASSEMBLY - speed change, use 85 links from 1790D bulk chain and (1) 241-1314 connecting link, see below

2шт.

24

90907C1

DRIVE SPROCKET

SPROCKET - 20 and 32 teeth

1шт.

25

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

2шт.

26

116269A1

SHAFT

- hex, 7/8 inch, speed change idler

1шт.

27

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

2шт.

28

438-32024

PIN,5/16" x 1 1/2", Coiled

2шт.

29

1277812C2

SPACER

- sprocket, 27 x 33 x 9 mm, bearing and triple sprocket

1шт.

30

116271A2

SPROCKET ASSY.

SPROCKET - triple, 24, 20 and 34 teeth

1шт.

31

116273A2

CHAIN (AG)

CHAIN - drive, use 97 links from 1790D bulk chain, (1) 241-1314 connecting link and (2) 241-1714 offset links, see below

2шт.

32

127584A1

BRACKET

- transmission support

1шт.

33

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

34

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

35

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

1шт.

36

425-1010

NUT,5/8"-11, G5

2шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.

241-1314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch

1шт.

241-1714

CHAIN LINK

LINK - offset, single pitch, No. 40, 1/2 inch pitch

1шт.
