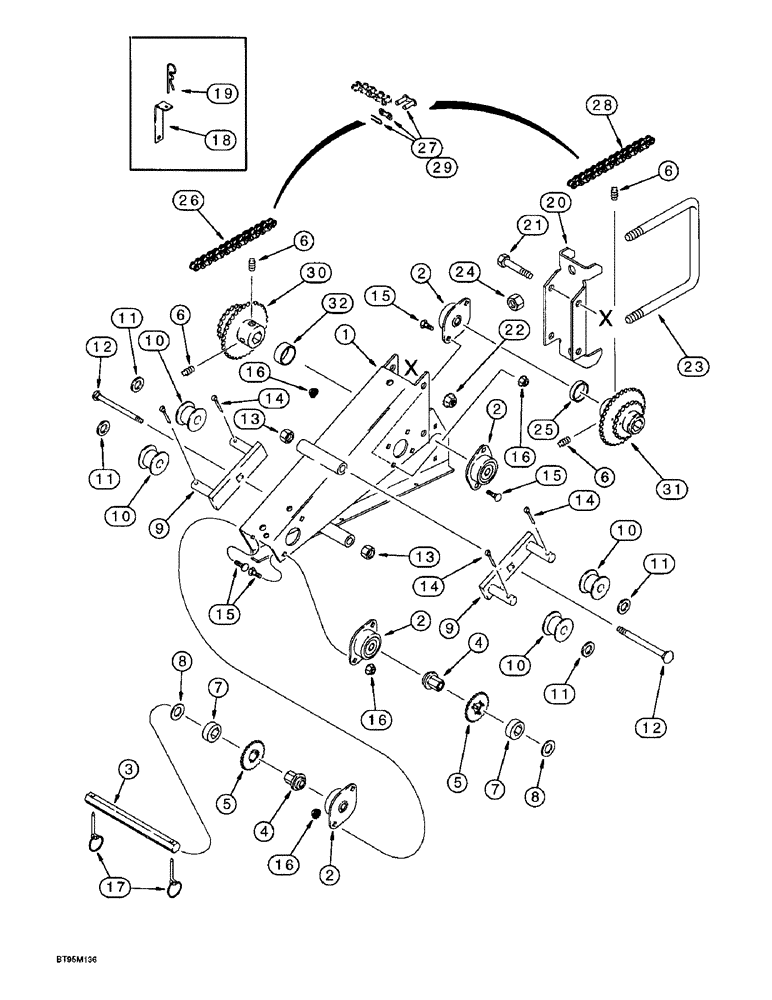

Запчасти Case IH 955 (9B-14) - SEED DRIVE SPEED CHANGE, 8 ROW WIDE - VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

137203C4

SUPPORT

- speed change

1шт.

2

134158C92

BALL BEARING,22.5mm ID

- ball, hex, sealed, 7/8 inch

4шт.

3

134142C1

BAR

SHAFT - drive, hex, 22 (7/8) x 269 mm (10-19/32 inch) long, short

1шт.

4

140931C1

HUB

- sprocket

2шт.

5

90897C1

DRIVE SPROCKET

SPROCKET - drive, 20 teeth

1шт.

5

90898C1

DRIVE SPROCKET

SPROCKET - drive, 22 teeth

1шт.

5

90899C1

DRIVE SPROCKET

SPROCKET - drive, 24 teeth

1шт.

5

90900C1

DRIVE SPROCKET

SPROCKET - drive, 28 teeth

1шт.

5

90901C1

DRIVE SPROCKET

SPROCKET - drive, 30 teeth

1шт.

5

90902C1

DRIVE SPROCKET

SPROCKET - drive, 32 teeth

1шт.

5

90903C1

DRIVE SPROCKET

SPROCKET - drive, 34 teeth

1шт.

6

485-15012

SET SCREW,Sq Hd, 1/2"-13 x 3/4"

SCREW - set, square head, 1/2 NC x 3/4 inch, cup point

4шт.

7

140932C2

SPACER

- sprocket

2шт.

8

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 1/8"

2шт.

9

96032C1

BAR ASSY.

BAR - chain idler

2шт.

10

1277726C1

ROLLER,48mm OD x 34mm L

- idler

4шт.

11

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

4шт.

12

133-5

CARRIAGE BOLT,Sq Nk, 1/2" - 13, LH Thd x 5 1/2", Gr 5

BOLT, CARRIAGE, , LH Thread Short NK, 1/2"-13 x 5 1/2", G5

2шт.

13

125-10010

NUT,1/2"-13, G5, LH

- hex, left-hand thread, 1/2 inch NC

2шт.

14

432-1216

COTTER PIN,3/16" x 1"

4шт.

15

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

8шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

17

A30338

PIN

- lock

2шт.

18

141781C1

BRACKET

- sprocket storage

1шт.

19

591107R1

COTTER PIN

- cotter, hair

1шт.

20

127584A1

BRACKET

- transmission support

1шт.

21

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

22

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

23

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

1шт.

24

425-1010

NUT,5/8"-11, G5

2шт.

25

1277812C2

SPACER

- sprocket, 27 x 33 x 9 mm, drive shaft

1шт.

26

90916C1

CHAIN (AG)

CHAIN - input speed change, No. 40, use 109 links from 1790D bulk chain, plus (1) 241-1314 connecting link, see below

1шт.

27

241-1314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch, input speed change chain

1шт.

28

90915C1

CHAIN (AG)

CHAIN - output speed change, use 87 links from 1790D bulk chain plus (1) 241-1314 connecting link, see below

1шт.

29

241-1314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch, output speed change chain

1шт.

30

90907C1

DRIVE SPROCKET

SPROCKET - 20 and 32 teeth, input, speed change

1шт.

31

143163A1

SPROCKET ASSY.

SPROCKET - 20 and 34 teeth, final output

1шт.

32

144812C2

SPACER

- 27 x 33 x 17 mm, input sprocket

1шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.
