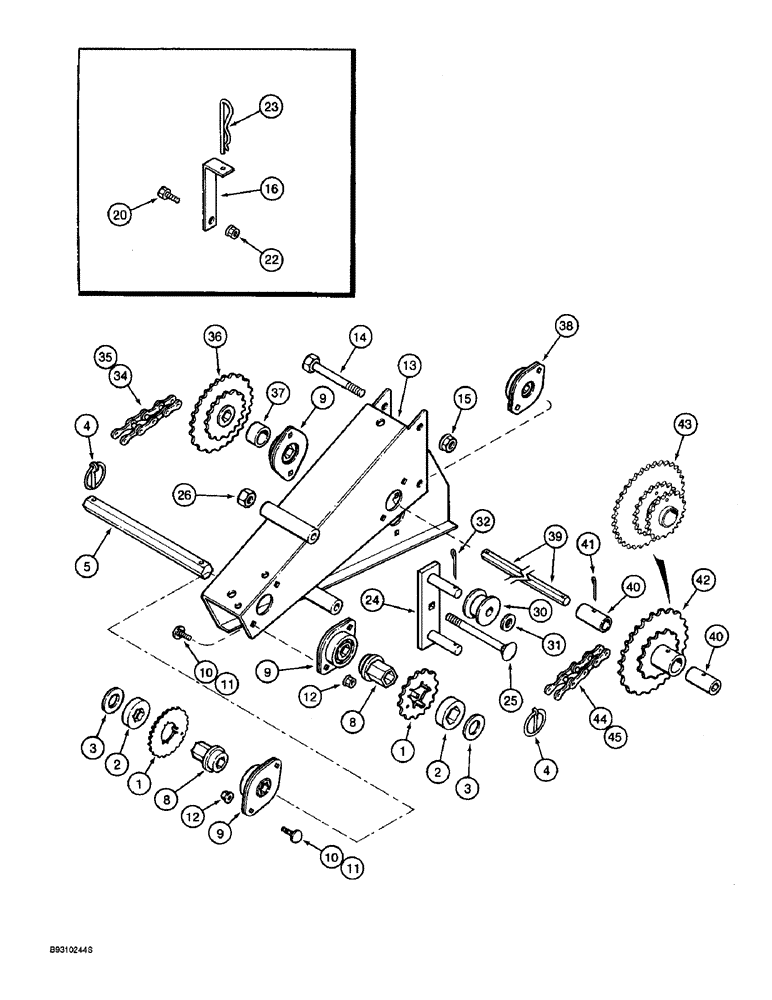

Запчасти Case IH 955 (9B-10) - SEED DRIVE SPEED CHANGE, 4, 6 & 8 ROW NARROW - RIGID, 4 & 6 ROW WIDE RIGID (09) - CHASSIS/ATTACHMENTS

1

90897C1

DRIVE SPROCKET

SPROCKET - drive, 20 teeth

1шт.

1

90898C1

DRIVE SPROCKET

SPROCKET - drive, 22 teeth

1шт.

1

90899C1

DRIVE SPROCKET

SPROCKET - drive, 24 teeth

1шт.

1

90900C1

DRIVE SPROCKET

SPROCKET - drive, 28 teeth

1шт.

1

90901C1

DRIVE SPROCKET

SPROCKET - drive, 30 teeth

1шт.

1

90902C1

DRIVE SPROCKET

SPROCKET - drive, 32 teeth

1шт.

1

90903C1

DRIVE SPROCKET

SPROCKET - drive, 34 teeth

1шт.

2

140932C2

SPACER

- sprocket

2шт.

3

495-81074

WASHER,1 1/32" x 1 3/4" x .120"

- flat, 1-1/32 x 1-3/4 x 1/8"

2шт.

4

A30338

PIN

- lock

2шт.

5

134142C1

BAR

SHAFT - drive, hex, 22 (7/8) x 269 mm (10-19/32 inch) long

1шт.

8

140931C1

HUB

- sprocket

2шт.

9

134158C92

BALL BEARING,22.5mm ID

- ball, hex, sealed, 7/8 inch

3шт.

10

412-512

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT - carriage, 5/16 NC x 3/4 inch, grade 2 (6) used on 4 row narrow, 6 row narrow and 4 row wide - (8) used on 6 row wide and 8 row narrow

6-8шт.

11

434-520

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - carriage, 5/16 NC x 1-1/4 inch (4 row narrow, 6 row narrow and 4 row wide)

2шт.

12

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

13

137203C4

SUPPORT

- speed change

1шт.

14

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(4 row narrow, 6 row narrow, and 4 row wide) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

14

413-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

- hex, 1/2 NC x 4-1/4 inch (6 row wide and 8 row narrow)

2шт.

15

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2-4шт.

16

141781C1

BRACKET

- sprocket storage

1шт.

20

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

(If equipped) Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

22

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

If equipped Flg, USR, 1/2"-13

1шт.

23

591107R1

COTTER PIN

- cotter, hair, cotter

1шт.

24

96032C1

BAR ASSY.

BAR - chain idler

2шт.

25

133-5

CARRIAGE BOLT,Sq Nk, 1/2" - 13, LH Thd x 5 1/2", Gr 5

BOLT, CARRIAGE, , LH Thread Short NK, 1/2"-13 x 5 1/2", G5

2шт.

26

125-10010

NUT,1/2"-13, G5, LH

- hex, left-hand thread, 1/2 inch NC

2шт.

30

1277726C1

ROLLER,48mm OD x 34mm L

- idler

4шт.

31

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

4шт.

32

432-1216

COTTER PIN,3/16" x 1"

4шт.

34

90916C1

CHAIN (AG)

CHAIN - input speed change, No. 40, use 109 links from 1790D bulk chain, plus (1) 241-1314 connecting link

1шт.

35

241-1314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch, input speed change chain

1шт.

36

90907C1

DRIVE SPROCKET

SPROCKET - 20 and 32 teeth

1шт.

37

144812C2

SPACER

- 27 x 33 x 17 mm (6 row wide and 8 row narrow)

1шт.

37

90794C2

SPACER

- double sprocket, 41 mm (1-39/64 inch) (4 row narrow, 4 row wide and 6 row narrow)

1шт.

38

134158C92

BALL BEARING,22.5mm ID

- ball, hex, sealed, 7/8 inch, hex, sealed, 7/8 inch

1шт.

39

REF

INSTRUCTION

SHAFT - drive, hex, 7/8 inch (See secondary seed drives)

1шт.

40

137204C2

SPACER

BUSHING - shear pin

2шт.

41

432-1240

COTTER PIN,3/16" x 2 1/2"

3/16" x 2 1/2"

2шт.

42

90906C2

DRIVE SPROCKET

SPROCKET - 20 and 34 teeth, final output (6 row wide and 8 row narrow)

1шт.

43

1547034C2

SPROCKET ASSY.

SPROCKET - 20, 34 and 18 teeth, final output (4 row narrow, 4 row wide, and 6 row narrow)

1шт.

44

90915C1

CHAIN (AG)

CHAIN - output speed change, use 87 links from 1790D bulk chain plus (1) 241-1314 connecting link

1шт.

45

241-1314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch, output speed change chain

1шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.
