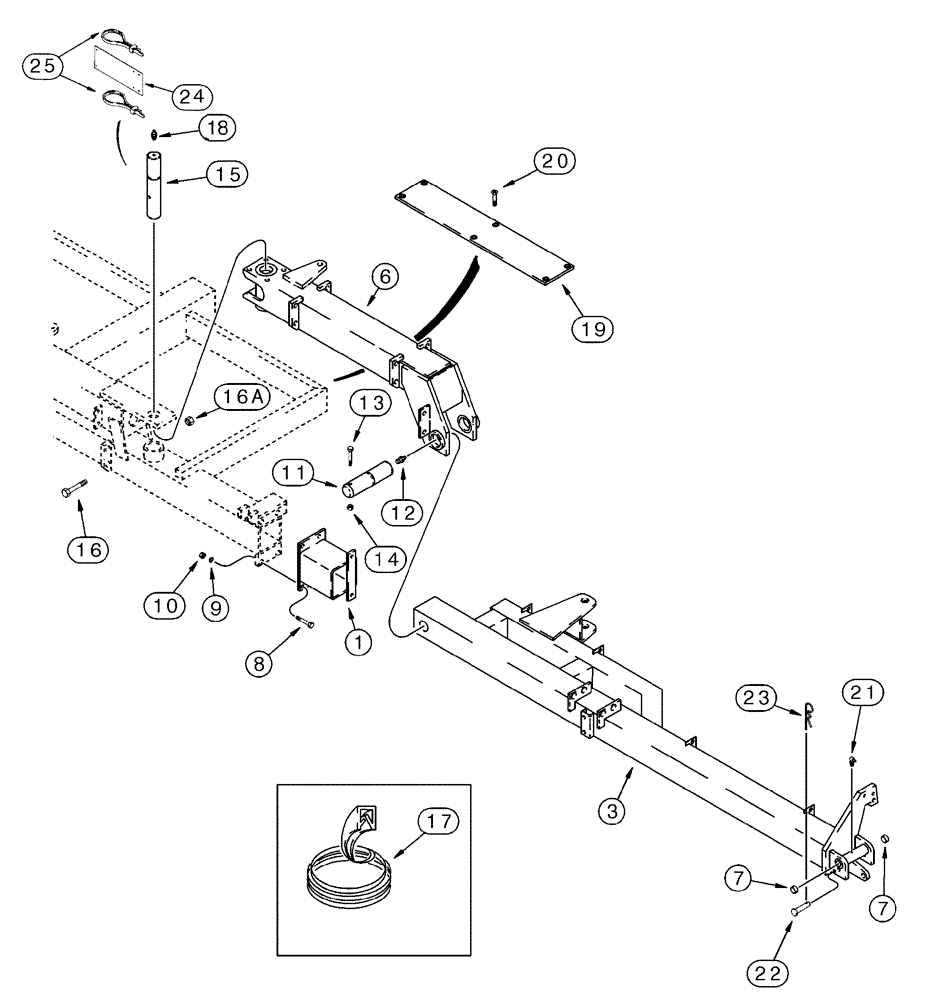

Запчасти Case IH 955 (9A-110) - WING FRAMES AND HINGE, AFS PLANTER, 12 ROW AND 16 ROW NARROW (09) - CHASSIS/ATTACHMENTS

1

231460A1

EXTENSION

FRAME - center extension, right-hand and left-hand

2шт.

3

302719A1

FRAME ASSY

WING - main frame, right-hand (12 row narrow)

1шт.

3

302714A1

FRAME ASSY

WING - main frame, right-hand (16 row narrow)

1шт.

4

302717A1

FRAME ASSY

WING - main frame, left-hand (12 row narrow) (not shown)

1шт.

4

302716A1

FRAME ASSY

WING - main frame, left-hand (16 row narrow) (not shown)

1шт.

5

231468A2

HINGE

- main frame, left-hand (12 and 16 row narrow) (not shown)

1шт.

6

231472A2

HINGE

- main frame, right-hand (12 and 16 row narrow)

1шт.

7

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

- 1-1/2 ID x 1-3/4 OD x 3/4 inch

4шт.

8

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

8шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

10

425-1010

NUT,5/8"-11, G5

8шт.

11

116077A1

PIN

- pivot, wing, horizontal

2шт.

12

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

13

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- hex, 1/2 NC x 4-1/2 inch, grade 8

4шт.

14

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

4шт.

15

300226A1

PIN

- pivot, hinge, vertical

2шт.

16

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- hex, 1/2 NC x 4-1/2 inch, grade 8

2шт.

16a

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.

17

118861A1

LINING

TRIM - edge, 1/4 inch thick

9шт.

18

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

19

116071A2

PLATE

PLATE - slide, plastic

2шт.

20

361-43816

HEX SOC SCREW,FLAT, 3/8" - 16 x 1"

BOLT - hex socket, 3/8 NC x 1 inch

1шт.

21

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

22

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

2шт.

23

1978738C1

HAIR PIN COTTER

3/16"

2шт.

24

305079A1

SHEET

GUARD - pin

2шт.

25

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long

4шт.
