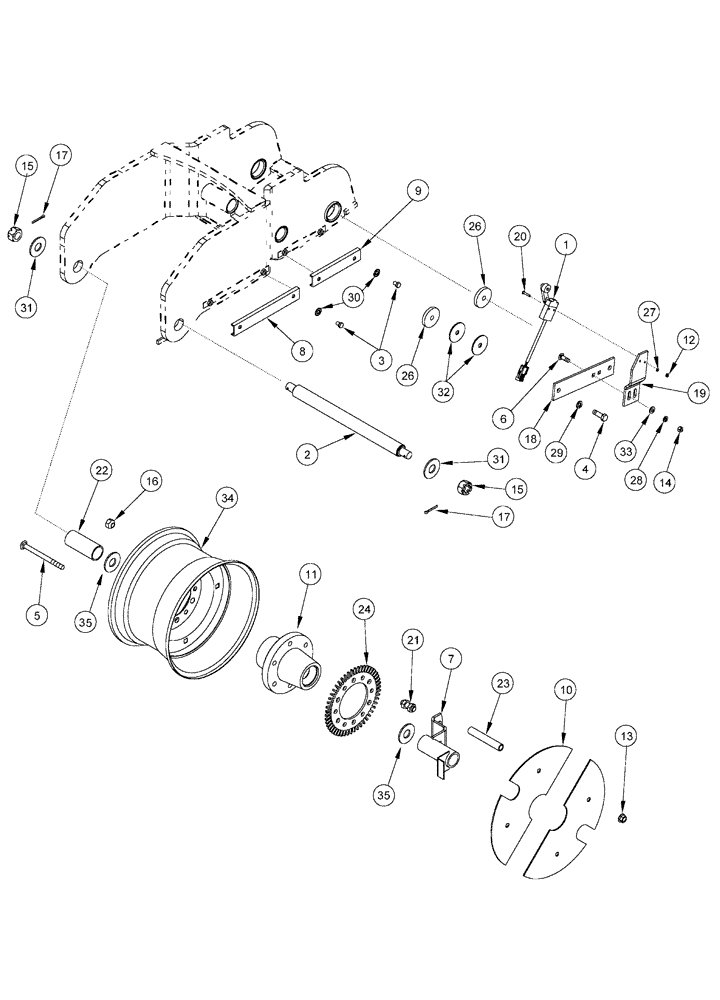

Запчасти Case IH 955 (9A-104) - WHEEL SPEED SENSOR, AFS PLANTER, 12/23 SRC (09) - CHASSIS/ATTACHMENTS

1

324313A1

SWITCH

- limit

1шт.

2

249105A2

AXLE

- wheel, 20 inch long

1шт.

3

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

4шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

5

433-8104

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 6 1/2", Gr 5

BOLT - carriage, 1/2 NC x 6-1/2 inch

4шт.

6

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

If looking for bolt that holds the wheel on, part # is 313456A1. bp 5/5/99

1шт.

7

323389A1

BRACKET

- wheel speed

1шт.

8

321456A1

CHANNEL

- wire guard, wire guard, wheel speed sensor low

1шт.

9

321457A1

CHANNEL

- wire guard, wire guard, wheel speed sensor up

1шт.

10

1264480C1

COVER

- 15 inch wheel

2шт.

11

323223A1

HUB

- with bearings

1шт.

453012R1

BEARING CUP

CUP - tapered roller bearing

2шт.

8050528

ROLLER BEARING

CONE - tapered roller bearing

2шт.

12

225-14110

NUT,#10-24

2шт.

13

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.

15

425-1316

NUT,1"-14, G5

NUT - hex, slotted, 1 inch NF

2шт.

16

G49041

WHEEL NUT

- wheel, special, 9/16 inch NF

6шт.

17

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

18

294803A2

PLATE

- adjustment, implement status switch

1шт.

19

294805A2

PLATE

- adjustment, implement status switch

1шт.

20

340-11016

SCREW,Cross Pan Hd, #10-24 x 1"

- machine, pan Phillips, No. 10 NC x 1 inch

2шт.

21

324049A1

SENSOR

- speed hall

1шт.

22

338169A1

SPACER

- 1.9 OD x 4.095 inch

1шт.

23

305602A1

SPACER

- 129 mm

4шт.

24

304815A2

SPROCKET

- speed sensor, 50 tooth

1шт.

26

116051A1

WASHER

- special

2шт.

27

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

28

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

29

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

30

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch

4шт.

31

495-21106

WASHER,1"

- flat, 1-1/16 x 2-1/2 x 5/32 inch

2шт.

32

495-81169

WASHER,17/32" x 2 1/2" x .120"

- flat, 17/32 x 2-1/2 x 3/64 inch

2шт.

33

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

2шт.

34

1277504C1

RIM

WHEEL - 15 (381) x 10 inch (254 mm)

1шт.

35

338168A1

WASHER

WASHER - special

2шт.
