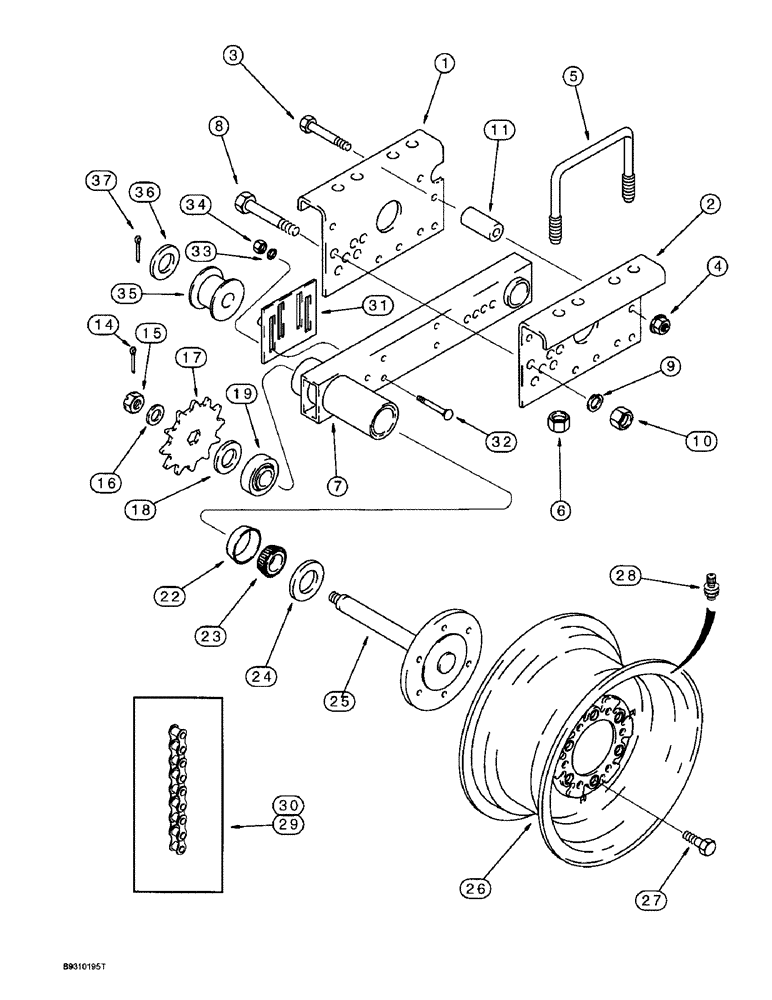

Запчасти Case IH 955 (9A-100) - DRIVE WHEEL, 8 ROW WIDE AND 12 ROW NARROW - VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

134125C4

SUPPORT

- drive wheel mount, left-hand

1шт.

2

134126C4

SUPPORT

- drive wheel mount, right-hand

1шт.

3

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

4шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

5

1279517C2

U-BOLT,3/4" - 10 x 176.50mm W x 202mm L

- 3/4 inch NC

2шт.

6

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

7

1264320C3

TUBE,541 mm Length

ARM - drive wheel

1шт.

8

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

9

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

425-1010

NUT,5/8"-11, G5

1шт.

11

23885K

SPACER,3/4" Tube x 2 1/16"

- 3/4 x 2-1/16 inch

4шт.

14

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

15

425-1212

SLOTTED NUT,3/4"-10, G5

NUT - hex, slotted, 3/4 inch NC

1шт.

16

495-81041

WASHER,25/32" x 1 1/2" x .060"

- flat, 25/32 x 1-1/2 x 1/16 inch

2шт.

17

1277736C1

SPROCKET

- drive wheel, 12 teeth

1шт.

18

134120C4

SPACER

- drive wheel

1шт.

19

602957R91

BEARING ASSY,31.75mm ID x 59.13mm OD x 16mm W

- tapered roller, includes cup and cone, drive wheel shaft, outer

1шт.

22

50213V

BEARING CUP

CUP - tapered roller bearing, 2-3/4 inch OD, drive wheel, inner

1шт.

23

1264322C91

ROLLER BEARING

CONE - tapered roller bearing, drive wheel, inner

1шт.

24

137231C1

SEAL

- drive wheel shaft

1шт.

25

134117C4

SHAFT

- drive wheel

1шт.

26

481344R91

WHEEL

- 356 (14) x 203 mm (8 inch)

1шт.

27

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

6шт.

28

810768C1

VALVE

- inflation, steel

1шт.

29

1277739C91

CHAIN (AG)

CHAIN - primary wheel drive, No. 2050, use 45 links from 569089R91 bulk chain and (1) 1277928C91 connecting link

1шт.

30

1277928C91

LINK

- chain connecting, straight

1шт.

31

193948A1

IDLER

PLATE - wheel drive idler

1шт.

32

433-848

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT - carriage, 1/2 NC x 3 inch

2шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

34

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

35

1277726C1

ROLLER,48mm OD x 34mm L

- idler

1шт.

36

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

1шт.

37

432-1216

COTTER PIN,3/16" x 1"

1шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN - bulk roll, 10 foot long

1шт.
