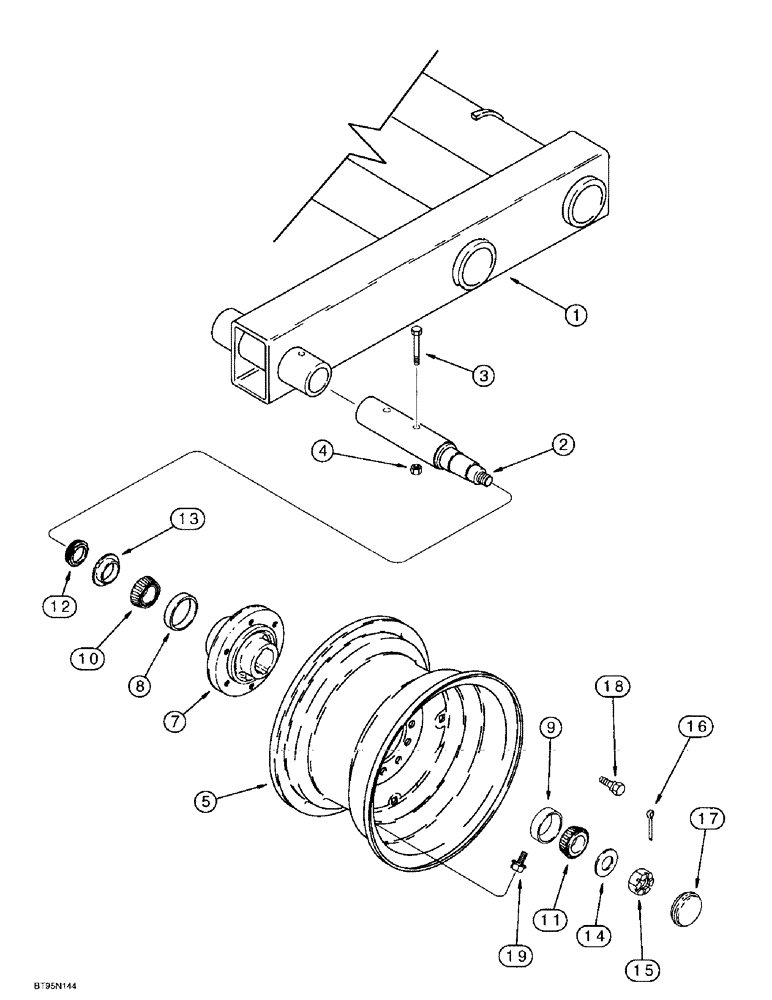

Запчасти Case IH 955 (9A-094) - CARRYING WHEEL, 12 ROW NARROW - PARALLEL FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

1973158C2

FRAME

- cart wheel, see Figure 9A-20

1шт.

2

1337412C1

SPINDLE

- wheel, 6 bolt heavy

4шт.

3

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

4шт.

4

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

4шт.

5

1277504C1

RIM

WHEEL - 15 (381) x 10 inch (254 mm) (Use with 11L x 15 tubeless 8 ply tire)

4шт.

606468R21

HUB

ASSEMBLY - wheel, 6 bolt, Includes: Ref. 7 - 9

4шт.

7

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

8

663558R1

BEARING CUP

CUP - tapered roller bearing, 2-57/64 inch OD, inner

1шт.

Part of wheel bearing repair kit P/N 123096A2

1шт.

9

651817R1

BEARING CUP

CUP - tapered roller bearing, outer

1шт.

Part of wheel bearing repair kit P/N 123096A2

1шт.

10

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - tapered roller bearing, 1-5/8 inch ID, inner

4шт.

Part of wheel bearing repair kit P/N 123096A2

1шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing, outer

4шт.

Part of wheel bearing repair kit P/N 123096A2

1шт.

12

594702R91

SEAL

- oil

4шт.

Part of wheel bearing repair kit P/N 123096A2

1шт.

13

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

Part of wheel bearing repair kit P/N 123096A2

1шт.

14

495-81060

WASHER,23.01mm ID x 44.45mm OD x 3.4mm Thk

- flat, 29/32 x 1-3/4 x 7/64 inch

4шт.

15

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted, special, 7/8 inch NC

4шт.

16

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

4шт.

17

224066C1

HUB CAP

CAP - wheel hub

4шт.

18

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

24шт.

19

810769C1

VALVE

- inflation

4шт.

123096A2

WHEEL BEARING KIT

KIT - repair, wheel bearing, Includes: Refs. 8 through 13

1шт.
