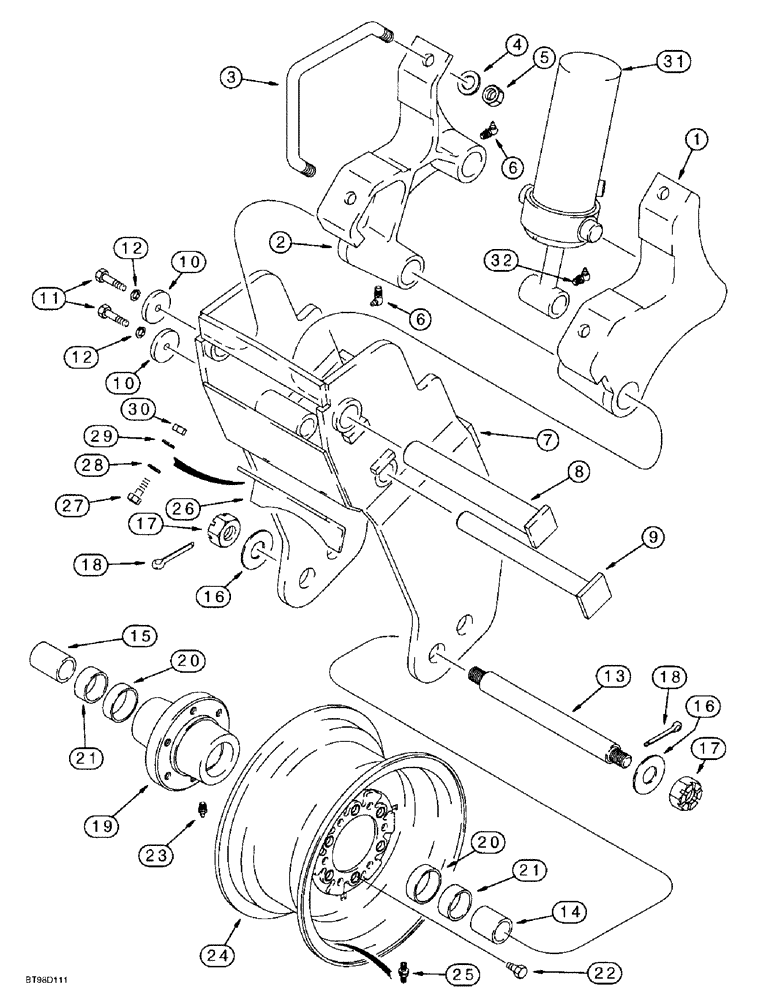

Запчасти Case IH 955 (9A-092) - CARRYING WHEELS, WITH 20 INCH LONG AXLE, USED WITH 4, 4-1/2, 4-3/4 INCH ID CYLINDERS (09) - CHASSIS/ATTACHMENTS

1

275685A1

BRACKET

- mounting, wheel and cylinder, right-hand

1шт.

2

275684A1

BRACKET

- mounting, wheel and cylinder, left-hand

1шт.

3

116039A1

WHEEL BOLT

BOLT - special, wheel bracket

2шт.

4

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

- flat, 15/16 x 1-3/4 x 1/8 inch, hardened, 15/16 x 2-1/4 x 11/64

4шт.

5

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

6

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper 90º, 1/4"-28 NPT x .75" lg, Drive

4шт.

7

249104A1

FRAME

MOUNT - wheel

1шт.

8

116040A1

PIN

- wheel mount

1шт.

9

116041A1

PIN

- wheel cylinder mounting

1шт.

10

231457A1

WASHER

- special, latch and wheel pivot pin retaining

2шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

13

249105A2

AXLE

- wheel, 20 inch long

1шт.

14

249102A1

SPACER

- 4-1/2 inch long, wheel axle

1шт.

15

230314A1

SPACER

- 5 inch long, wheel axle

1шт.

16

495-21106

WASHER,1"

- flat, 1-1/16 x 2-1/2 x 5/32 inch

2шт.

17

425-1316

NUT,1"-14, G5

NUT - hex, slotted, 1 inch NS

2шт.

18

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

118859A1

HUB ASSY.

HUB ASSEMBLY - wheel, Includes: Ref. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

20

453012R1

BEARING CUP

CUP - tapered roller bearing

2шт.

21

8050528

ROLLER BEARING

CONE - tapered roller bearing

2шт.

22

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT - guide wheel

6шт.

23

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

24

1277504C1

RIM

WHEEL - 15 (381) x 10 inch (254 mm) (purchase tire locally)

1шт.

25

810769C1

VALVE

- inflation, steel

1шт.

26

246631A2

SCRAPER

- tire

1шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

28

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

29

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

30

425-106

NUT,3/8"-16, Cl 5

2шт.

31

REF

INSTRUCTION

CYLINDER ASSEMBLY - carrying wheel, see Figures 8-108, 8-112 and 8-113A for cylinder assembly with correct ID

1шт.

For cylinder stops used with thIS cylinder, see Figure 9A-18.

1шт.

32

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.
