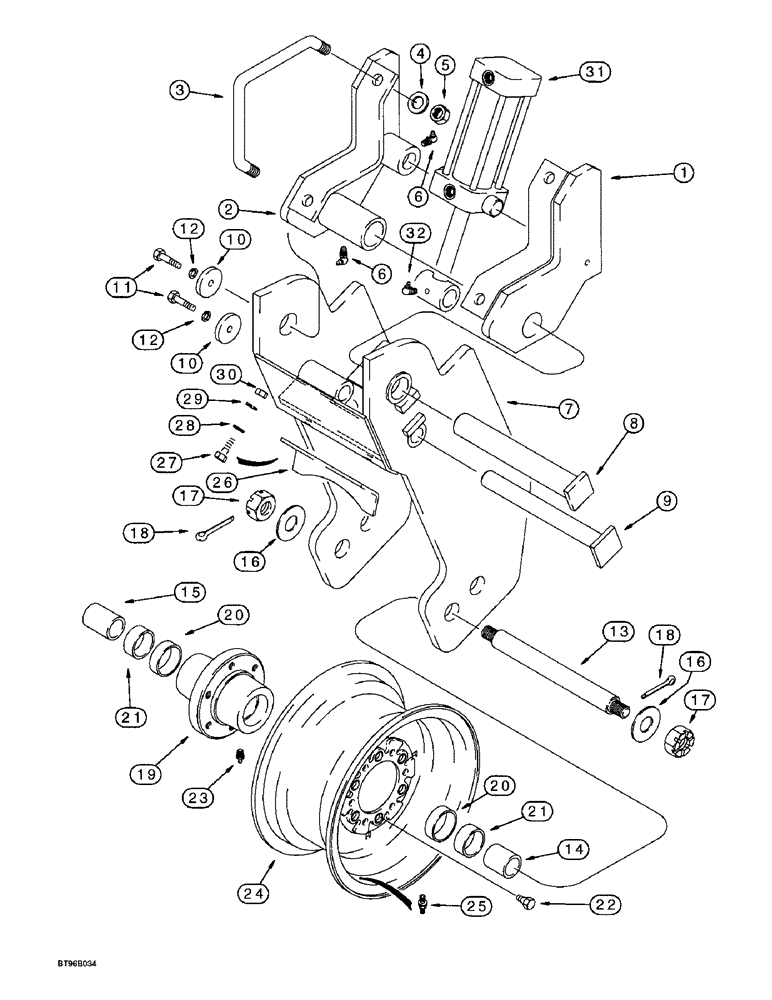

Запчасти Case IH 955 (9A-090) - CARRYING WHEELS, USED W/3-1/4" ID X 6-1/4" STROKE (TIE ROD TYPE) CYLINDER (09) - CHASSIS/ATTACHMENTS

1

116075A1

MOUNTING PARTS

BRACKET - mounting, wheel and cylinder, right-hand

1шт.

2

116076A1

MOUNTING PARTS

BRACKET - mounting, wheel and cylinder, left-hand

1шт.

3

116039A1

WHEEL BOLT

BOLT - special, wheel bracket

2шт.

4

495-21094

WASHER,7/8"

- flat, 15/16 x 2-1/4 x 5/32 inch, 15/16 x 2-1/4 x 11/64

4шт.

5

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

4шт.

6

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper 90º, 1/4"-28 NPT x .75" lg, Drive

4шт.

7

182914A1

MOUNTING PARTS

MOUNT - wheel

1шт.

8

116040A1

PIN

- wheel mount

1шт.

9

116041A1

PIN

- wheel cylinder mounting

1шт.

10

116051A1

WASHER

- special, latch and wheel pivot pin

2шт.

11

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

13

182912A1

AXLE

- wheel, 16-9/16 inch long

1шт.

14

116037A1

SPACER

- wheel axle, 2-23/32 inch long

1шт.

Ref #14, for AFS order 339460A1.

1шт.

15

182911A1

SPACER

- wheel axle, 3-7/32 inch long

1шт.

Ref #15, for AFS order 338171A1. bj 4/7/99

1шт.

16

495-21106

WASHER,1"

- flat, 1-1/16 x 2-1/2 x 5/32 inch

2шт.

17

425-1316

NUT,1"-14, G5

NUT - hex, slotted, 1 inch NS

2шт.

18

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

118859A1

HUB ASSY.

HUB ASSEMBLY - wheel, Includes: Ref. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

HUB - wheel

1шт.

20

453012R1

BEARING CUP

CUP - tapered roller bearing

2шт.

21

8050528

ROLLER BEARING

CONE - tapered roller bearing

2шт.

22

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT - guide wheel

6шт.

23

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

24

A57879

RIM

WHEEL - 15 x 8 inch (Use with 11L-15 10 PR tire)

1шт.

25

810769C1

VALVE

- inflation, steel

1шт.

26

116042A2

SCRAPER

- tire

1шт.

27

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

28

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

29

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

30

425-106

NUT,3/8"-16, Cl 5

2шт.

31

113820A1

CYLINDER,Double Acting, 31.75mm Rod, 158.75mm Stroke

ASSEMBLY - 83 (3-1/4) ID x 159 mm (6-1/4 inch) stroke, carrying wheel (Parts list Figure 8-106)

1шт.

For wheel stops used with this cylinder, order 194271A1 Kit. It includes one each of the following sizes: 1 inch thick, 1-1/2 inch thick, 2 inch thick and 4-1/4 inch thick.

1шт.

32

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper, at cylinder 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.
