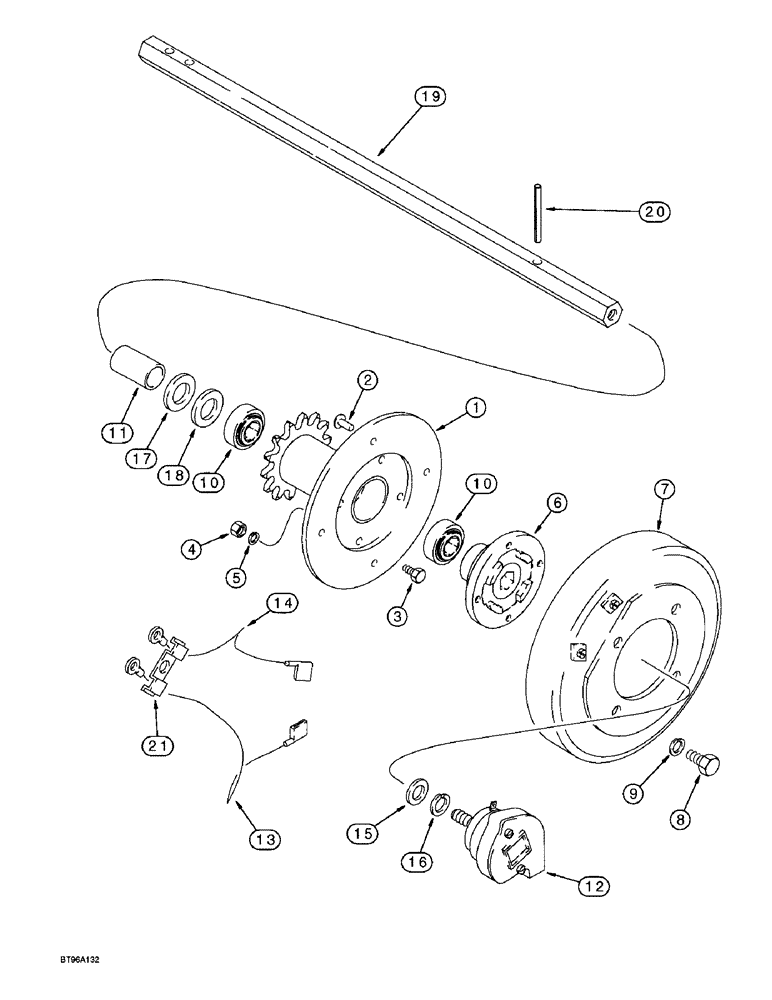

Запчасти Case IH 955 (9A-088) - ELECTRIC CLUTCH, 12 ROW NARROW - PARALLEL FRONT FOLD (09) - CHASSIS/ATTACHMENTS

102100A1

HUB,218.08mm OD

AND ARMATURE ASSEMBLY - electric clutch

2шт.

1

102223A1

HUB

- drive

1шт.

2

47-56

RIVET,FH, 5/16" x 3/8"

- flat head solid, 5/16 x 3/8 inch

4шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

4

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

102104A1

HUB

- clutch

2шт.

7

179861C93

MAGNET

- clutch

2шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

9

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

10

180302C91

BALL BEARING,22.28mm Hex x 52mm OD x 25.4mm W

BEARING - sprocket

4шт.

11

199315A1

SPACER

- clutch, 54 mm (2-1/8 inch) long

2шт.

12

91807C1

BRUSH HOLDER

HOLDER - brush

2шт.

13

1253726C1

ELECTRICAL WIRE

WIRE - brush holder, 152 mm (6 inch) long

2шт.

14

1253728C1

ELECTRICAL WIRE

WIRE - brush holder, 102 mm (4 inch) long

2шт.

15

495-81163

WASHER,17/32" x 1 1/2" x .120"

- flat, 17/32 x 1-1/2 x 7/64 inch

2шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

17

495-81068

WASHER,1 1/32" x 1 1/2" x .030"

- flat, 1-1/32 x 1-1/2 x 1/32 inch

8шт.

18

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

4шт.

19

199316A1

SHAFT

- clutch drive, 460 mm (18-1/8 inch) long

2шт.

20

38-31628

PIN,1/4" x 1 3/4", Coiled

3шт.

21

222680C1

CLIP

- wires

2шт.
