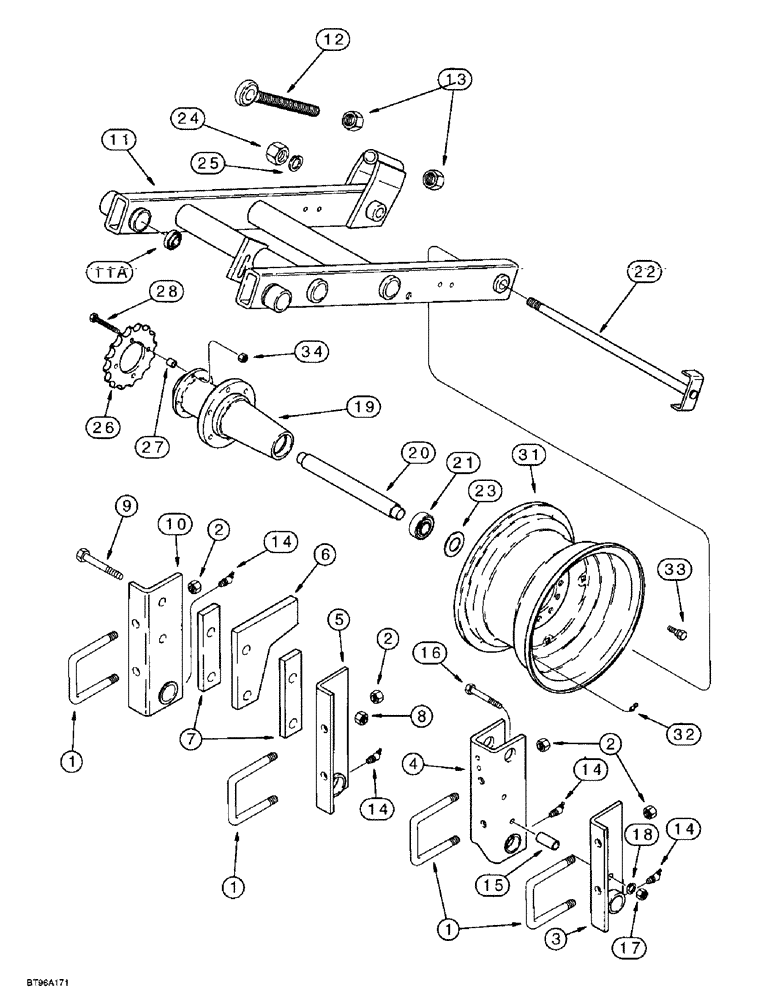

Запчасти Case IH 955 (9A-082) - DRIVE WHEELS AND MOUNTING, 12 ROW NARROW - PARALLEL FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

58152C2

U-BOLT,U, 1" - 8 x 231mm

- 1 inch NC

8шт.

2

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

16шт.

3

297929A1

SUPPORT

- drive wheel, right-hand

2шт.

4

297930A1

SUPPORT

- drive wheel and clutch, right-hand

2шт.

5

297938A1

SUPPORT

- drive wheel and cylinder, left-hand

2шт.

6

95735C1

ANCHOR

PLATE - cylinder anchor

2шт.

7

1973137C1

BAR

- cylinder anchor spacer

4шт.

8

429-1016

NUT,1"-8, G8

- hex, 1 inch NC, grade 8

4шт.

9

426-1680

BOLT,Hex, 1" - 8 x 5", Gr 8

- hex, 1 NC x 5 inch, grade 8

4шт.

10

297937A1

SUPPORT

- drive wheel, left-hand

2шт.

11

97659C3

FRAME

- drive wheel

2шт.

11a

134181C92

BALL BEARING,2.125" OD x 0.046"

- ball, 7/8 inch hex bore

2шт.

12

1973136C1

EYEBOLT

- cylinder mounting

2шт.

13

425-1020

NUT,1 1/4"-7, G5

- hex, 1-1/4 inch NC

4шт.

14

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch

8шт.

15

657114R1

SPACER,3/4" X-Strng Pipe x 2 3/8"

- 3/4 x 2-3/8 inch, special

4шт.

16

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

4шт.

17

425-1010

NUT,5/8"-11, G5

4шт.

18

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

19

100039C1

HUB

- wheel, drive

2шт.

20

100041C1

SPACER

- hub

2шт.

21

1973497C1

BALL BEARING,30mm ID x 62mm OD x 24mm W

BEARING - ball, drive wheel hub

4шт.

22

1973141C2

CENTER AXLE

AXLE - drive wheel

2шт.

23

495-81069

WASHER,1-1/32" ID x 1-1/2" OD x 3/50" Thk

- flat, 1-1/32 x 1-1/2 x 1/16 inch

4шт.

24

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

2шт.

25

492-11100

LOCK WASHER,1"

1"

2шт.

26

100040C1

DRIVEN SPROCKET

SPROCKET - 15 teeth, drive wheel hub

2шт.

27

1960298C1

SPACER

- sprocket

2шт.

28

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

8шт.

31

1277504C1

RIM

WHEEL - 15 (381) x 10 inch (254 mm) (For 12.5L x 15 tubeless 8 ply tire)

2шт.

32

810769C1

VALVE

- inflation, steel

2шт.

33

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

12шт.

34

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

4шт.
