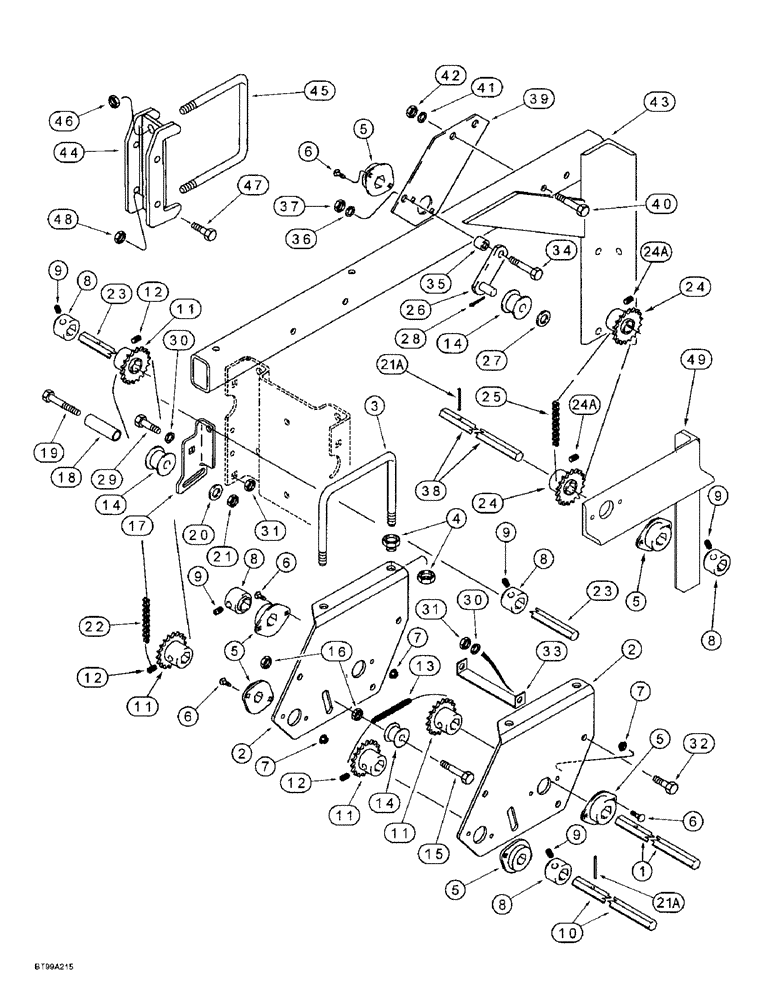

Запчасти Case IH 955 (9A-072) - MAIN DRIVE, LEFT-HAND WING FRAME, 12/23 SOLID ROW CROP - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

305089A1

SHAFT

- drive, hex, 22 (7/8) x 620 mm (24-7/16 inch) long, clutch driven, outer

1шт.

See Figure 9A-80 for drive wheel clutch parts.

1шт.

2

222629A2

BRACKET

- support, jackshaft drive

2шт.

3

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

2шт.

4

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC

4шт.

5

134158C92

BALL BEARING,22.5mm ID

- ball, hex, sealed, 7/8 inch

6шт.

6

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

12шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

12шт.

8

141572C2

COLLAR

HUB - sprocket, 7/8 inch hex

5шт.

9

483-15012

SET SCREW,Hex Soc, 1/2"-13 x 3/4"

SCREW - set, hex socket headless, 1/2 NC x 3/4 inch, cup point

5шт.

10

305086A1

SHAFT

- drive, hex, 22 (7/8) x 335 mm (13-3/16 inch) long, jackshaft

1шт.

11

103681A1

SPROCKET

- 18 teeth, chain drive

4шт.

12

483-15012

SET SCREW,Hex Soc, 1/2"-13 x 3/4"

SCREW - set, hex socket headless, 1/2 NC x 3/4 inch, cup point

4шт.

13

238828A2

CHAIN (AG)

CHAIN - clutch shaft to jackshaft, use 47 links from 1790D bulk chain and (1) 241-1314 connecting link, see below

1шт.

14

1277726C1

ROLLER,48mm OD x 34mm L

- idler, jackshaft chain

3шт.

15

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

1шт.

16

425-1410

JAM NUT,Jam, 5/8"-11, G5

- hex, jam, 5/8 inch NC

2шт.

17

302457A1

BRACKET

- mounting, idler

1шт.

18

302500A1

BUSHING

- idler roller

1шт.

19

413-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

- hex, 7/16 NC x 3-3/4 inch

1шт.

20

496-81010

WASHER

- flat, 15/32 x 1 x 7/64 inch, hardened

3шт.

21

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16 inch NC

1шт.

21a

38-31628

PIN,1/4" x 1 3/4", Coiled

2шт.

22

238824A2

CHAIN (AG)

CHAIN - jackshaft to row unit shaft, use 57 links from 1790D bulk chain and (1) 241-1314 connecting link

1шт.

23

178497A1

SHAFT

- drive, hex, 22 (7/8) x 2450 mm (96-1/2 inch) long, row units

1шт.

24

330081A1

SPROCKET ASSY.

SPROCKET - 24 teeth, upper jackshaft

2шт.

24a

483-15012

SET SCREW,Hex Soc, 1/2"-13 x 3/4"

SCREW - set, hex socket headless, 1/2 NC x 3/4 inch, cup point

2шт.

25

238830A2

CHAIN (AG)

CHAIN - drive, use 73 links from 1790D bulk chain, (1) 241-1314 connecting link and (1) 241-1714 offset link

1шт.

26

113509A1

FRONT IDLER

IDLER - chain, single roller

1шт.

27

495-81178

WASHER,21/32" x 1 1/8" x .048"

- flat, 21/32 x 1-1/8 x 3/64 inch

1шт.

28

432-1216

COTTER PIN,3/16" x 1"

1шт.

29

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

5шт.

31

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

5шт.

32

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

33

241079A2

BRACKET

BRACE - support bracket

2шт.

34

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

35

600179R1

SPACER,13.9mm ID x 21.34mm OD x 14.3mm L

1шт.

36

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

37

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

1790D

CHAIN (AG)

CHAIN - bulk, 10 foot roll

1шт.

241-1314

CHAIN LINK

LINK - connecting, single pitch, No. 40, 1/2 inch pitch

1шт.

38

135382A1

BAR

SHAFT - drive, hex, 22 (7/8) x 1440 mm (56-11/16 inch) long, upper jackshaft, Serial Range: transmission-module

1шт.

39

238827A1

BRACKET

- support, upper jackshaft

1шт.

If the dealer is looking for the bracket that replaced this part, which is two pieces of angle welded together, the P/N is 305124A1.

1шт.

40

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

41

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

42

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

43

220477A1

SUPPORT

- platform, right-hand

2шт.

44

298406A1

BRACKET

- transmission support

1шт.

45

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

1шт.

46

425-1010

NUT,5/8"-11, G5

2шт.

47

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

4шт.

48

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

49

305124A1

SUPPORT

- drive

1шт.
