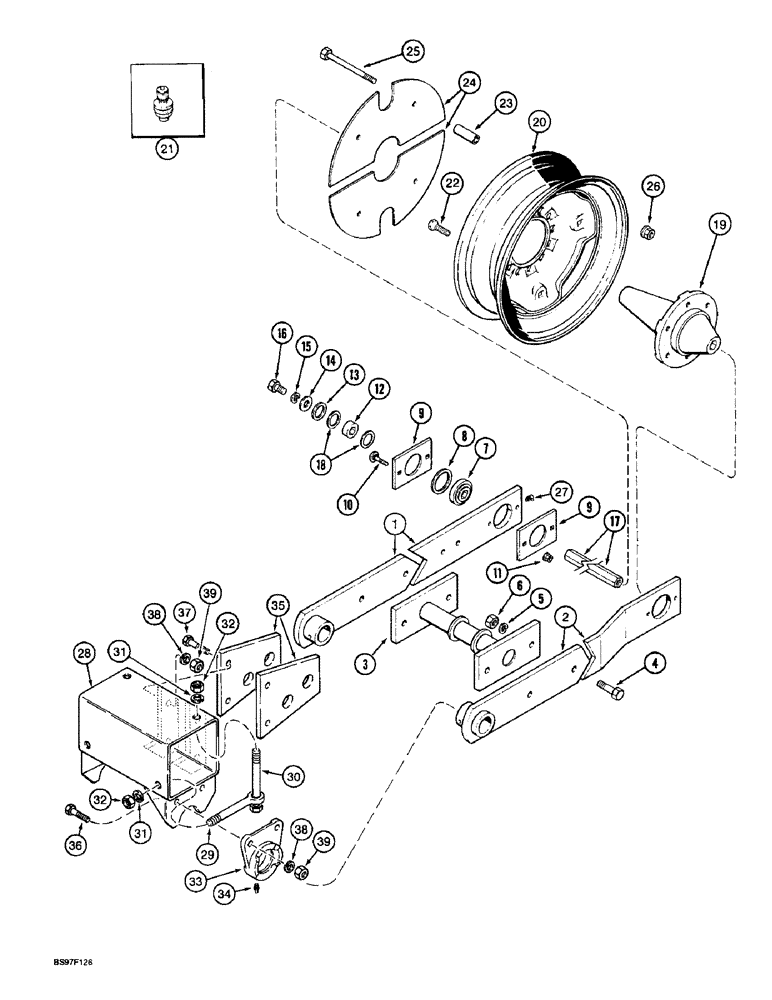

Запчасти Case IH 955 (9A-062) - DRIVE/CARRYING WHEELS, 8 ROW WIDE AND 12 ROW NARROW - VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

91247C2

RAIL

- wheel, straight, outer

1шт.

2

91254C2

RAIL

- wheel, offset, inner

1шт.

3

91242C2

CABLE TIE

TIE - wheel rail

1шт.

4

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

4шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

425-1010

NUT,5/8"-11, G5

4шт.

7

203389C91

BALL BEARING,25.43mm Hex x 62mm OD x 24mm W

BEARING - ball, axle bar

2шт.

8

1279743C1

WASHER

WASHER - bearing spacer

2шт.

9

1250724C1

BAR

BRACKET - bearing

4шт.

10

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT - carriage, 3/8 NC x 1-3/4 inch

4шт.

11

231-5146

FLANGE NUT,3/8"-16

4шт.

12

90376C2

SPACER

- sprocket

1шт.

13

149356C2

SPACER

- axle (used in place of sprocket)

1шт.

14

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

15

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

16

1345045C1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

BOLT - special

2шт.

17

90341C3

AXLE

BAR - axle wheel, 333 mm (13-1/8 inch) long

1шт.

18

495-81189

WASHER,1.16" ID x 1.75" OD x 0.03" Thk

- flat, 1-5/32 x 1-3/4 x 1/32 inch

1шт.

19

90343C1

HUB

- wheel

1шт.

20

481344R91

WHEEL

- 356 (14) x 203 mm (8 inch)

1шт.

21

810768C1

VALVE

- inflation

1шт.

22

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

6шт.

23

1333828C2

SPACER

- 79 mm (3-1/8 inch) long

4шт.

23

1333829C1

SPACER

- 95 mm (3-3/4 inch) long

4шт.

24

1333824C1

COVER

- 14 inch wheel

4шт.

25

413-8128

BOLT,Hex, 1/2" - 13 x 8", Gr 5

- hex, 1/2 NC x 8 inch

4шт.

26

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

4шт.

27

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch, straight rail only

1шт.

28

100836A1

BRACKET

- wheel and cylinder mounting

1шт.

29

527200R2

EYEBOLT

- anchor, special

2шт.

30

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

- hex, 3/4 NC x 6-1/2 inch

2шт.

31

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

32

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

33

90345C3

BRACKET

- pivot, rail

2шт.

34

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

35

90338C4

LARGE PLATE

PLATE - cylinder mounting

2шт.

36

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

4шт.

37

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

4шт.

38

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

39

425-1010

NUT,5/8"-11, G5

8шт.
