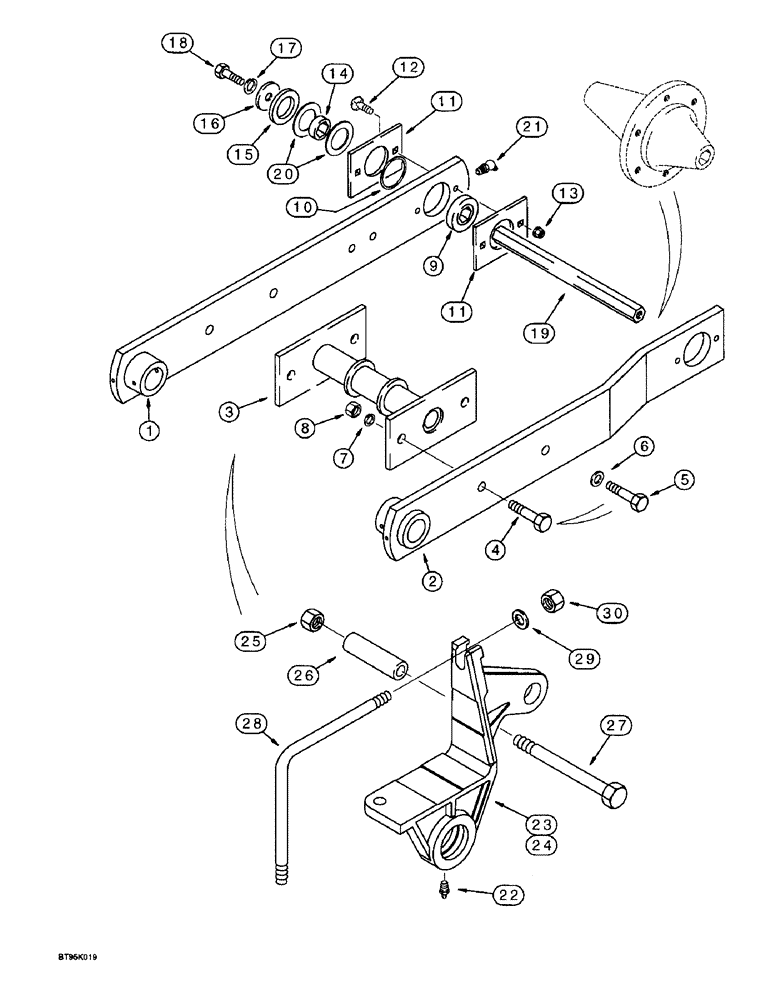

Запчасти Case IH 955 (9A-060) - DRIVE/CARRYING WHEEL MOUNTING, RIGID PLANTERS, WITH THREE-PIECE BOLTED WHEEL FRAME (09) - CHASSIS/ATTACHMENTS

1

91247C2

RAIL

- wheel, straight, outer

1шт.

See Figure 9A-61A for one-piece welded wheel mounting frame.

1шт.

2

91254C2

RAIL

- wheel, offset, inner

1шт.

See Figure 9A-61A for one-piece welded wheel mounting frame.

1шт.

3

91242C2

CABLE TIE

TIE - wheel rail

1шт.

See Figure 9A-61A for one-piece welded wheel mounting frame.

1шт.

4

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch

1шт.

5

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

1шт.

6

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

8

425-1010

NUT,5/8"-11, G5

4шт.

9

128280A1

BALL BEARING,25.43mm Hex x 62.12mm OD x 24mm W

BEARING - ball, axle bar

2шт.

10

1279743C1

WASHER

WASHER - bearing spacer

2шт.

11

1250724C1

BAR

BRACKET - bearing

4шт.

12

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT - carriage, 3/8 NC x 1-3/4 inch

4шт.

13

231-5146

FLANGE NUT,3/8"-16

4шт.

14

90376C2

SPACER

- sprocket

1шт.

15

149356C2

SPACER

- axle (Used in place of sprocket when used for carrying wheel application)

1шт.

16

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

2шт.

17

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

18

1345045C1

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2"

BOLT - special

2шт.

19

90341C3

AXLE

BAR - axle wheel, 333 mm (13-1/8 inch) long

1шт.

20

495-81189

WASHER,1.16" ID x 1.75" OD x 0.03" Thk

- flat, 1-5/32 x 1-3/4 x 1/32 inch

6шт.

21

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch

1шт.

22

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 9/16 inch

2шт.

23

95832C3

BRACKET

- wheel and cylinder mounting. left-hand

1шт.

24

95833C3

BRACKET

- wheel and cylinder mounting, right-hand

1шт.

25

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

1шт.

26

95911C2

TUBE

SPACER - wheel bracket tie

1шт.

27

413-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 5

- hex, 5/8 NC x 7 inch

1шт.

28

141025C3

BOLT

L-BOLT - 3/4 inch NC

2шт.

29

496-31081

WASHER,13/16" x 1 1/2" x .219", HDN

- flat, 13/16 x 1-1/2 x 7/32 inch, hardened

2шт.

30

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.
