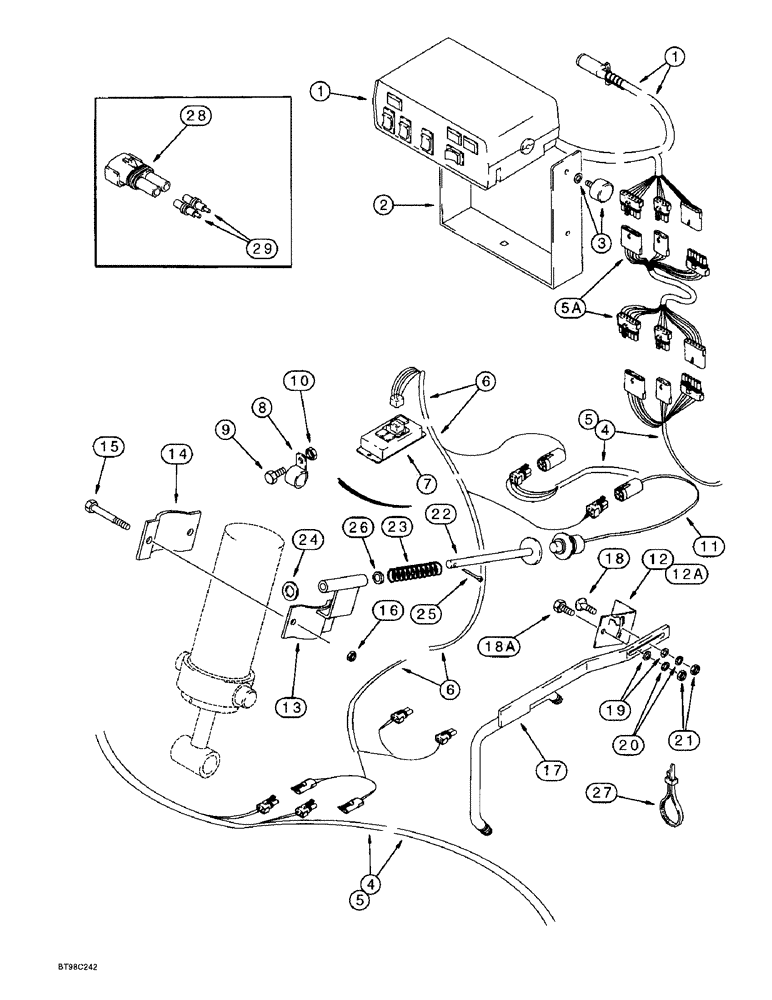

Запчасти Case IH 955 (4-15C[C]) - PLANTER CONTROL SYSTEM, 12 ROW WIDE, FRONT FOLD, 9/97 AND AFTER, PIN DBC0001277 (04) - ELECTRICAL SYSTEMS

1

115513A2

CONTROL

ASSEMBLY - planter (Parts list Figure 4-18), Start Serial: DBC0001277

1шт.

2

1267828C1

BRACKET

- mounting, planter control, Start Serial: DBC0001277

1шт.

3

1336002C1

KNOB

KIT - knob, includes 2 knobs and 2 washers, Start Serial: DBC0001277

1шт.

4

115512A3

HARNESS

- main, planter control (12 row narrow, 12 row wide and 16 row narrow), Start Serial: DBC0001277

1шт.

5

243199A2

HARNESS

- main, planter control (24 row narrow), Start Serial: DBC0001277

1шт.

5a

294478A1

HARNESS

- extension, planter control (24 row narrow), Start Serial: DBC0001277

1шт.

6

237456A3

HARNESS

- marker switch, time delay, Start Serial: DBC0001277

1шт.

7

251441A1

BOARD, PRINTED CIRCU

MODULE - marker, time delay, Start Serial: DBC0001277

1шт.

8

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Harness 1/2", Insul, 3/8" Bolt, Start Serial: DBC0001277

2шт.

9

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, Start Serial: DBC0001277

2шт.

10

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC, Start Serial: DBC0001277

2шт.

11

314886A1

SWITCH

- marker alternating, Start Serial: DBC0001277

1шт.

12

298751A1

BRACKET

- mounting, marker switch, Start Serial: DBC0001277

1шт.

13

301033A2

CLAMP

- marker support, rod mounting, used with 3-1/4 inch ID cylinder, Start Serial: DBC0001277

1шт.

13

302742A2

CLAMP

- marker support, rod mounting, used with 4-1/4 inch ID cylinder, Start Serial: DBC0001277

1шт.

14

301035A1

CLAMP

- marker support, cylinder, used with 3-1/4 inch ID cylinder, Start Serial: DBC0001277

1шт.

14

302743A2

CLAMP - marker support, cylinder, used with 4-1/4 inch ID cylinder, Start Serial: DBC0001277

1шт.

15

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch, used with 3-1/4 inch ID cylinder, Start Serial: DBC0001277

2шт.

15

413-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5

- hex, 1/2 NC x 4-1/2 inch, used with 4-1/4 inch ID cylinder, Start Serial: DBC0001277

2шт.

16

231-4248

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB, Start Serial: DBC0001277

2шт.

17

246246A1

BRACKET

- mounting, marker switch, at wheel frame, Start Serial: DBC0001277

1шт.

18

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, Start Serial: DBC0001277

1шт.

18a

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Start Serial: DBC0001277

1шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE, Start Serial: DBC0001277

2шт.

20

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8", Start Serial: DBC0001277

2шт.

21

425-106

NUT,3/8"-16, Cl 5

, Start Serial: DBC0001277

2шт.

22

238001A1

ROD ASSY.

ROD - actuating, marker switch, Start Serial: DBC0001277

1шт.

23

16046D

SPRING

- actuating rod, Start Serial: DBC0001277

1шт.

24

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE, Start Serial: DBC0001277

1шт.

25

432-1216

COTTER PIN,3/16" x 1"

, Start Serial: DBC0001277

1шт.

26

7579T

CUP WASHER

- spring, Start Serial: DBC0001277

1шт.

27

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch, harness to bracket, Start Serial: DBC0001277

1шт.

28

245483C1

ELEC CONNECTOR,Male, 2 Pin

CONNECTOR - harness, female, used with 243199A2 harness, 24 row narrow, Start Serial: DBC0001277

6шт.

29

225127C1

PLUG

- connector, used with 243199A2 harness, 24 row narrow, Start Serial: DBC0001277

12шт.
