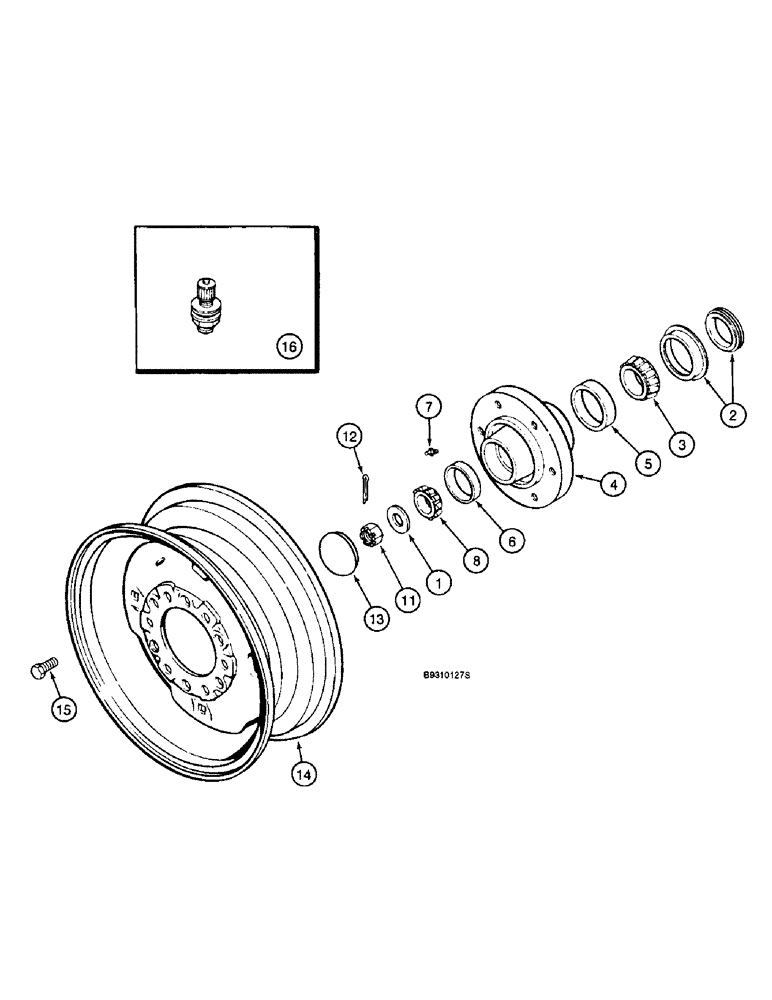

Запчасти Case IH 955 (9A-052) - ENDWISE TRANSPORT HUB AND WHEEL, 8 ROW NARROW - RIGID (09) - CHASSIS/ATTACHMENTS

1

469873R1

WASHER,23.01mm ID x 44.45mm OD x 3.05mm Thk

- flat, special, hardened

1шт.

2

606556R91

OIL SEAL

SEAL - oil, with sleeve

1шт.

3

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE - tapered roller bearing, 1-5/8 inch ID, inner

1шт.

4

606468R21

HUB

ASSEMBLY - wheel, 6 bolt

1шт.

5

663558R1

BEARING CUP

CUP - tapered roller bearing, 2-57/64 inch OD, inner

1шт.

6

651817R1

BEARING CUP

CUP - tapered roller bearing, outer

1шт.

7

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

8

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE - tapered roller bearing, outer

1шт.

11

70120D

SLOTTED NUT,7/8"-14

NUT - hex, slotted, special, 7/8 inch NC

1шт.

12

432-828

COTTER PIN,1/8" x 1 3/4"

PIN, SPLIT (COTTER), 1/8" x 1 3/4"

1шт.

13

663906R1

CAP

- wheel hub

1шт.

14

481344R91

WHEEL

- 356 (14) x 203 mm (8 inch)

1шт.

15

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

- hex conical, 1/2 NF x 1-5/32 inch

6шт.

16

810768C1

VALVE

- inflation

1шт.
