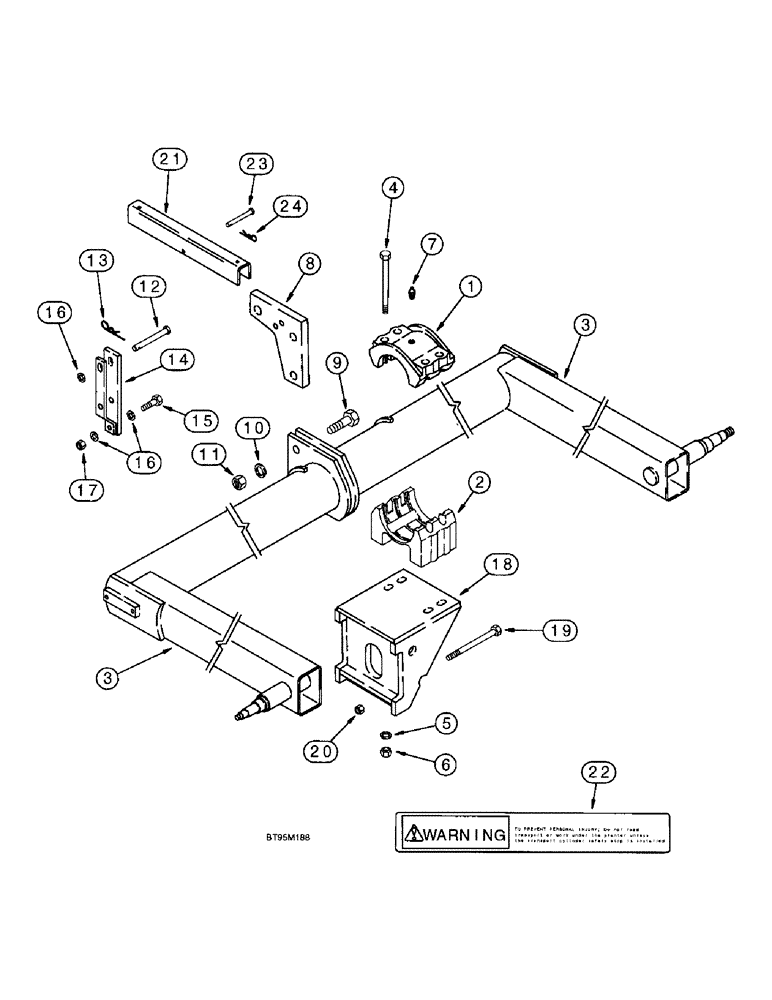

Запчасти Case IH 955 (9A-050) - ENDWISE TRANSPORT AXLE, 8 ROW NARROW - RIGID (09) - CHASSIS/ATTACHMENTS

1261284C1

BLOCK

ASSEMBLY - transport tube bearing

2шт.

1

NSS

NOT SOLD SEPARAT

BLOCK - tube bearing, upper

2шт.

2

NSS

NOT SOLD SEPARAT

BLOCK - tube bearing, lower

2шт.

3

91358C1

FRAME ASSY

AXLE - transport

1шт.

4

26-14160

BOLT,Hex, 7/8" - 9 x 10", Gr 8

- hex, 7/8 NC x 10 inch, grade 8

8шт.

5

492-11088

LOCK WASHER,7/8"

7/8"

8шт.

6

329-1014

NUT,7/8"-9, G8

8шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

8

95735C1

ANCHOR

PLATE - cylinder anchor

1шт.

9

326-1652

BOLT,Hex, 1" - 8 x 3-1/4", Gr 8

2шт.

10

492-11100

LOCK WASHER,1"

1"

2шт.

11

329-1016

NUT,1"-8, G8

2шт.

12

147404C1

PIN,12.7mm OD x 83mm L

- clevis, 1/2 x 3-1/4 inch

1шт.

13

1978738C1

HAIR PIN COTTER

3/16"

1шт.

14

97776C1

LOCK ASSY

LOCK - transport

1шт.

15

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

1шт.

16

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

3шт.

17

231-4218

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

1шт.

18

91279C1

BRACKET

- transport

2шт.

19

25924R1

BOLT,Hex, 3/4" - 10 x 9 1/2", Gr 8

- hex, 3/4 NC x 9-1/2 inch, grade 8

4шт.

20

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

21

1254284C91

STOP

- cylinder, includes decal

1шт.

22

1254230C2

WARNING DECAL

DECAL - Warning, to prevent personal injury

1шт.

23

22775R1

PIN

- headed, 3/8 x 2-1/2 inch

1шт.

24

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.
