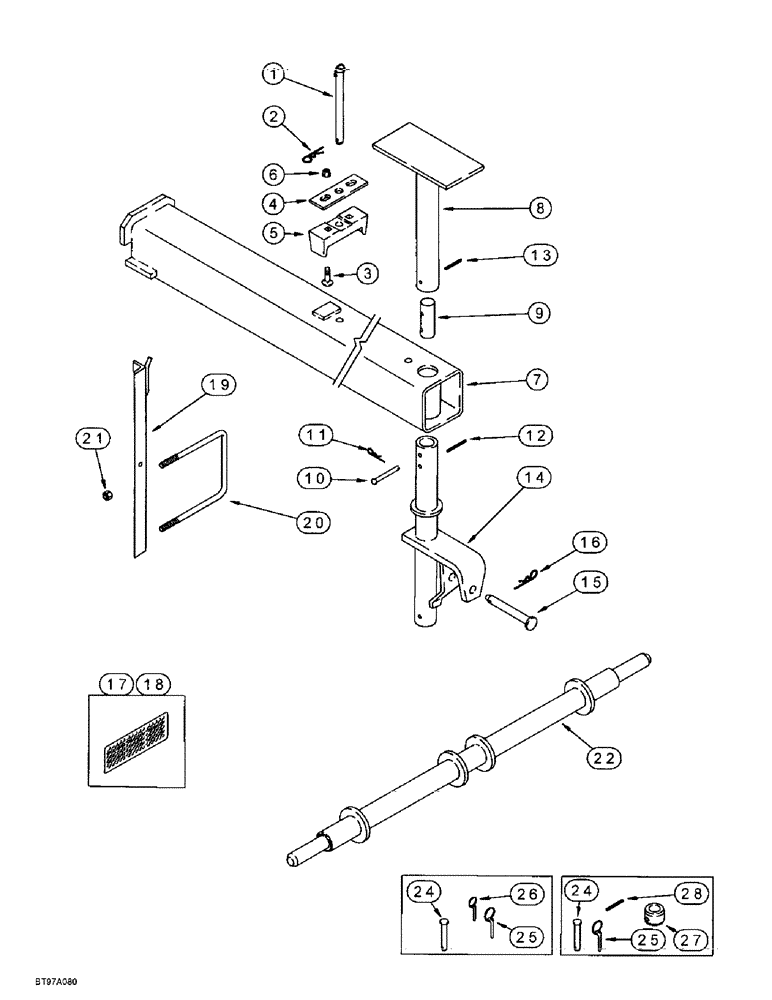

Запчасти Case IH 955 (9A-048) - ENDWISE TRANSPORT HITCH AND STAND, 8 ROW NARROW - RIGID (09) - CHASSIS/ATTACHMENTS

1

147460C1

PIN,19.05mm OD x 254.26mm L

- hitch, 3/4 inch

1шт.

2

1970957C1

SPRING

PIN - cotter, hair, 3/16 inch

1шт.

3

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch

2шт.

4

149431C2

BAR

SPACER - bar, stop block

1шт.

5

1250714C1

BLOCK

- stop

1шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

7

141414C3

TUBE,153 mm Length

- transport hitch

1шт.

8

149405C1

STAND

- parking

1шт.

9

149407C1

ROD

- support stand

1шт.

10

22775R1

PIN

- headed, 3/8 x 2-1/2 inch

1шт.

11

586591R1

COTTER PIN

PIN - cotter, hair, 1/8 inch

1шт.

12

38-32448

PIN,3/8" x 3", Coiled

1шт.

13

38-32432

PIN,3/8" x 2", Coiled

1шт.

14

149408C2

PIVOT

- clevis

1шт.

15

542319R1

PIN

- headed, 3/4 x 6 inch

1шт.

16

1978738C1

HAIR PIN COTTER

3/16"

1шт.

17

1284374C1

REFLECTOR,Reflector Red

- red

2шт.

18

1284365C2

REFLECTOR

- amber

1шт.

19

144787C1

SUPPORT

- hose

1шт.

20

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

1шт.

21

425-1010

NUT,5/8"-11, G5

2шт.

22

57233C1

SPINDLE

- spreader, Category III

1шт.

23

483572R92

SPINDLE

- spreader, Category II, not shown

1шт.

24

141292C2

PIN,19.05mm OD x 100mm L

- hitch, 3/4 inch diameter

2шт.

25

A33497

LINCH PIN,4.76mm OD Pin

PIN - lock

2шт.

26

A30338

PIN

- lock, used with 483572R92 spreader bar

2шт.

27

401233R1

COLLAR

- thrust, used with 57233C1 spreader bar

2шт.

28

38-33240

PIN,1/2" x 2 1/2", Coiled

Used with 57233C1 spreader bar 1/2" x 2 1/2", Coiled

2шт.
