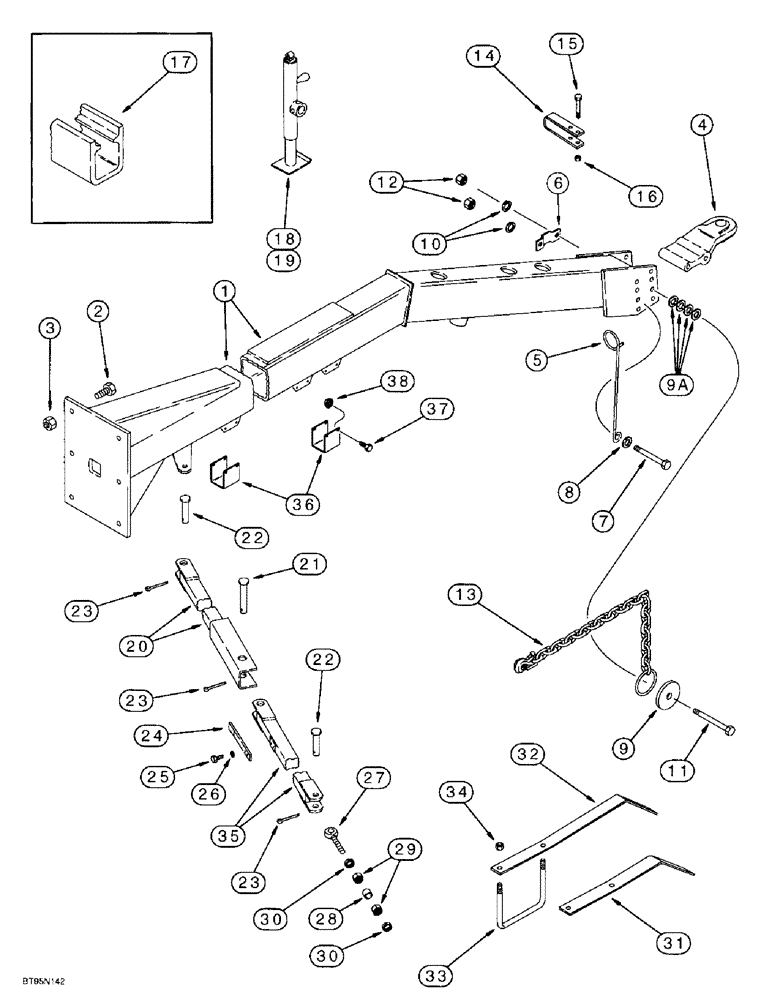

Запчасти Case IH 955 (9A-042) - TONGUE AND HITCH, 12 ROW NARROW - PARALLEL FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

235877A2

TOW BAR

TONGUE - hitch

1шт.

2

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- hex, 3/8 NC x 2-3/4 inch

6шт.

3

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

6шт.

4

1973237C1

TOW BAR

HITCH - tougue

1шт.

5

1279237C1

SUPPORT

- hose

1шт.

5a

137098C1

SUPPORT

BRACKET - pump mounting

1шт.

6

426-12144

BOLT,Hex, 3/4" - 10 x 9", Gr 8

- hex, 3/4 NC x 9 inch, grade 8

1шт.

7

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

8

495-11081

WASHER,3/4", SAE

1шт.

9

1969255C1

WASHER

- flat, 13/16 x 3-1/2 x 3/8 inch, special

1шт.

9a

396-41081

WASHER,20.63mm ID x 44.45mm OD x 5.56mm Thk

- flat, 13/16 x 1-3/4 x 7/32 inch hardened

4шт.

10

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

11

426-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 8

- hex, 3/4 x 10 inch, grade 8

1шт.

12

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

13

63506C3

CHAIN (AG)

CHAIN - hitch, 3/8 link x 59-7/64 inch

1шт.

14

1279163C1

CLEVIS COUPLING

CLEVIS - chain

1шт.

15

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

16

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

1шт.

17

96088C1

SEAL

TRIM - tongue

3шт.

18

121558A1

JACK

- hitch, standard (if used)

1шт.

19

1973399C1

JACK

- hitch, 7000 pound rating, heavy (if used)

1шт.

20

1973241C1

TUBE

- front tension

2шт.

21

439-52080

HEADED PIN,1 1/4" x 5"

PIN - headed, 1-1/4 x 5 inch

2шт.

22

439-52064

HEADED PIN,1 1/4" x 4"

PIN - headed, 1-1/4 x 4 inch

4шт.

23

432-2032

COTTER PIN,5/16" x 2"

Pin, Split (Cotter), 5/16" x 2"

6шт.

24

1980764C1

SPRING

- tension

2шт.

25

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

4шт.

26

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

27

1973136C1

EYEBOLT

- tension tube

2шт.

28

1986188C1

SPACER

- pipe

2шт.

29

425-1020

NUT,1 1/4"-7, G5

- hex, 1-1/4 inch NC

4шт.

30

425-1420

JAM NUT,Jam, 1 1/4"-7, G5

- hex, jam, 1-1/4 inch NC

4шт.

31

1980796C1

SUPPORT TUBE

BRACKET - tube support, short

1шт.

32

1344891C1

SUPPORT TUBE,767.74 mm Length

BRACKET - tube support, long

1шт.

33

1250813C1

U-BOLT

- 5/8 inch NC, 7 x 7 inch

2шт.

34

425-1010

NUT,5/8"-11, G5

4шт.

35

1973245C1

TUBE

- rear tension

2шт.

36

199931A1

CHANNEL

STOP - tire, at tongue

2шт.

37

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

8шт.

38

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.
