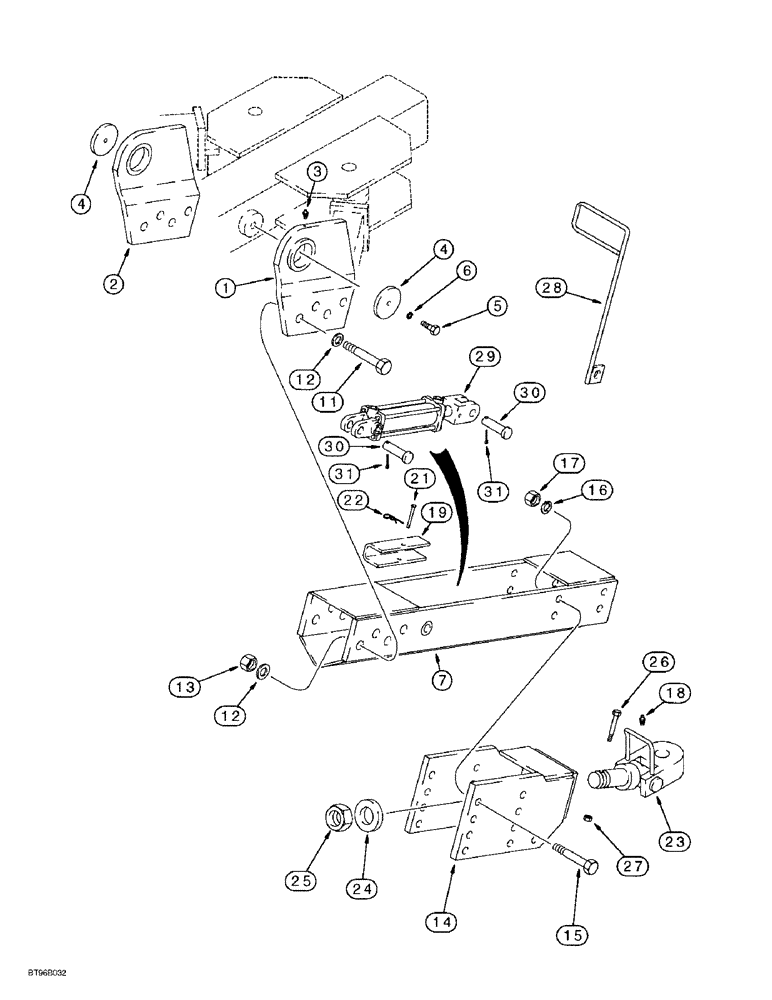

Запчасти Case IH 955 (9A-038[A]) - LOWER TONGUE HITCH, 12 ROW NARROW - FRONT FOLD, ALL PLANTERS BUILT TO AUG 97 AND SEPT 97 & AFTER (09) - CHASSIS/ATTACHMENTS

1

133204A1

PLATE ASSY.

PLATE - tongue hitch pivot, right-hand

1шт.

2

133206A1

PLATE

- tongue hitch pivot, left-hand

1шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

4

231456A1

WASHER

- special, hitch pivot plate

2шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

7

133207A1

HITCH ASSY

HITCH - lower tongue, Includes Ref. 8 - 10

1шт.

8

220321A1

WARNING DECAL

DECAL - Warning, read the operator's manual, not shown, see Figure 9F-114, item 5

2шт.

9

275229A1

DECAL

- Warning, to avoid the possibility of injury, not shown, see Figure 9F-114, item 6

2шт.

10

129652A1

DECAL

- Warning, avoid injury, if the planter is unfolded, not shown, Figure 9F-114, item 12

2шт.

11

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

8шт.

12

396-11106

WASHER,1 1/16" x 2" x .134", HDN

- flat, 1-1/16 x 2 x 1/8 inch, hardened

16шт.

13

231-41416

NUT,1"-8, GB

NUT - hex, self-locking, 1 inch NC

8шт.

14

116086A1

BRACKET

- hitch, adjustable

1шт.

15

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch

8шт.

16

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

17

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.

18

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

19

119843A2

STOP

- tongue cylinder, Includes: Ref. 20

1шт.

20

1254230C2

WARNING DECAL

DECAL - Warning, to prevent personal injury, not shown, see Figure 9F-114, item 4

1шт.

21

439-1544

HEADED PIN,5/16" x 2 3/4"

PIN - headed, 5/16 x 2-3/4 inch, grade 2

1шт.

22

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

1шт.

23

116047A3

TRAILER HITCH

SWIVEL - hitch clevis

1шт.

24

116049A1

WASHER

- special

1шт.

25

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT - heavy hex, slotted, 2 inch NC

1шт.

26

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

1шт.

27

230-4116

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

28

122955A1

GUIDE

BRACKET - guide

1шт.

29

1272147C91

CYLINDER

ASSEMBLY - 89 (3-1/2) ID x 203 mm (8 inch) stroke, lower tongue hitch, parts list page 8-129

1шт.

30

810751C1

PIN

- headed, 1 x 3-1/2 inch

2шт.

31

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

2шт.
