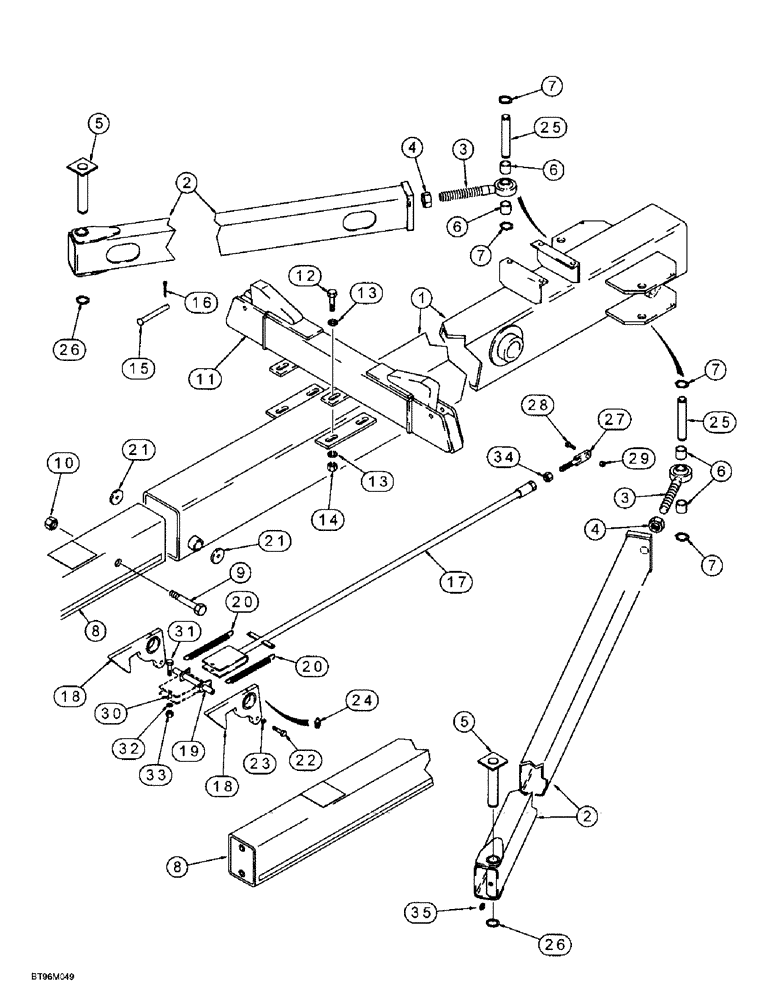

Запчасти Case IH 955 (9A-034) - TELESCOPING TONGUE, 12/23 SOLID ROW CROP - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

198904A1

TRAILER HITCH

TONGUE - outer

1шт.

2

310670A1

BRACE

- wing

2шт.

3

116043A1

CLEVIS,1-3/8" - 6

LINK - ball end

2шт.

4

25-1022

NUT,1 3/8"-6, G5

- hex, 1-3/8 inch NC

2шт.

5

116052A2

PIN ASSY.

PIN - 1-1/2 x 9 inch, wing brace

2шт.

6

119374A1

SPACER

BUSHING - front brace pin

4шт.

7

100-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

8

231464A1

TOW BAR

TONGUE - inner

1шт.

9

413-8124

BOLT,Hex, 1/2" - 13 x 7-3/4", Gr 5

- hex, 1/2 NC x 7-3/4 inch

2шт.

10

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.

11

198938A1

HEAD

RECEPTACLE - tongue and wing

1шт.

12

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

4шт.

13

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 9/64 inch

8шт.

14

230-41112

LOCK NUT,3/4"-10, GA

NUT - hex, self-locking, 3/4 inch NC

4шт.

15

439-5892

HEADED PIN,1/2" x 5 3/4", G5

PIN - headed, 1/2 x 5-3/4 inch

2шт.

16

1980543C1

HAIR PIN COTTER

PIN - cotter, hair, 5/32 inch diameter

2шт.

17

135900A2

ROD

- latch

1шт.

18

135902A1

LATCH

- tongue

2шт.

19

135901A2

GEAR WHEEL

ROD - tie

1шт.

20

650949C1

VALVE SPRING

SPRING - latch

2шт.

21

231457A1

WASHER

- special, latch and wheel pivot pin

2шт.

22

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

24

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

25

116044A1

PIN

- 1-1/4 x 8 inch, grooved, at link

2шт.

26

100-16150

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

2шт.

27

135899A1

EYEBOLT

TURNBUCKLE - latch rod

1шт.

28

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

1шт.

29

231-41410

NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

30

135912A1

SPACER

SLEEVE - rod, clevis end

1шт.

31

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

32

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

33

425-106

NUT,3/8"-16, Cl 5

1шт.

34

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

35

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.
