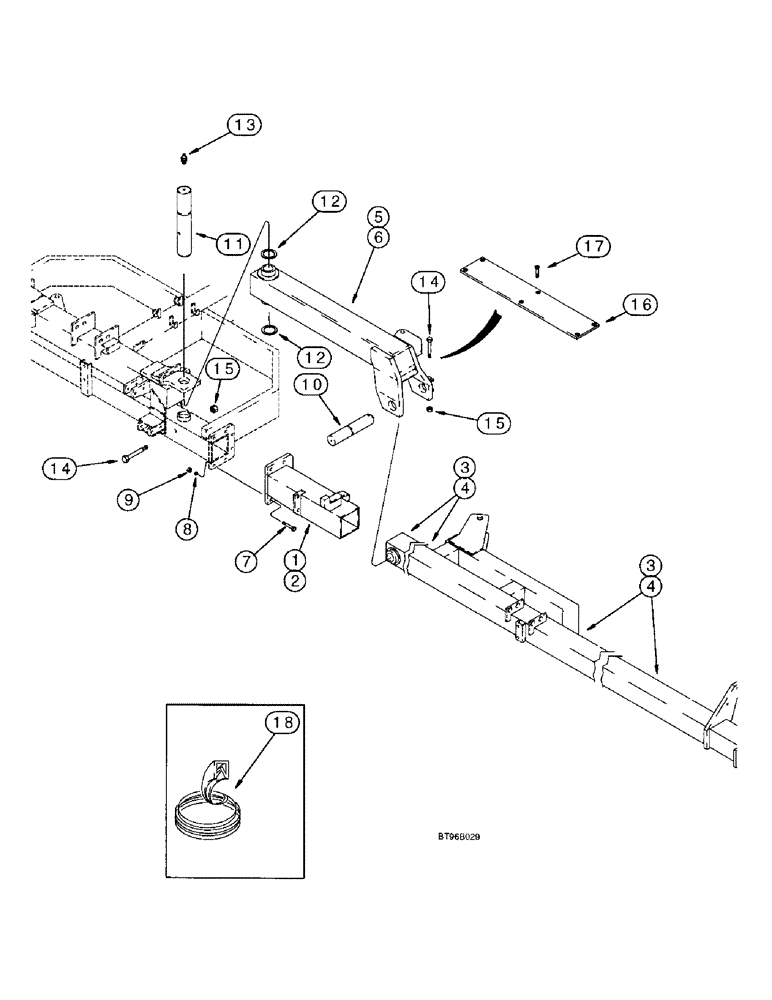

Запчасти Case IH 955 (9A-030) - WING FRAMES & HINGE, 24 ROW NARROW - FRONT FOLD, PLANTERS BUILT UP TO AUG 97 PRIOR TO PIN DBC0001114 (09) - CHASSIS/ATTACHMENTS

1

116063A1

FRAME ASSY

FRAME - extension, rear center, right-hand

1шт.

2

116064A1

FRAME ASSY

FRAME - extension, rear center, left-hand

1шт.

3

123693A1

FRAME ASSY

WING - main frame, right-hand

1шт.

4

123702A1

FRAME ASSY

WING - main frame, left-hand

1шт.

5

123694A1

HINGE

- main frame, right-hand

1шт.

6

123695A1

HINGE

- main frame, left-hand

1шт.

7

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch

12шт.

8

492-11075

LOCK WASHER,3/4"

3/4"

12шт.

9

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

12шт.

10

127846A1

PIN

- 3 x 15-11/16 inch, pivot, horizontal

2шт.

11

127845A1

PIN

- 3 x 20-3/4 inch, wing hinge, vertical

2шт.

12

127849A1

WASHER

- thrust

4шт.

13

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

14

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- hex, 1/2 NC x 4-1/2 inch, grade 8

4шт.

15

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

4шт.

16

116071A2

PLATE

PLATE - slide, plastic

2шт.

17

361-43816

HEX SOC SCREW,FLAT, 3/8" - 16 x 1"

BOLT - hex socket, 3/8 NC x 1 inch

1шт.

18

118861A1

LINING

TRIM - edge, 1/4 inch thick

11шт.
