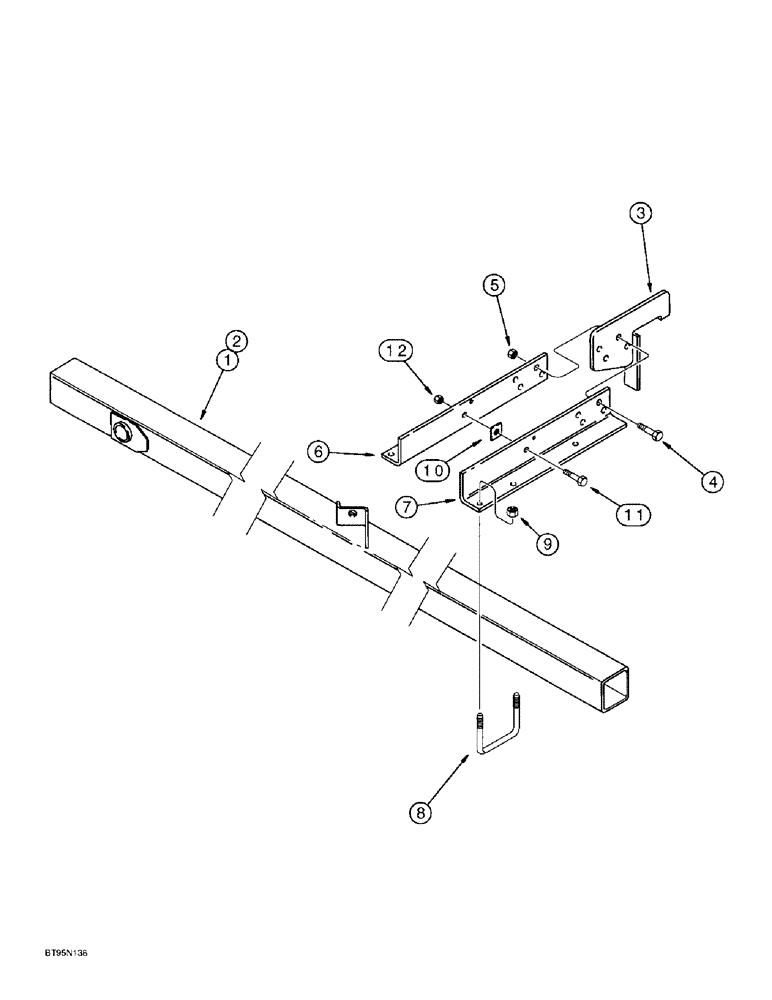

Запчасти Case IH 955 (9A-028) - WING FRAMES AND LATCH, 12 ROW NARROW - PARALLEL FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

137833A1

FRAME

- wing, right-hand

1шт.

2

137832A1

FRAME

- wing, left-hand, not shown

1шт.

3

1973360C2

LATCH

- wing frame

2шт.

4

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

4шт.

5

425-1016

NUT,1"-8, G5

- hex, 1 inch NC

4шт.

6

1973363C2

ANGLE

- latch support, left-hand

2шт.

7

1973364C2

ANGLE

- latch support, right-hand

2шт.

8

493841R1

U-BOLT

- 7/8 inch NC

4шт.

9

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

8шт.

10

1986084C1

BAR

SPACER - bar

4шт.

11

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

2шт.

12

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.
