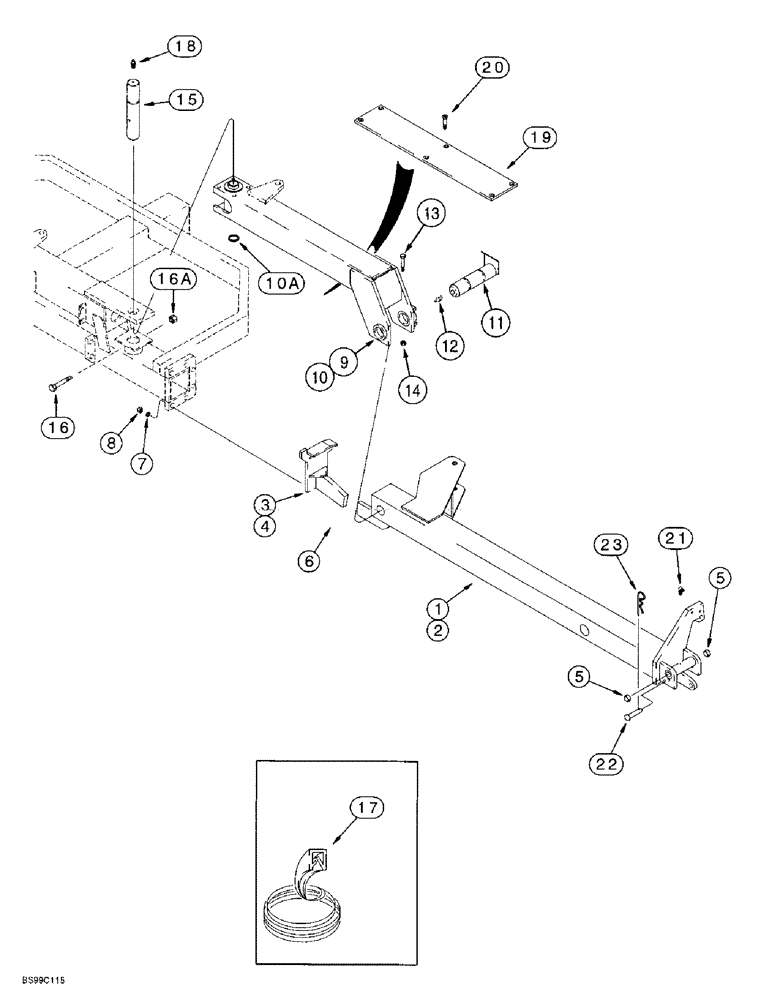

Запчасти Case IH 955 (9A-026) - WING FRAMES AND HINGE, 12/23 SOLID ROW CROP - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

198933A2

WELDED END

WING - main frame, right-hand

1шт.

2

198934A2

WELDED END

WING - main frame, left-hand

1шт.

3

253650A1

STOP

- wing, right-hand

1шт.

4

253649A1

STOP

- wing, left-hand

1шт.

5

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

- 1-1/2 ID x 1-3/4 OD x 3/4 inch, wing marker pivot

4шт.

6

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

8шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

8

425-1010

NUT,5/8"-11, G5

8шт.

9

198923A2

HINGE

- main frame, right-hand

1шт.

10

198922A2

HINGE

- main frame, left-hand

1шт.

10a

127849A1

WASHER

- thrust

2шт.

11

305073A1

PIN ASSY.

PIN - pivot, wing, horizontal

2шт.

12

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

13

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- hex, 1/2 NC x 4-1/2 inch, grade 8

2шт.

14

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.

15

127845A1

PIN

- 3 x 20-3/4 inch, vertical hinge

2шт.

See page 9A-19, items 15 and 16 for pin guard.

1шт.

16

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- hex, 1/2 NC x 4-1/2 inch, grade 8

2шт.

16a

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.

17

118861A1

LINING

TRIM - edge, 1/4 inch thick

9шт.

18

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

19

116071A2

PLATE

PLATE - slide, plastic

2шт.

20

361-43816

HEX SOC SCREW,FLAT, 3/8" - 16 x 1"

BOLT - hex socket, 3/8 NC x 1 inch

1шт.

21

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper 90º, 1/4"-28 NPT x .75" lg, Drive

2шт.

22

439-11044

HEADED PIN,5/8" x 2 3/4", G2

PIN - headed, 5/8 x 2-3/4 inch, grade 2

2шт.

23

1978738C1

HAIR PIN COTTER

3/16"

2шт.
