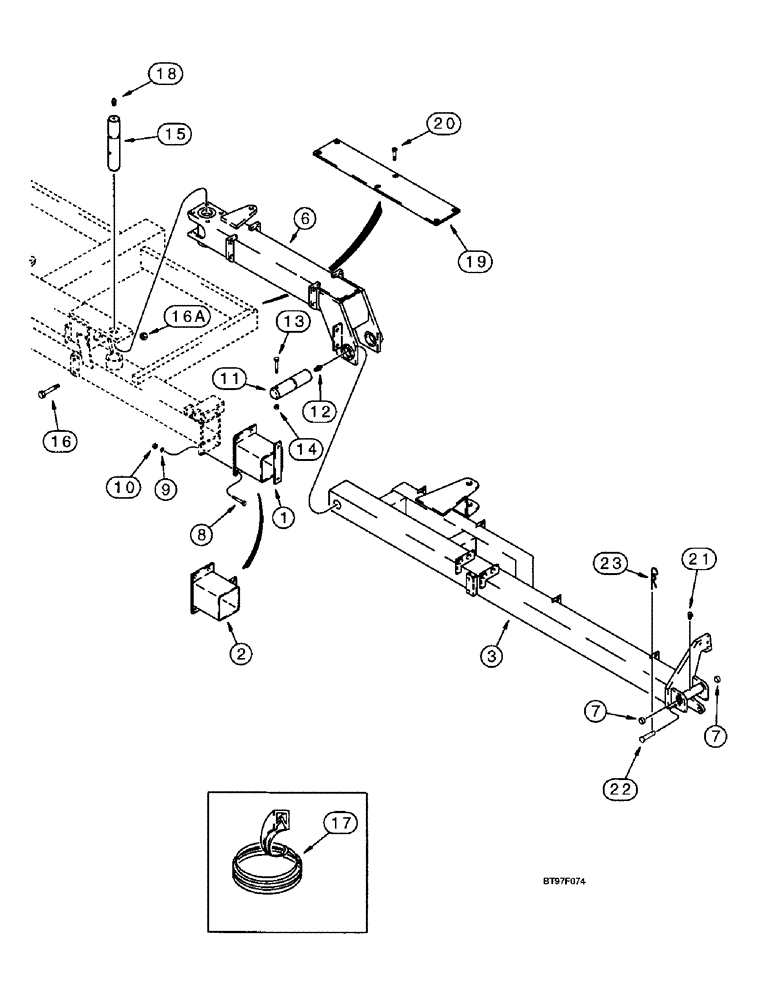

Запчасти Case IH 955 (9A-025[C]) - WING FRAMES & HINGE, BUILT SEPT 97 & AFTER, 12 ROW WIDE - FRONT FOLD (PIN DBC0001277) (09) - CHASSIS/ATTACHMENTS

2

275058A1

EXTENSION

FRAME - center extension, right-hand and left-hand, 12 row wide

2шт.

1

Not Used This Application

1шт.

3

178098A1

FRAME

WING - main frame, right-hand (12 row wide)

1шт.

4

178100A1

FRAME

WING - main frame, left-hand (12 row wide) (not shown)

1шт.

5

116083A1

HINGE

- main frame, left-hand (12 row wide ) (not shown)

1шт.

6

116082A1

HINGE

- main frame, right-hand (12 row wide)

1шт.

7

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

- 1-1/2 ID x 1-3/4 OD x 3/4 inch, wing marker pivot

4шт.

8

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

- hex, 3/4 NC x 3 inch

8шт.

9

492-11075

LOCK WASHER,3/4"

3/4"

8шт.

10

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

8шт.

11

116077A1

PIN

- pivot, wing, horizontal

2шт.

12

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

13

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- hex, 1/2 NC x 4-1/2 inch, grade 8

2шт.

14

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.

15

300226A1

PIN

- pivot, hinge, vertical

2шт.

See page 9A-17C, items 15 and 16 for pin guard.

1шт.

16

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- hex, 1/2 NC x 4-1/2 inch, grade 8

2шт.

16a

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.

17

118861A1

LINING

TRIM - edge, 1/4 inch thick

11шт.

18

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

19

116071A2

PLATE

PLATE - slide, plastic

2шт.

20

361-43816

HEX SOC SCREW,FLAT, 3/8" - 16 x 1"

BOLT - hex socket, 3/8 NC x 1 inch

1шт.

21

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

2шт.

22

439-11044

HEADED PIN,5/8" x 2 3/4", G2

PIN - headed, 5/8 x 2-3/4 inch, grade 2

2шт.

23

1978738C1

HAIR PIN COTTER

3/16"

2шт.
