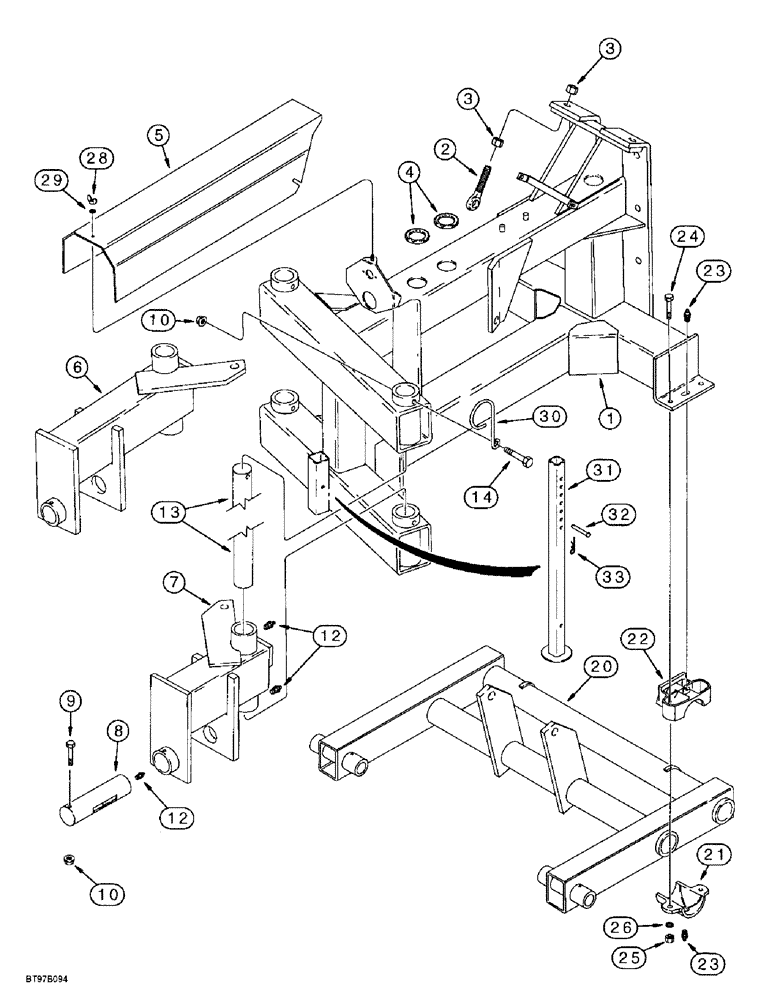

Запчасти Case IH 955 (9A-020) - CENTER MAIN AND CART WHEEL FRAMES, 12 ROW NARROW - PARALLEL FRONT FOLD (09) - CHASSIS/ATTACHMENTS

1

254246A2

FRAME

- main, center

1шт.

2

1973136C1

EYEBOLT

- main frame

2шт.

3

425-1020

NUT,1 1/4"-7, G5

- hex, 1-1/4 inch NC

4шт.

4

96088C1

SEAL

TRIM - tongue

3шт.

5

1980772C1

SHIELD

COVER - valve

1шт.

6

1973191C2

PIVOT

- wing frame, left-hand

1шт.

7

1973190C3

PIVOT

- wing frame, right-hand

1шт.

8

1973224C3

PIN

- wing frame, pivot

2шт.

9

326-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

2шт.

10

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

4шт.

12

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap 1/8 PT x 5/8 inch

6шт.

13

1973357C2

PIN,76.2mm OD x 856mm L

- pivot, center main frame

2шт.

14

326-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8

2шт.

20

1973158C2

FRAME

- cart wheel

1шт.

21

1284387C1

CAP

- wheel shaft bearing, upper

2шт.

22

96273C1

BEARING HALF

BEARING - wheel shaft, lower

2шт.

23

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

4шт.

24

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- hex, 3/4 NC x 4-3/4 inch

4шт.

25

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

26

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

28

129-419

WING NUT,5/16"-18

NUT - wing, 5/16 inch NC

3шт.

29

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

30

117104A3

ROD

SUPPORT - module seed tube

2шт.

31

234984A1

SUPPORT

STAND - support, main frame

1шт.

32

439-1856

HEADED PIN,1/2" x 3 1/2"

PIN - headed, 1/2 x 3-1/2 inch, grade 2

1шт.

33

1978738C1

HAIR PIN COTTER

3/16"

1шт.
