Запчасти Case IH 955 (9A-018) - CENTER MAIN FRAME, 12/23 SOLID ROW CROP - FRONT FOLD (09) - CHASSIS/ATTACHMENTS

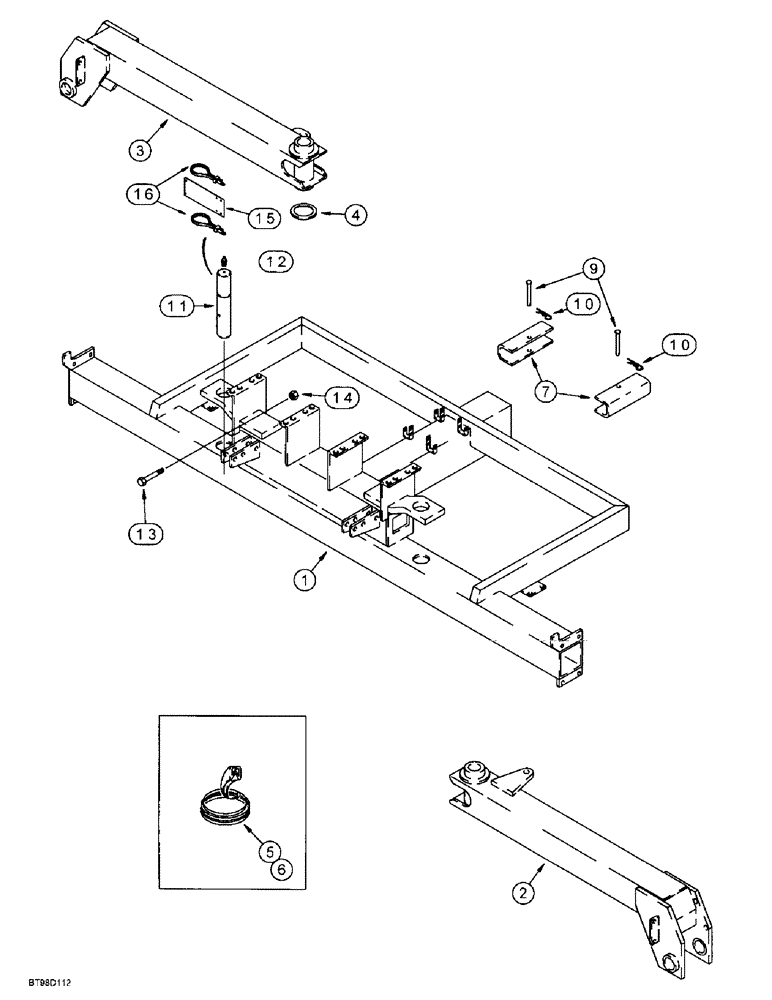

Схема запчастей Case IH 955 - (9A-018) - CENTER MAIN FRAME, 12/23 SOLID ROW CROP - FRONT FOLD (09) - CHASSIS/ATTACHMENTS
14
6
7
12
10
4
13
5
11
3
9
15
1
10
16
2

Артикул

Название

Примечание

Количество

1

198905A2

FRAME ASSY

FRAME - main, center

1шт.

2

198923A2

HINGE

- main frame, right-hand

1шт.

3

198922A2

HINGE

- main frame, left-hand

1шт.

4

127849A1

WASHER

- thrust

2шт.

5

118863A1

STRIP

TRIM - edge, 1/2 inch thick

6шт.

6

118862A1

STRIP

TRIM - edge, 3/8 inch thick

19шт.

7

307014A1

LOCK

STOP - wheel cylinder, 7-1/2 inch long, Includes: Ref. 8

4шт.

8

1254230C2

WARNING DECAL

DECAL - Warning, to prevent personal injury, not shown (See Figure 9F-114, item 4)

1шт.

9

439-1544

HEADED PIN,5/16" x 2 3/4"

PIN - headed, 5/16 x 2-3/4 inch, grade 2

4шт.

10

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

4шт.

11

127845A1

PIN

- 3 x 20-3/4 inch, vertical hinge

2шт.

12

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

2шт.

13

426-872

BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 8

- hex, 1/2 NC x 4-1/2 inch, grade 8

2шт.

14

230-4118

LOCK NUT,1/2"-13, GA

NUT - hex, self-locking, 1/2 inch NC

2шт.

15

305079A1

SHEET

GUARD - pin

2шт.

16

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch long

4шт.

Выбрано товаров: 16
