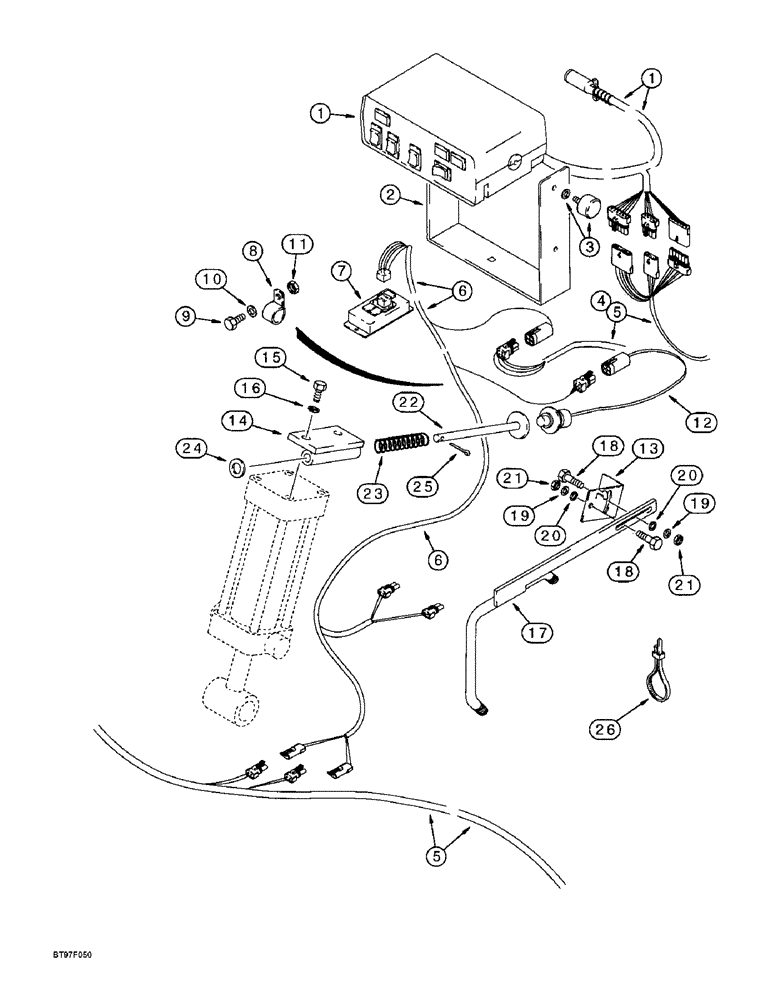

Запчасти Case IH 955 (4-15A[C]) - PLANTER CONTROL SYSTEM, 12 ROW WIDE, FRONT FOLD, 9/96 TO 8/97, THROUGH PIN DBC0001068 (04) - ELECTRICAL SYSTEMS

1

115513A2

CONTROL

ASSEMBLY - planter (Parts list Figure 4-18), Serial Range: -DBC0001068

1шт.

2

1267828C1

BRACKET

- mounting, planter control, Serial Range: -DBC0001068

1шт.

3

1336002C1

KNOB

KIT - knob, includes 2 knobs and 2 washers, Serial Range: -DBC0001068

1шт.

4

115512A3

HARNESS

- main, planter control (12 row narrow, 12 row wide and 16 row narrow), Serial Range: -DBC0001068

1шт.

5

124085A1

HARNESS

- main, planter control (24 row narrow), Serial Range: -DBC0001068

1шт.

6

237456A2

HARNESS

- marker switch, time delay, Serial Range: -DBC0001068

1шт.

7

251441A1

BOARD, PRINTED CIRCU

MODULE - marker, time delay, Serial Range: -DBC0001068

1шт.

8

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Harness 1/2", Insul, 3/8" Bolt, Serial Range: -DBC0001068

2шт.

9

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, Serial Range: -DBC0001068

2шт.

10

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE, Serial Range: -DBC0001068

2шт.

11

230-4214

LOCK NUT,1/4"-20, GA

NUT - hex, self-locking, 1/4 inch NC, Serial Range: -DBC0001068

2шт.

12

117533A1

SWITCH

- marker alternating, Serial Range: -DBC0001068

1шт.

13

242014A1

BRACKET

- mounting, marker switch, at cylinder, Serial Range: -DBC0001068

1шт.

14

238004A1

BRACKET

- mounting, switch actuating rod, Serial Range: -DBC0001068

1шт.

15

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 3/4 inch, Serial Range: -DBC0001068

2шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2", Serial Range: -DBC0001068

2шт.

17

242016A1

BRACKET

- mounting, marker switch, at wheel frame, Serial Range: -DBC0001068

1шт.

18

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, Serial Range: -DBC0001068

2шт.

19

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE, Serial Range: -DBC0001068

2шт.

20

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8", Serial Range: -DBC0001068

2шт.

21

425-106

NUT,3/8"-16, Cl 5

, Serial Range: -DBC0001068

2шт.

22

238001A1

ROD ASSY.

ROD - actuating, marker switch, Serial Range: -DBC0001068

1шт.

23

16046D

SPRING

- actuating rod, Serial Range: -DBC0001068

1шт.

24

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE, Serial Range: -DBC0001068

1шт.

25

432-1216

COTTER PIN,3/16" x 1"

, Serial Range: -DBC0001068

1шт.

26

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch, harness to bracket, Serial Range: -DBC0001068

1шт.
