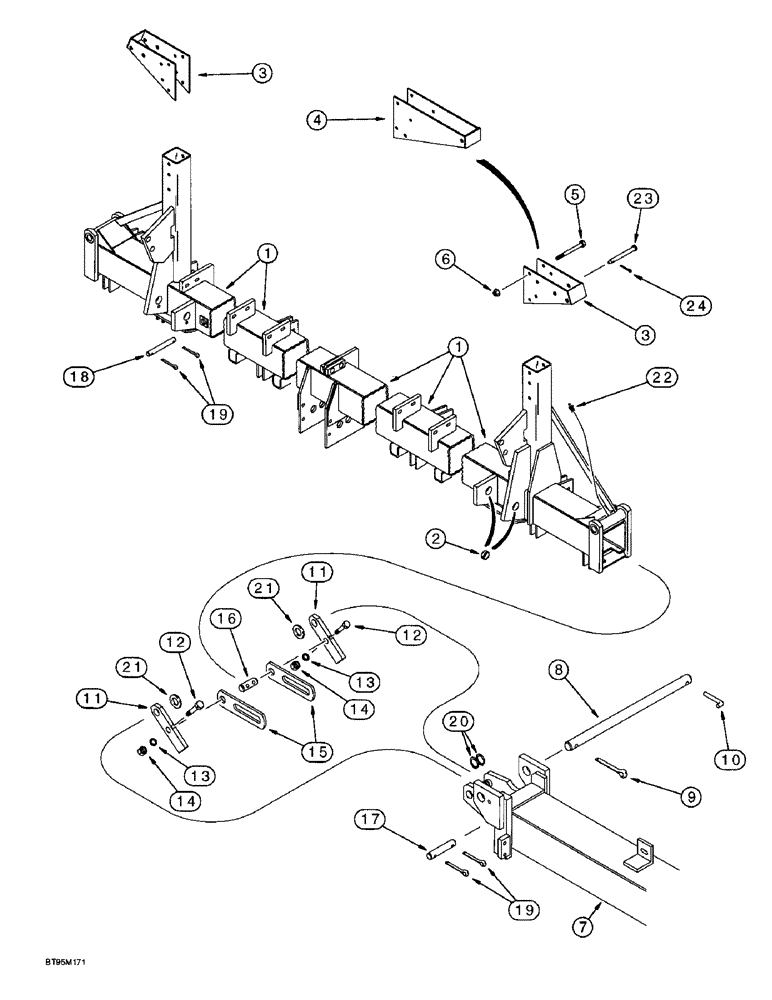

Запчасти Case IH 955 (9A-010) - MAIN FRAME AND WING FRAMES, 12 ROW NARROW - VERTICAL FOLD (09) - CHASSIS/ATTACHMENTS

1

1995837C3

ASSEMBLY

FRAME - main

1шт.

2

1268054C1

BUSHING,38.18mm ID x 45.47mm OD x 19.05mm L

- 1-1/2 ID x 1-3/4 OD x 3/4 inch, assist wheel arm mounting

4шт.

3

145136C1

STOP

- wing

2шт.

4

1254599C1

STOP

- wing, used with granular chemical attachment

2шт.

5

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- hex, 5/8 NC x 5-1/2 inch

4шт.

6

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

4шт.

7

102493A1

FRAME ASSY

FRAME - wing

2шт.

8

100326C2

PIN

- 1-1/2 x 11-7/8 inch

2шт.

9

432-3232

COTTER PIN,1/2" x 2"

Pin, Split (Cotter), 1/2" x 2"

2шт.

10

491601R3

PIN

- pivot lock, 1/2 inch diameter

2шт.

11

113473C2

SUPPORT

LATCH - hinge

4шт.

12

326-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 8

- hex, 1/4 NC x 2-3/4 inch, grade 8

4шт.

13

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

14

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

15

113307C1

LINK

- attaching, cylinder

4шт.

16

100324C3

PIN

- 1 x 3-1/2 inch long

2шт.

17

100323C2

PIN

- 1 x 5-7/8 inch long

2шт.

18

100358C2

PIN

- 1 x 8-9/16 inch long, cylinder mounting

2шт.

19

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

8шт.

20

100-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

4шт.

21

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-9/32 x 2 x 3/64 inch

4шт.

22

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 9/16 inch

2шт.

23

149571C2

PIN

- headed, 5/8 inch diameter, wing frame transport

2шт.

24

1978738C1

HAIR PIN COTTER

3/16"

2шт.
