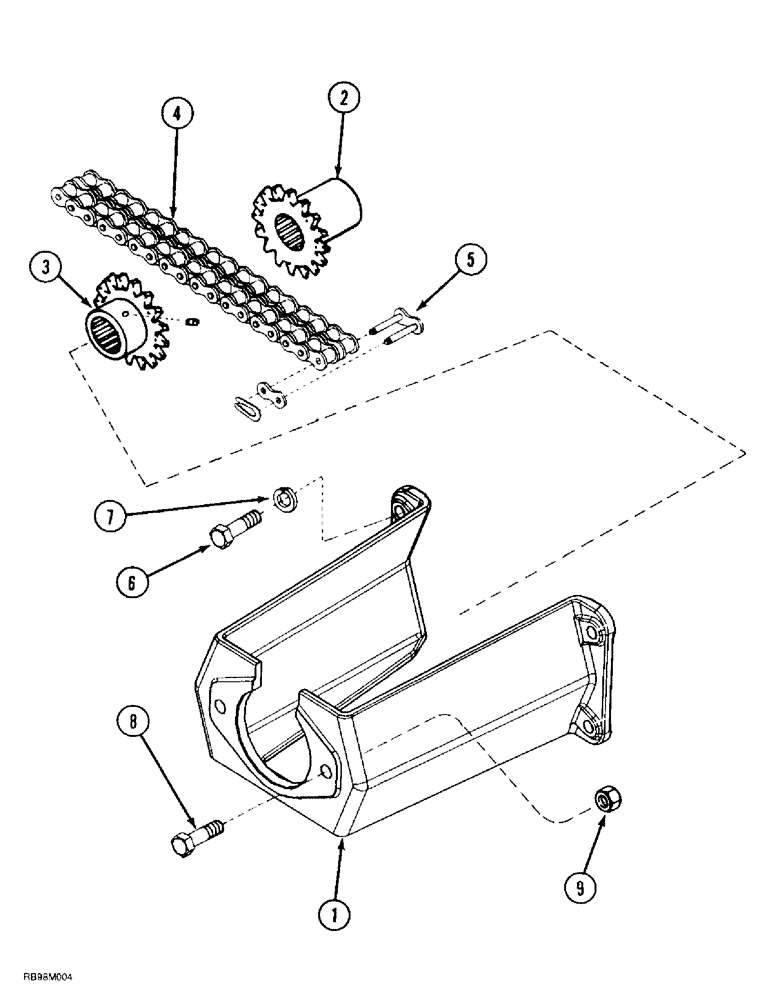

Запчасти Case IH 955 (8-192) - PUMP MOUNTING, AFS PLANTER, 12/23 SRC FOR USE WITH STEIGER TRACTORS (08) - HYDRAULICS

1

301792A1

HOUSING

- pump support, for use with Steiger tractors

1шт.

2

299145A1

SPROCKET ASSY.

SPROCKET - 20 tooth

1шт.

3

299151A1

SPROCKET ASSY.

SPROCKET - 15 tooth

1шт.

NSS

NOT SOLD SEPARAT

CHAIN - pump drive, use 17 links of 28363R1 plus one connector link 241-1326

1шт.

4

28363R1

CHAIN (AG)

CHAIN - bulk, No. 60, 10 ft (3048 mm) roll

1шт.

5

241-1326

LINK,12.7mm Pitch

- connecting, single pitch, No. 60-2, 3/4 inch pitch

1шт.

6

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

For use with Steiger tractors Hex, M12 x 40, 8.8, Full Thd

4шт.

7

892-11010

LOCK WASHER,M10

4шт.

8

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

9

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.
