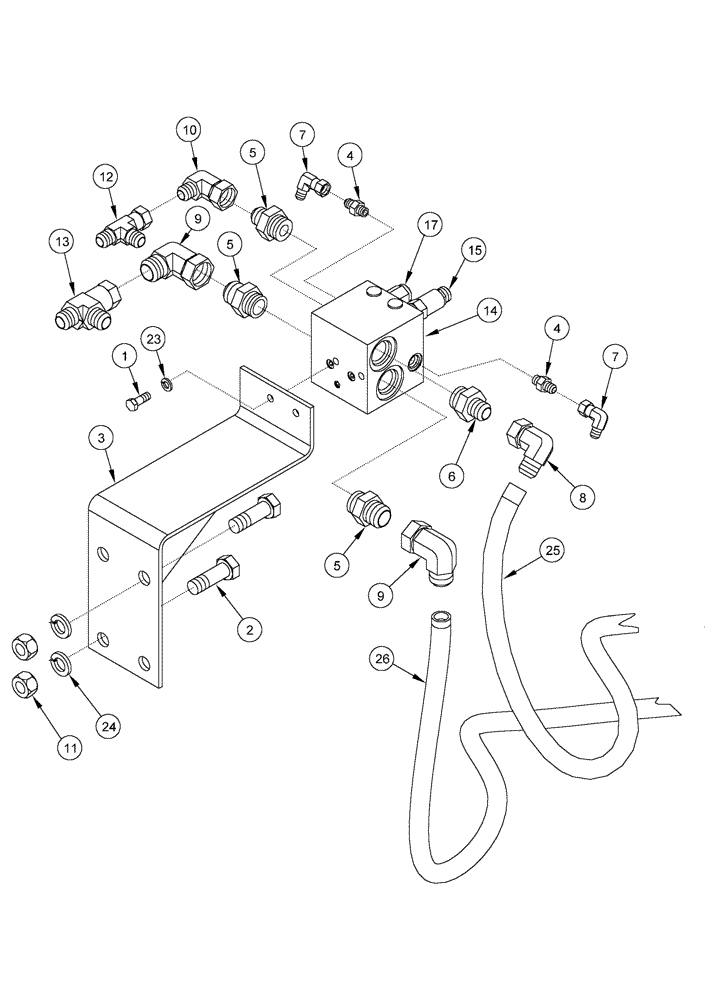

Запчасти Case IH 955 (8-182) - LOAD RELIEF VALVE MOUNTING, AFS PLANTER, 12/23 SRC - LEFT HAND SIDE (08) - HYDRAULICS

1

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

2

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch

2шт.

3

303681A1

BRACKET

- load / relief valve

1шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

2шт.

5

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch flare x O-ring boss

2шт.

6

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring boss

2шт.

7

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

2шт.

8

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

1шт.

9

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, 1-5/16-12 inch flare x swivel

2шт.

10

218-5377

ELBOW,90 Degree, 7/8"-14, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 7/8-14 flare x 1-1/16-12 inch swivel

1шт.

11

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

12

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- swivel, 7/8-14 inch flare branch x flare x swivel

1шт.

13

218-5412

TEE,37 Degree, 7/8"-14x1 1/16"-12, Fem Sw Runx1 1/16"-12 Br

- 1-1/16-12 flare branch x flare x 1-5/16-12 swivel

1шт.

14

293320A1

VALVE

ASSEMBLY - relief, bypass flow and signal

1шт.

15

304419A1

VALVE PRESSURE RELIE

VALVE - relief

1шт.

16

149942C1

SEAL KIT

KIT - seal replacement, relief valve seal, not shown

1шт.

17

304420A1

VALVE

- differential pressure sensing

1шт.

18

304391A1

SEAL KIT

KIT - seal, differential pressure sensing, not shown

1шт.

19

304421A1

VALVE

- flow regulator, not shown, located on the bottom of Valve Ref. 14

1шт.

20

304418A1

SEAL KIT

- seal, flow regulator, not shown

1шт.

21

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

not shown Hex Soc, 1 5/16"-12 ORB

2шт.

22

9625178

PLUG,9/16" - 18 ORB

Not shown Hex Soc, 9/16"-18 ORB

1шт.

23

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

24

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

25

301270A1

HOSE ASSY.

HOSE - 6225 mm (245 inch), pressure, left hand side (dual)

1шт.

26

301268A1

HOSE ASSY.

HOSE - 5480 mm (216 inch), tank, left hand side (dual)

1шт.
