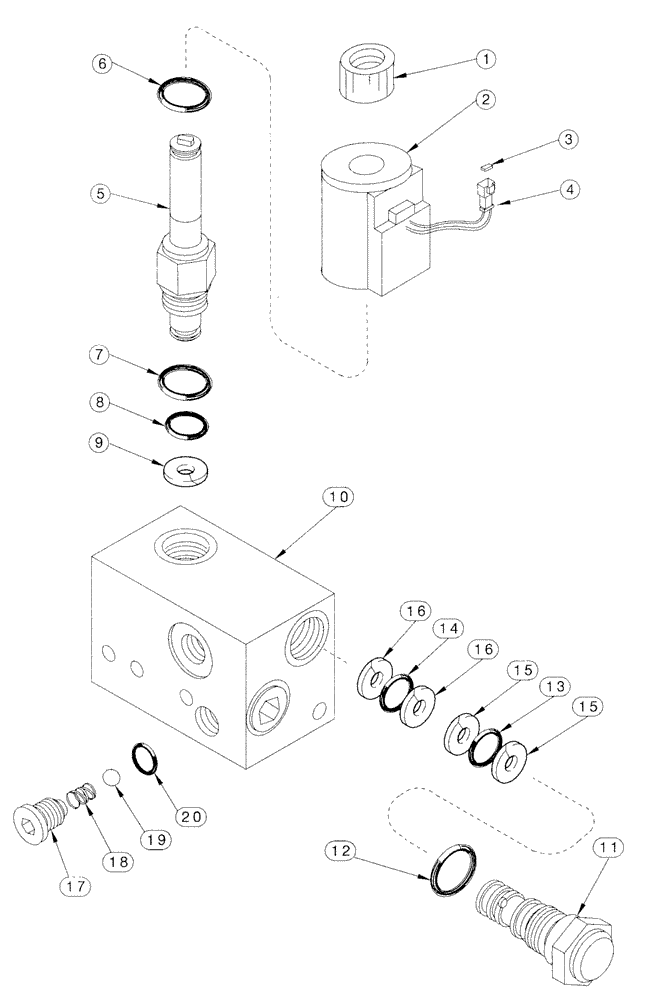

Запчасти Case IH 955 (8-172) - VALVE, PROPORTIONAL FLOW CONTROL, AFS PLANTER, 12 ROW AND 16 ROW NARROW (08) - HYDRAULICS

226734A3

VALVE

- proportional flow control

1шт.

1

188106A1

NUT

- special

1шт.

2

188105A1

SOLENOID

- without diode, 12 volt, DC

1шт.

3

225318C1

ELEC CONNECTOR,2 Pin

CONNECTOR -

1шт.

4

225315C1

ELEC CONNECTOR,Male, 2 Pin

CONNECTOR - wedge

1шт.

5

254969A1

VALVE

- flow control without coil

1шт.

304391A1

SEAL KIT

KIT - seal

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING -

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING -

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING -

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

10

278201A1

VALVE BODY

MANIFOLD -

1шт.

11

278200A1

VALVE

- differential pressure sensing

1шт.

304391A1

SEAL KIT

KIT - seal

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING -

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING -

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING -

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

16

NSS

NOT SOLD SEPARAT

WASHER - backup

2шт.

280025A1

KIT

- sense valve check

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG -

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING -

1шт.

19

NSS

NOT SOLD SEPARAT

BALL - steel

1шт.

20

NSS

NOT SOLD SEPARAT

GUIDE - spring

1шт.
