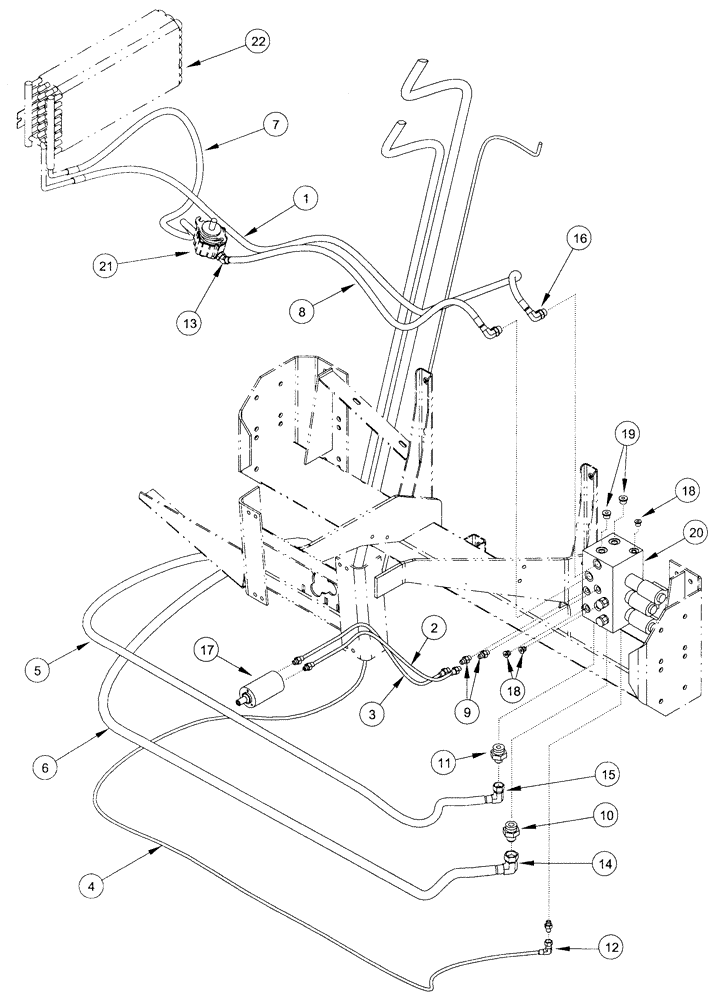

Запчасти Case IH 955 (8-170) - AFS HYDRAULIC SYSTEM, AFS PLANTER, 12 ROW AND 16 ROW NARROW & 12/23 SRC (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
127167A2
HOSE
- 1905 mm (75 inch) long
2шт.
2
1969386C1
HOSE
- 584 mm (23 inch) long
2шт.
3
1969386C1
HOSE
- 584 mm (23 inch) long
2шт.
4
189348A1
HYDRAULIC HOSE,6.40mm ID x 7110mm L
HOSE - 7110 mm (280 inch) long, right hand side, 12 row narrow
1шт.
4
356335A1
HYDRAULIC HOSE
HOSE - 7493 mm (295 inch) long, right hand side, 16 row narrow
1шт.
4
1284366C1
HYDRAULIC HOSE
HOSE - 2540 mm (100 inch) long, right hand side, 12/23
1шт.
4
147779C1
HYDRAULIC HOSE
HOSE - 3683 mm (145 inch) long, center, 12/23
1шт.
4
304465A1
HOSE ASSY.
HOSE - 6945 mm (273 inch) long, left hand side, 12 row narrow, not shown
1шт.
4
337158A1
HOSE ASSY.
HOSE - 7745 mm (305 inch) long, left hand side, 16 row narrow, not shown
1шт.
4
147878C1
HOSE
- 1650 mm (65 inch) long, left hand side, 12/23, not shown
1шт.
5
304467A1
HOSE ASSY.
HOSE - 6600 mm (260 inch) long, right hand side, 12 row narrow
1шт.
5
305651A1
HOSE ASSY.
HOSE - 7450 mm (293 inch) long, right hand side, 16 row narrow
1шт.
5
301276A1
HOSE ASSY.
HOSE - 2285 mm (90 inch) long, right hand side, 12/23
1шт.
5
301297A1
HOSE
- 3935 mm (155 inch) long, left hand side, to center valve 12/23, not shown
1шт.
5
304466A1
HOSE ASSY.
HOSE - 5540 mm (218 inch) long, left hand side, 12 row narrow, not shown
1шт.
5
335805A1
HOSE ASSY.
HOSE - 7660 mm (302 inch) long, left hand side, 16 row narrow, not shown
1шт.
5
301292A1
HOSE ASSY.
HOSE - 1395 mm (55 inch) long, left hand side, to left hand valve 12/23, not shown
1шт.
6
304468A1
HOSE ASSY.
HOSE - 7420 mm (292 inch) long, right hand side, 12 row narrow
1шт.
6
305652A1
HOSE ASSY.
HOSE - 7230 mm (285 inch) long, right hand side, 16 row narrow
1шт.
6
301277A1
HYDRAULIC HOSE,19.05mm ID x 2540mm L
HOSE - 2285 mm (90 inch) long, right hand side, 12/23
1шт.
6
301298A1
HOSE ASSY.
HOSE - 3685 mm (145 inch) long, left hand side, to center valve 12/23, not shown
1шт.
6
337157A1
HOSE ASSY.,6.4mm ID x 6860mm L
HOSE - 6860 mm (270 inch) long, left hand side, 12 row narrow, not shown
1шт.
6
335806A1
HOSE ASSY.
HOSE - 66390 mm (252 inch) long, left hand side, 16 row narrow, not shown
1шт.
6
301293A1
HYDRAULIC HOSE
HOSE - 1395 mm (55 inch) long, left hand side, to left hand valve 12/23, not shown
1шт.
7
90698C1
HOSE,12.70 mm ID x 13208.00 mm, SAE 30 R2 OR SAE 100R6
2шт.
8
90882C1
HYDRAULIC HOSE,12.70 mm ID x 1195.00 mm, SAE 100R1
2шт.
9
218-5057
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
ADAPTER - straight, 9/16-18 inch flare x O-ring boss
10шт.
10
218-5077
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring boss
2шт.
11
218-5078
HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB
ADAPTER - straight, 7/8-14 flare x 1-5/16-12 inch O-ring boss
2шт.
12
218-980
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw
- 90 degree, 9/16-18 inch flare x swivel
2шт.
13
218-5136
ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- 45 degree, 3/4-16 inch flare x adj O-ring boss
2шт.
14
218-5231
ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw
- 90 degree, 1-1/16-12 inch flare x swivel
2шт.
15
218-5232
ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw
- 90 degree, 7/8-14 inch flare x swivel
2шт.
16
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- 90 degree, 3/4-16 inch flare x adj O-ring boss
4шт.
17
281070A1
MOTOR
- hydraulic drive
2шт.
18
9625178
PLUG,9/16" - 18 ORB
6шт.
19
71100209
PLUG,Hex Soc, 3/4"-16 ORB
4шт.
20
293321A4
VALVE
ASSEMBLY - multi-variable, see page 8-185
2шт.
21
1272056C92
HYDRAULIC MOTOR,7.05 CC
MOTOR ASSEMBLY - blower, seed module
1шт.
21
1272056C92R
REMAN-HYD MOTOR
955 - CASE IH TRAILING PLANTER, N.A. Only
1шт.
21
1272056C92C
CORE-HYDRAULIC PUMP
Return Number, For N.A. Only
1шт.
22
315923A2
COOLER, OIL
COOLER - oil
1шт.
Выбрано товаров: 42
