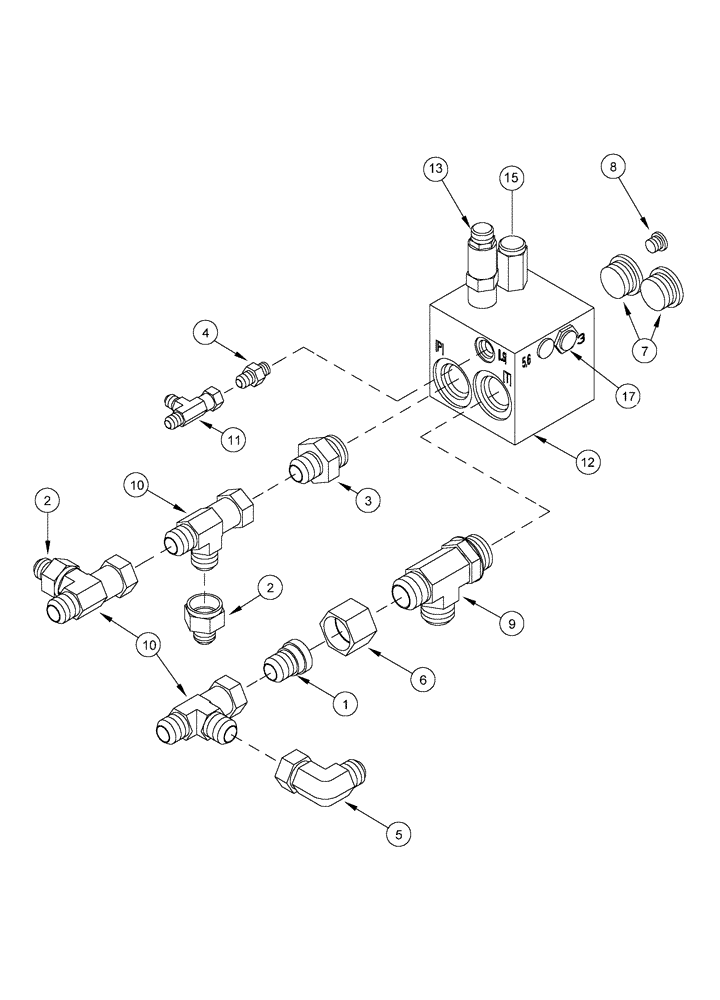

Запчасти Case IH 955 (8-168) - LOAD RELIEF VALVE, AFS PLANTER, 12 ROW AND 16 ROW NARROW (08) - HYDRAULICS

1

218-797

REDUCER,37 Degree, 1" x 3/4" Tube

ADAPTER - reducing, 1 tube OD x 1-1/16-12 inch flare

1шт.

2

218-785

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

ADAPTER - reducing, 1-1/16-12 female str thread x 7/8-14 inch flare

2шт.

3

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 1-5/16-12 inch O-ring boss

1шт.

4

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

1шт.

5

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x swivel

1шт.

6

218-348

TUBE NUT,37 Degree, 1 5/16"-12, Type B

NUT - hex, 1-5/16 inch NF

1шт.

7

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

2шт.

8

9625178

PLUG,9/16" - 18 ORB

1шт.

9

218-5245

TEE,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 1-5/16-12 inch flare branch x flare x adj O-ring boss

1шт.

10

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

3шт.

11

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare branch x flare x swivel

1шт.

12

293320A1

VALVE

ASSEMBLY - relief, bypass flow and signal

1шт.

13

304419A1

VALVE PRESSURE RELIE

VALVE - relief

1шт.

14

149942C1

SEAL KIT

KIT - seal replacement, relief valve seal, not shown

1шт.

15

304420A1

VALVE

- differential pressure sensing

1шт.

16

304391A1

SEAL KIT

KIT - seal, not shown

1шт.

17

304421A1

VALVE

- flow regulator

1шт.

18

304418A1

SEAL KIT

- seal, not shown

1шт.

19

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

not shown Hex Soc, 1 5/16"-12 ORB

2шт.

20

9625178

PLUG,9/16" - 18 ORB

Not shown Hex Soc, 9/16"-18 ORB

1шт.
