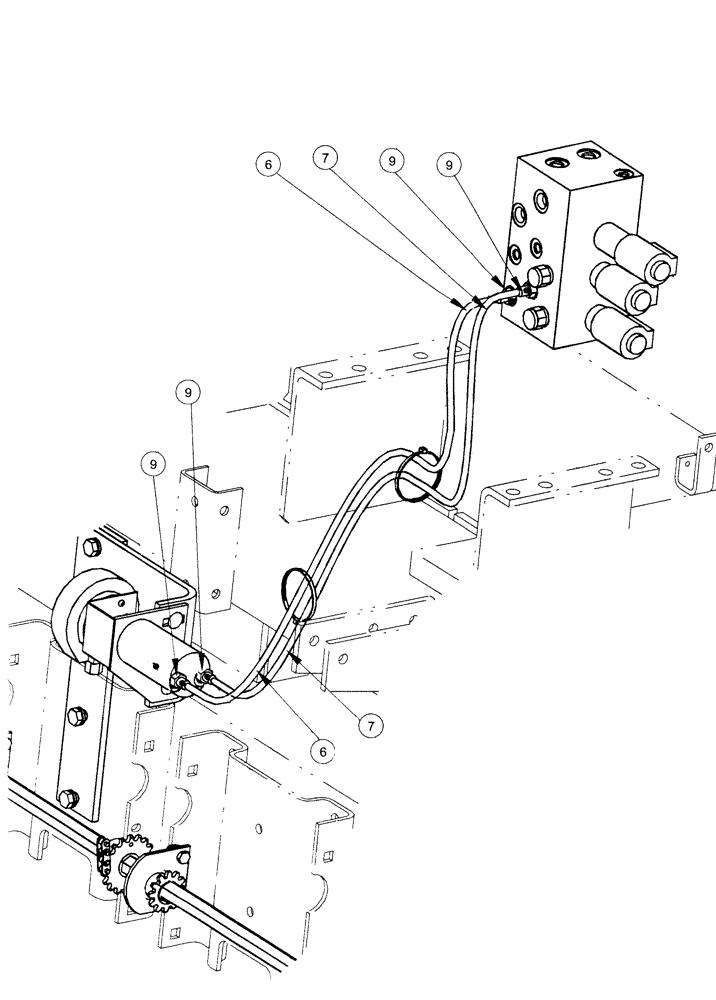

Запчасти Case IH 955 (8-166) - CHEMICAL DRIVE HYDAULIC HOSES, AFS PLANTER, 12/23 SRC (08) - HYDRAULICS

6

129908C1

HYDRAULIC HOSE

HOSE - 1397 mm (55 inch) long, supply, row unit #2

1шт.

6

147876C1

HYDRAULIC HOSE

HOSE - 1143 mm (45 inch) long, supply, row unit #12

1шт.

6

843066C1

HYDRAULIC HOSE,0.25" ID x 33.00"

Supply, Row unit #19 0.25" ID x 33.00"

1шт.

7

129908C1

HYDRAULIC HOSE

HOSE - 1397 mm (55 inch) long, return, row unit #2

1шт.

7

147876C1

HYDRAULIC HOSE

HOSE - 1143 mm (45 inch) long, return, row unit #12

1шт.

7

843066C1

HYDRAULIC HOSE,0.25" ID x 33.00"

Return, Row unit #19 0.25" ID x 33.00"

1шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

12шт.

10

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

8шт.
