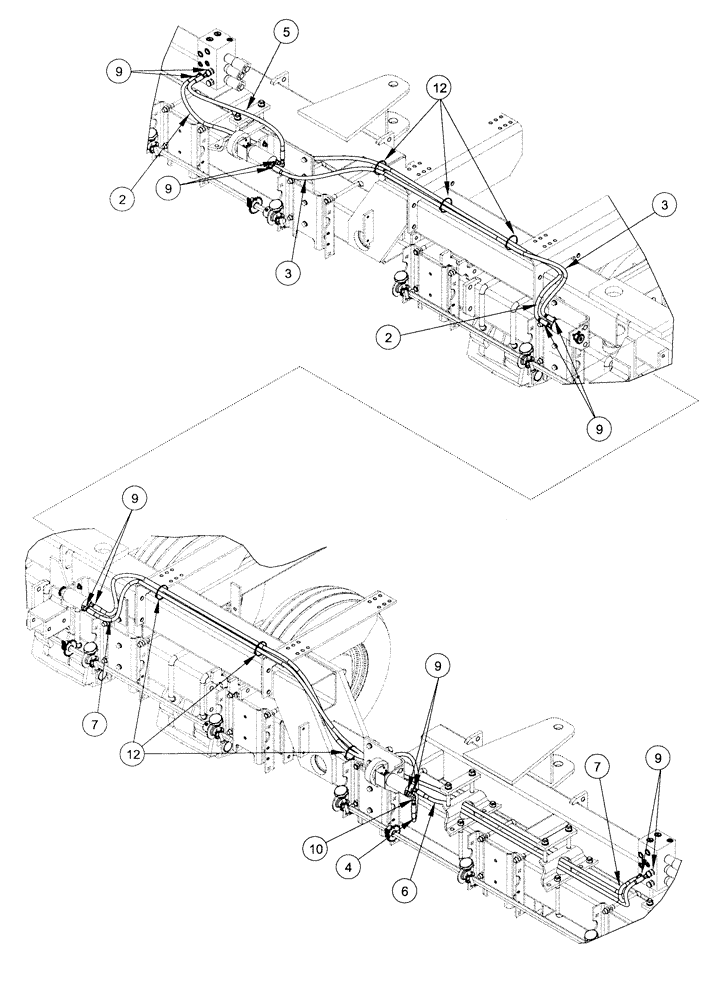

Запчасти Case IH 955 (8-164) - CHEMICAL DRIVE HYDAULIC HOSES, AFS PLANTER, 12 ROW AND 16 ROW NARROW (08) - HYDRAULICS

2

1254526C2

HOSE ASSY.

HOSE - 3429 mm (135 inch) long

1шт.

3

1264172C2

HYDRAULIC HOSE,6.40 mm ID x 2665.00 mm, SAE 100R1

HOSE - 2667 mm (105 inch) long, left hand side

1шт.

4

191936A1

HOSE

- 2795 mm (110 inch) long, left hand side

1шт.

5

843066C1

HYDRAULIC HOSE,0.25" ID x 33.00"

RH side 0.25" ID x 33.00"

1шт.

6

97478C1

HOSE,6.35 mm ID x 1905.00 mm, SAE 100 R1

Right Hand 6.35 mm ID x 1905.00 mm, SAE 100 R1

1шт.

7

97647C1

HYDRAULIC HOSE,12.70 mm ID x 4318.00 mm, SAE 100 R1

Left-Hand Side 12.70 mm ID x 4318.00 mm, SAE 100 R1

1шт.

9

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss

12шт.

10

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

2шт.

12

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

6шт.
