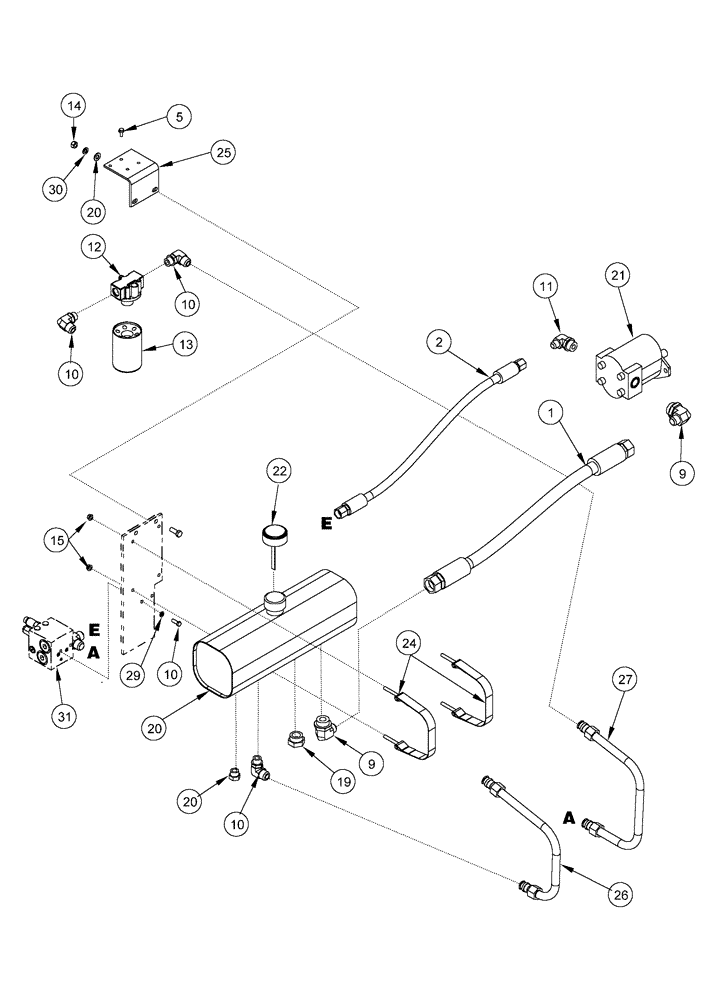

Запчасти Case IH 955 (8-162) - RESERVOIR ASSEMBLY, AFS PLANTER, 12 ROW AND 16 ROW NARROW (08) - HYDRAULICS

1

118673A1

HOSE,31.75mm ID x 1675mm L, SAE 100R4

HOSE - 1676 mm (66 inch) long

1шт.

2

315709A1

HOSE ASSY.

HOSE - 1676 mm (66 inch) long

1шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT - hex, 3/8 NC x 1 inch

2шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

BOLT, Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

5

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

BOLT - hex serrated flange, 5/16 NC x 3/4 inch

3шт.

9

218-5275

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

ELBOW - 90 degree, 1-5/16-12 flare x 1-5/8-12 inch adj O-ring boss

2шт.

10

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ELBOW - 90 degree, 1-5/16-12 flare x 1-1/16-12 inch adj O-ring boss

3шт.

11

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ELBOW - 90 degree, 1-1/16-12 flare x 1-5/16-12 inch adj O-ring boss

1шт.

12

254132A1

FILTER ASSY

FILTER ASSEMBLY - hydraulic oil

1шт.

13

254133A1

FILTER

FILTER - hydraulic oil

1шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

15

231-5146

FLANGE NUT,3/8"-16

NUT, Flg, USR, 3/8"-16

4шт.

19

218-5161

PLUG,Hex Hd, 1 5/8"-12 ORB

PLUG - hex, 1-5/8-12 inch O-ring boss

1шт.

20

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

PLUG - hex, 1-1/16-12 inch O-ring boss

1шт.

21

293243A1

PUMP

PUMP - hydraulic

1шт.

21

293243A1R

REMAN-HYD PUMP

Remanufactured Hydraulic PTO Pump

1шт.

21

293243A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

87619629R

REMAN-HYD PUMP

955 (10/95-), Reman For New P/N 293243A1

1шт.

87619629C

CORE-HYDRAULIC PUMP

Return Number

1шт.

22

115872A1

RESERVOIR, HYDRAULIC

RESERVOIR ASSEMBLY - hydraulic oil, 4-1/2 gallon

1шт.

23

129575A1

CAP

CAP - reservoir, includes dipstick

1шт.

24

116093A1

STRAP

STRAP - reservoir mounting

2шт.

25

127715A4

SUPPORT

BRACKET - mounting, filter

1шт.

26

296037A1

HYD TUBE,1" OD, 336, 256.3 mm Length

TUBE - filter to tank

1шт.

27

296039A1

HYD TUBE,1" OD, 363.1, 239.7 mm Length

TUBE - filter to valve

1шт.

28

495-11053

WASHER,1/2", SAE

WASHER, (17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

29

492-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

31

REF

INSTRUCTION

VALVE - see page 8-169

1шт.
