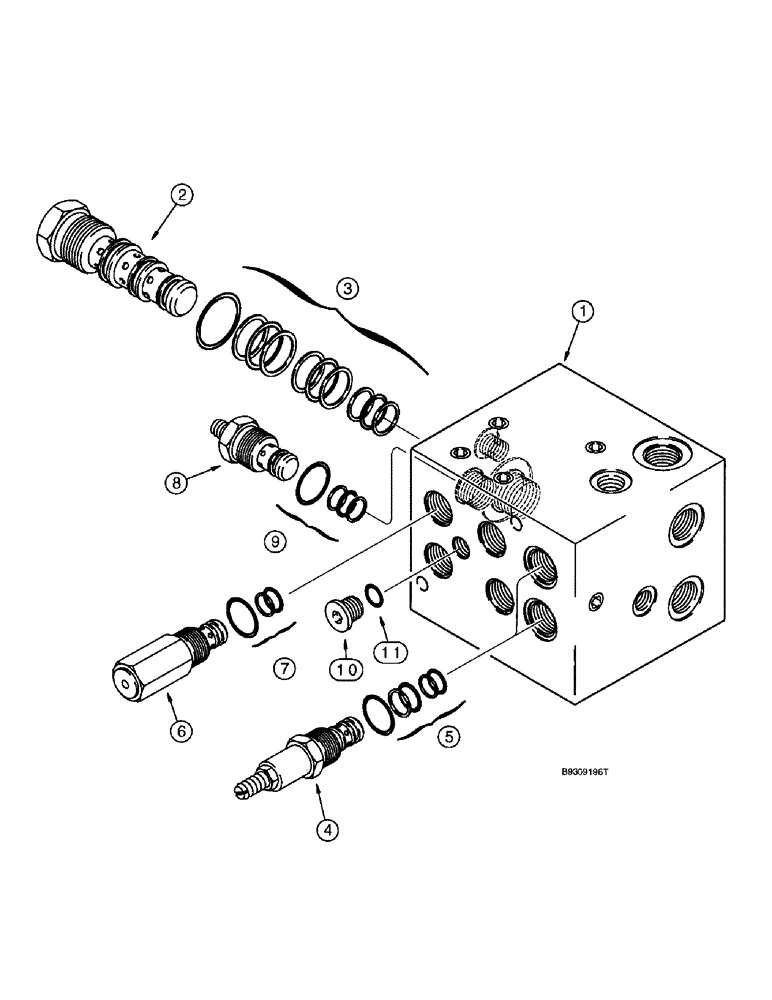

Запчасти Case IH 955 (8-160) - CONTROL VALVE ASSEMBLY, PLANTER, 8 ROW WIDE &12 ROW NARROW VERTICAL FOLD (08) - HYDRAULICS

138295A2

VALVE

ASSEMBLY - planter control

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

126050A2

VALVE

ASSEMBLY - flow divider, 33/66 split, 27 GPM

1шт.

2

NSS

NOT SOLD SEPARAT

VALVE - flow divider

1шт.

3

1341812C1

O-RING KIT

KIT - seal replacement, flow divider valve (See NOTE 1)

1шт.

138659A1

VALVE

ASSEMBLY - counterbalance

2шт.

4

NSS

NOT SOLD SEPARAT

VALVE - check

1шт.

5

139825A1

SEAL KIT

- seal, check valve (See NOTE 2)

1шт.

136204A1

VALVE

ASSEMBLY - relief, 2000 PSI

4шт.

6

NSS

NOT SOLD SEPARAT

VALVE - relief

1шт.

7

149942C1

SEAL KIT

KIT - seal replacement, relief (See NOTE 3)

1шт.

138660A1

VALVE

ASSEMBLY - flow control, adjustable

1шт.

8

NSS

NOT SOLD SEPARAT

VALVE - flow control

1шт.

9

126054A1

SEAL PACKAGE

KIT - seal, flow control valve (See NOTE 4)

1шт.

10

9625178

PLUG,9/16" - 18 ORB

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
