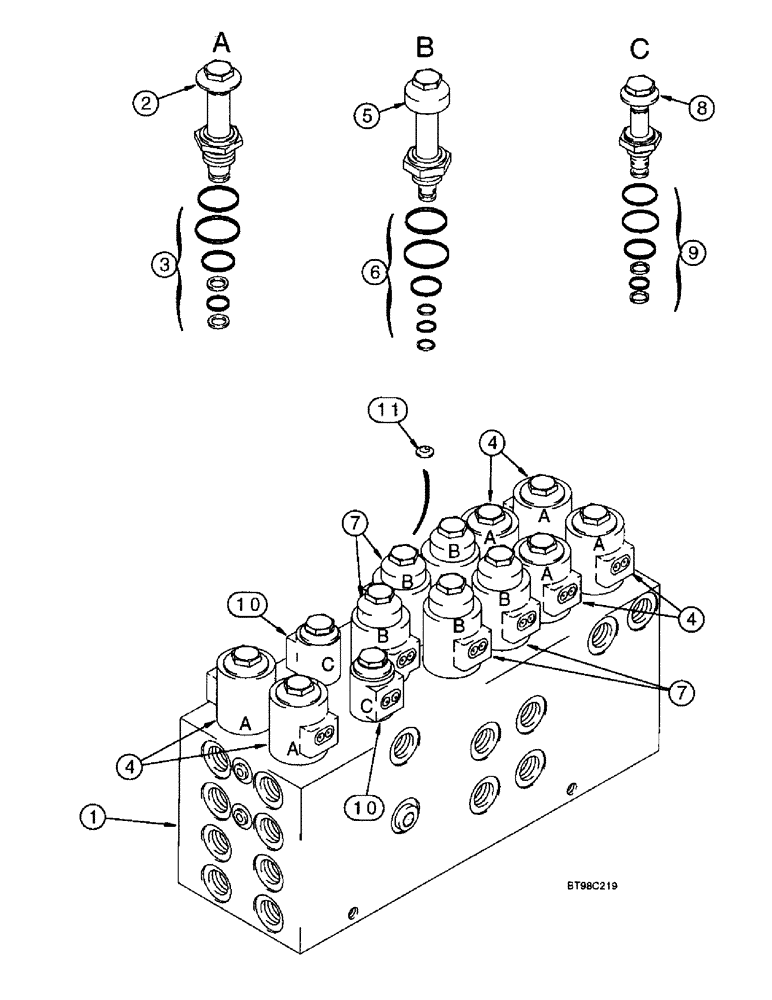

Запчасти Case IH 955 (8-159A) - CONTROL VALVE ASSEMBLY, PLANTER, HYDRAFORCE, 24 ROW NARROW - FRONT FOLD (9/97 & AFTER) (08) - HYDRAULICS

300702A1

VALVE

ASSEMBLY - control, Includes: Ref. 1 - 11, Serial Range: DBC0001114-DBC0001262

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve, Serial Range: DBC0001114-DBC0001262

1шт.

2

259820A1

VALVE

CARTRIDGE - valve, 2 way, 4 inch long, Includes: Ref. 3, Serial Range: DBC0001114-DBC0001262

6шт.

3

1542830C2

SEAL KIT

KIT, SEALS, Replacement, Cartridge, Serial Range: DBC0001114-DBC0001262

1шт.

Kit includes (4) O-rings and (2) backup rings.

1шт.

4

259829A1

COIL

- solenoid, 12 volt, 2 inch, Serial Range: DBC0001114-DBC0001262

6шт.

5

259830A1

VALVE

CARTRIDGE - valve, 2 way, 4-3/8 inch long, Includes: Ref. 6, Serial Range: DBC0001114-DBC0001262

5шт.

6

237129A2

SEAL KIT

KIT - seal replacement, cartridge, Serial Range: DBC0001114-DBC0001262

1шт.

Kit includes (4) O-rings and (2) backup rings.

1шт.

7

259829A1

COIL

- solenoid, 12 volt, 2 inch, Serial Range: DBC0001114-DBC0001262

5шт.

8

301336A1

CARTRIDGE

- valve, 2 way, 3-1/4 inch long, Includes: Ref. 9, Serial Range: DBC0001114-DBC0001262

2шт.

9

237129A2

SEAL KIT

KIT - seal replacement, cartridge, Serial Range: DBC0001114-DBC0001262

1шт.

Kit includes (4) O-rings and (2) backup rings.

1шт.

10

301099A1

COIL

- solenoid, 12 volt, 1-1/2 inch, Serial Range: DBC0001114-DBC0001262

2шт.

11

277548A2

ORIFICE

DISC - orifice, 0.093 inch diameter, Serial Range: DBC0001114-DBC0001262

1шт.
