Запчасти Case IH 955 (8-158) - CONTROL VALVE ASSEMBLY, PLANTER, VICKERS, 24 ROW NARROW - FRONT FOLD (THROUGH 8/97) (08) - HYDRAULICS

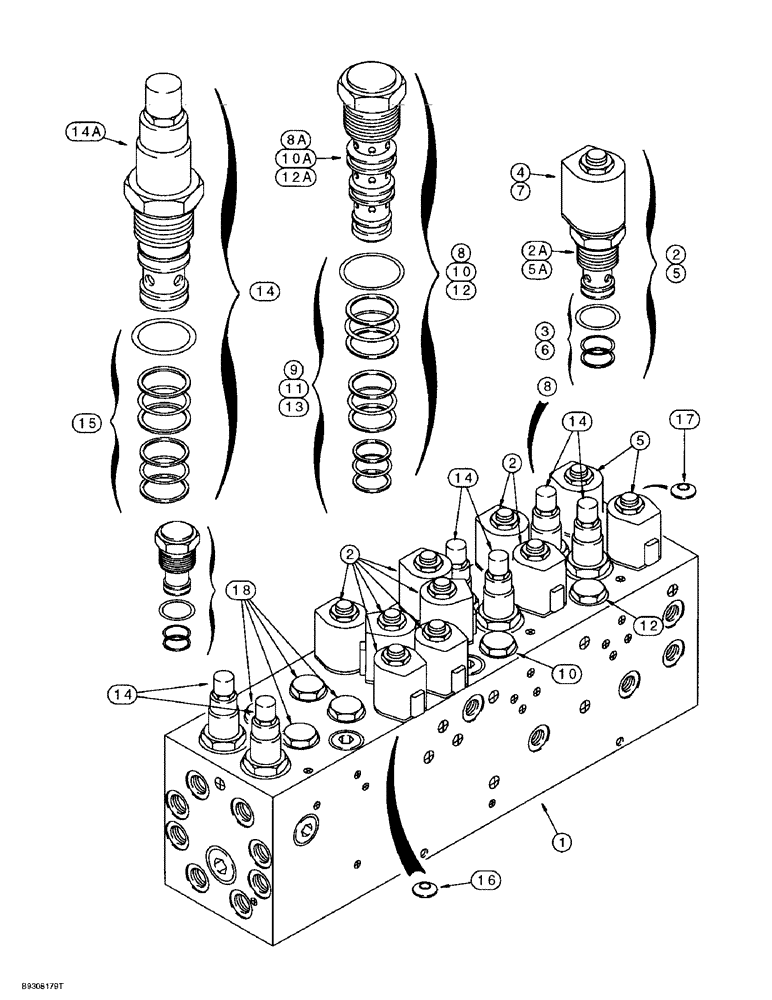

Схема запчастей Case IH 955 - (8-158) - CONTROL VALVE ASSEMBLY, PLANTER, VICKERS, 24 ROW NARROW - FRONT FOLD (THROUGH 8/97) (08) - HYDRAULICS
2
5a
1
2
9
5
11
6
15
8a
4
16
12
18
14a
14
8
3
12
2
12a
13
8
10
17
14
10a
10
2a
7
14
14
5

№

Артикул

Название

Примечание

Количество

124461A2

VALVE

ASSEMBLY - control, 24 row, Includes: Ref. 1 - 18, Serial Range: -DBC0001114

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve, Serial Range: -DBC0001114

1шт.

2

126048A1

SOLENOID

VALVE ASSEMBLY - solenoid, poppet type, Includes: Ref. 2A - 4, Serial Range: -DBC0001114

8шт.

2a

NSS

NOT SOLD SEPARAT

VALVE - 2-way, Serial Range: -DBC0001114

1шт.

3

149942C1

SEAL KIT

KIT - seal replacement, poppet solenoid valve, Serial Range: -DBC0001114

1шт.

Kit includes (2) O-rings and (1) backup ring.

1шт.

4

1340843C1

SOLENOID,12V

KIT - solenoid coil, 12 volt, diode arc suppressed, Serial Range: -DBC0001114

1шт.

5

126049A1

VALVE

ASSEMBLY - solenoid, spool type, Includes: Ref. 5A - 7, Serial Range: -DBC0001114

2шт.

5a

NSS

NOT SOLD SEPARAT

VALVE - 2 way, Serial Range: -DBC0001114

1шт.

6

126054A1

SEAL PACKAGE

KIT - seal, spool solenoid valve, Serial Range: -DBC0001114

1шт.

Kit includes (2) O-rings and (1) backup ring.

1шт.

7

1340843C1

SOLENOID,12V

KIT - solenoid coil, 12 volt, diode arc suppressed, Serial Range: -DBC0001114

1шт.

8

129056A2

VALVE

ASSEMBLY - flow divider, 50/50 split, 27 GPM, Includes: Ref. 8A & 9, Serial Range: -DBC0001114

1шт.

8a

NSS

NOT SOLD SEPARAT

VALVE - flow divider, Serial Range: -DBC0001114

1шт.

9

1341812C1

O-RING KIT

KIT - seal replacement, flow divider valve, Serial Range: -DBC0001114

1шт.

Kit includes (4) O-rings and (6) backup rings.

1шт.

10

126051A1

VALVE

ASSEMBLY - flow divider, 50/50 split, 12 GPM, Includes: Ref. 10A & 11, Serial Range: -DBC0001114

1шт.

10a

NSS

NOT SOLD SEPARAT

VALVE - flow divider, Serial Range: -DBC0001114

1шт.

11

126056A1

SEAL KIT

- seal, flow divider valve, Serial Range: -DBC0001114

1шт.

Kit includes (4) O-rings and (6) backup rings.

1шт.

12

126052A1

VALVE

ASSEMBLY - flow divider, 50/50 split, 8 GPM, Includes: Ref. 12A & 13, Serial Range: -DBC0001114

1шт.

12a

NSS

NOT SOLD SEPARAT

VALVE - flow divider, Serial Range: -DBC0001114

1шт.

13

126056A1

SEAL KIT

- seal, flow divider valve, Serial Range: -DBC0001114

1шт.

Kit includes (4) O-rings and (6) backup rings.

1шт.

14

126053A2

VALVE

ASSEMBLY - counterbalance, Includes: Ref. 14A & 15, Serial Range: -DBC0001114

6шт.

14a

NSS

NOT SOLD SEPARAT

VALVE - counterbalance, Serial Range: -DBC0001114

1шт.

15

126057A1

SEAL KIT

- seal, counterbalance valve, Serial Range: -DBC0001114

1шт.

Kit includes (3) O-rings and (4) backup rings.

1шт.

16

134169A1

ORIFICE

DISC - orifice, .090 inch diameter, Serial Range: -DBC0001114

2шт.

17

107467A2

ORIFICE

DISC - orifice, 0.125 inch diameter, Serial Range: -DBC0001114

1шт.

18

134687A1

PLUG

- hydraulic, includes seals, No. 12, Serial Range: -DBC0001114

4шт.

Выбрано товаров: 31
