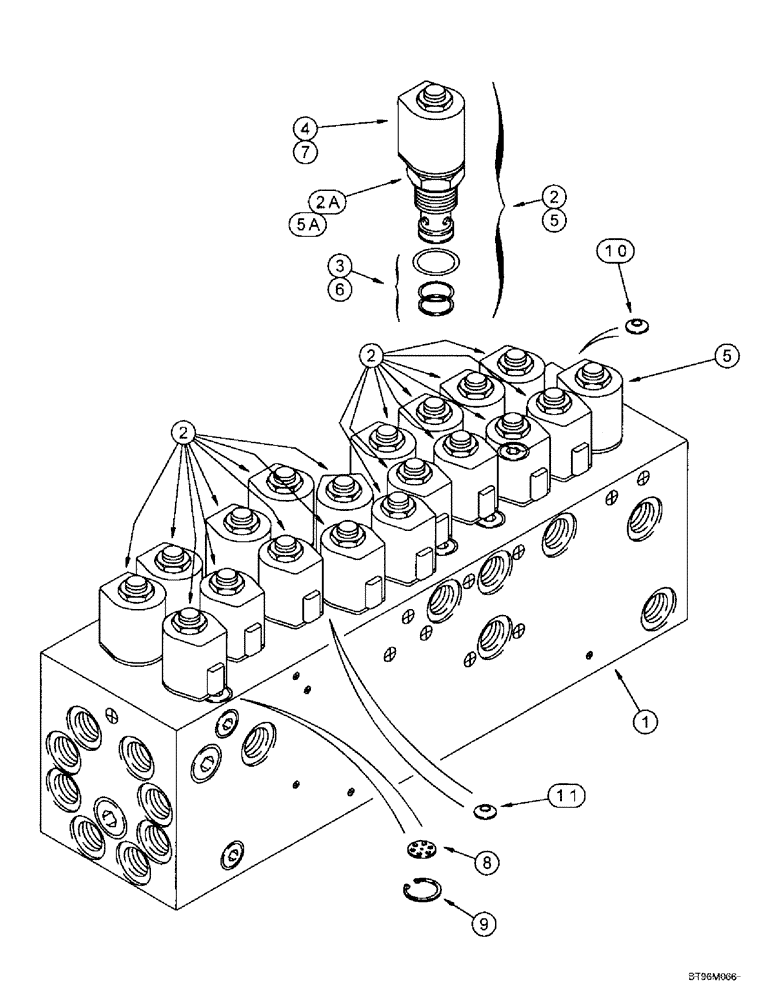

Запчасти Case IH 955 (8-156) - CONTROL VALVE ASSEMBLY, PLANTER, VICKERS, 12/23 SRC - FRONT FOLD (W/O LIQUID FERTILIZER ATTACH) (08) - HYDRAULICS

240736A1

VALVE

ASSEMBLY - control, 12/23 solid row crop, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve

1шт.

2

126048A1

SOLENOID

VALVE ASSEMBLY - solenoid, poppet type, Includes: Ref. 2A - 4

18шт.

2a

NSS

NOT SOLD SEPARAT

VALVE - 2-way

1шт.

3

149942C1

SEAL KIT

KIT - seal replacement, poppet solenoid valve

1шт.

Kit includes (2) O-rings and (1) backup ring.

1шт.

4

1340843C1

SOLENOID,12V

KIT - solenoid coil, 12 volt, diode arc suppressed

1шт.

5

126049A1

VALVE

ASSEMBLY - solenoid, spool type, Includes: Ref. 5A - 7

1шт.

5a

NSS

NOT SOLD SEPARAT

VALVE - 2 way

1шт.

6

1272308C1

SEAL KIT

KIT - seal, spool solenoid valve

1шт.

Kit includes (2) O-rings and (1) backup ring.

1шт.

7

1340843C1

SOLENOID,12V

KIT - solenoid coil, 12 volt, diode arc suppressed

1шт.

8

126158A1

ORIFICE

DISC - orifice, .110 and .042 inch diameter

1шт.

9

100-2175

SNAP RING,0.75", Int, #75

Ring, Snap, 0.75", Int, #75

1шт.

10

134169A1

ORIFICE

DISC - orifice, .090 inch diameter

1шт.

11

134168A1

ORIFICE

DISC - orifice, .042 inch diameter

2шт.
