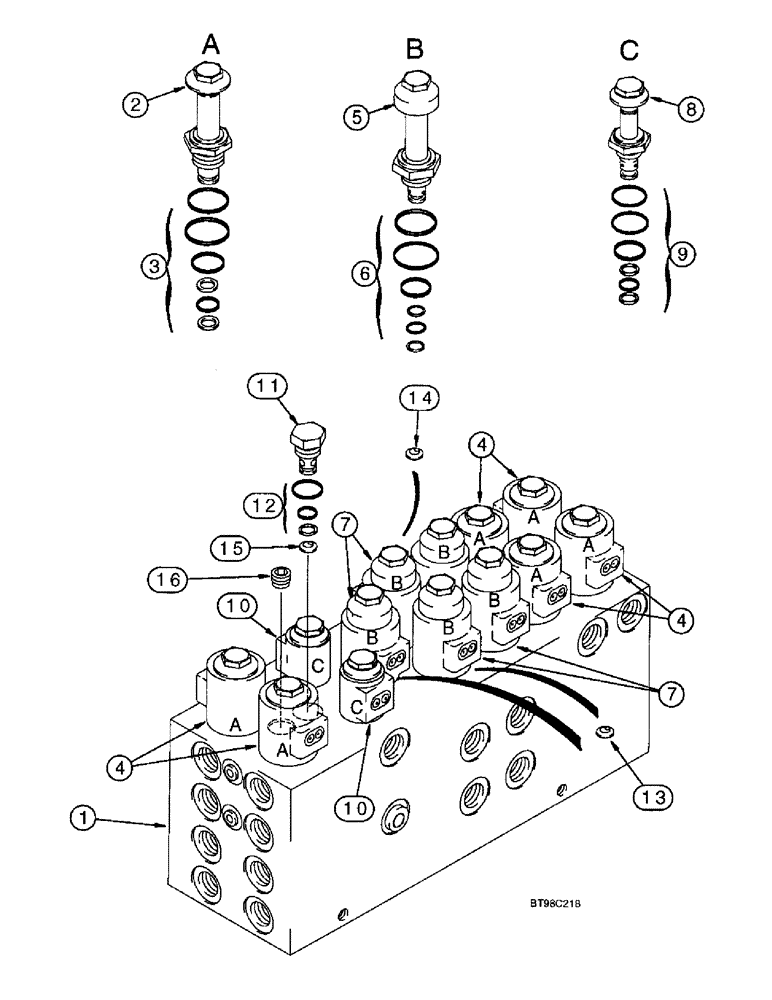

Запчасти Case IH 955 (8-155[C]) - CONTROL VALVE ASSEMBLY, PLANTER, HYDRAFORCE, 12 ROW WIDE - FRONT FOLD (9/97 & AFTER) (08) - HYDRAULICS

240737A2

VALVE

ASSEMBLY - control, Includes: Ref. 1 - 16, Start Serial: DBC0001277

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - control valve, Start Serial: DBC0001277

1шт.

2

259820A1

VALVE

CARTRIDGE - valve, 2 way, 4 inch long, Includes: Ref. 3, Start Serial: DBC0001277

6шт.

3

1542830C2

SEAL KIT

KIT, SEALS, Replacement, Cartridge, Start Serial: DBC0001277

1шт.

Kit includes (4) O-rings and (2) backup rings.

1шт.

4

259829A1

COIL

- solenoid, 12 volt, 2 inch, Start Serial: DBC0001277

6шт.

5

259830A1

VALVE

CARTRIDGE - valve, 2 way, 4-3/8 inch long, Includes: Ref. 6, Start Serial: DBC0001277

5шт.

6

237129A2

SEAL KIT

KIT - seal replacement, cartridge, Start Serial: DBC0001277

1шт.

Kit includes (4) O-rings and (2) backup rings.

1шт.

7

259829A1

COIL

- solenoid, 12 volt, 2 inch, Start Serial: DBC0001277

5шт.

8

301336A1

CARTRIDGE

- valve, 2 way, 3-1/4 inch long, Includes: Ref. 9, Start Serial: DBC0001277

2шт.

9

237129A2

SEAL KIT

KIT - seal replacement, cartridge, Start Serial: DBC0001277

1шт.

Kit includes (4) O-rings and (2) backup rings.

1шт.

10

301099A1

COIL

- solenoid, 12 volt, 1-1/2 inch, Start Serial: DBC0001277

2шт.

11

120459A1

VALVE,3/4" - 16

ASSEMBLY - check, Includes: Ref. 12, Start Serial: DBC0001277

1шт.

12

1542831C1

SEAL KIT

KIT - seal, valve, includes (2) O-rings and (1) backup ring which are not serviced separately, Start Serial: DBC0001277

1шт.

13

277547A2

ORIFICE

DISC - orifice, 0.042 inch diameter, Start Serial: DBC0001277

2шт.

14

277548A2

ORIFICE

DISC - orifice, 0.093 inch diameter, Start Serial: DBC0001277

1шт.

15

277549A2

ORIFICE

DISC - orifice, 0.110 inch diameter, Start Serial: DBC0001277

2шт.

16

275743A2

PLUG

- orifice, special, 0.050 inch diameter, Start Serial: DBC0001277

1шт.
