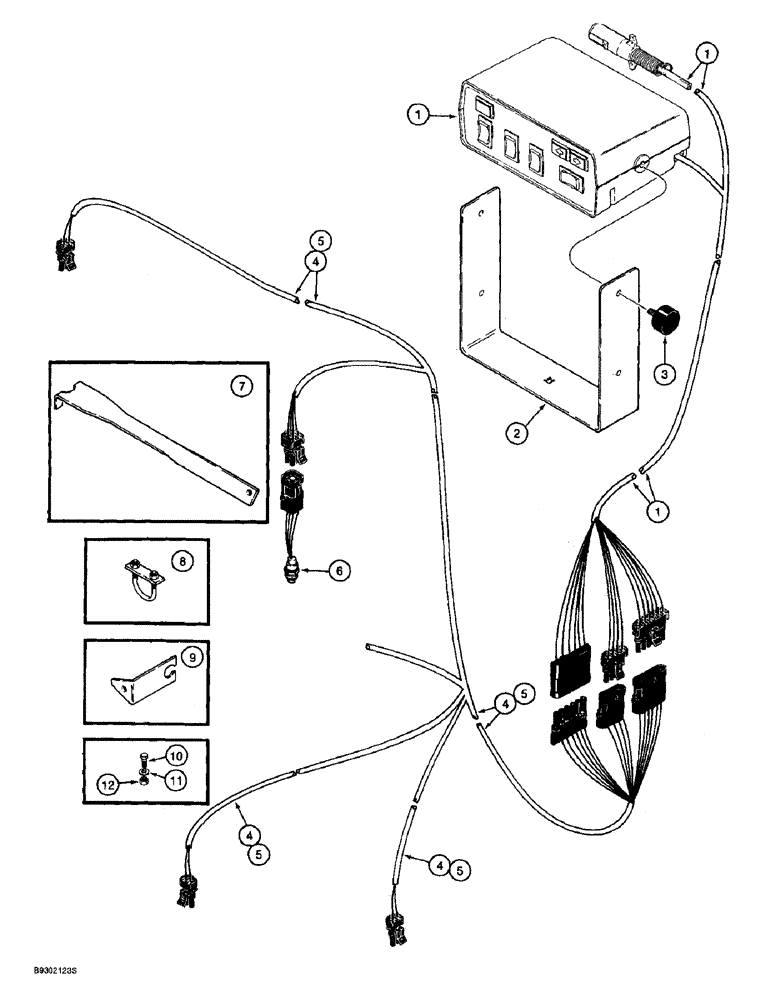

Запчасти Case IH 955 (4-14) - PLANTER CONTROL SYSTEM, WITH VICKERS CONTROL VALVE, 12, 16 & 24 ROW NARROW & 12 ROW WIDE, FRONT FOLD (04) - ELECTRICAL SYSTEMS

1

115513A2

CONTROL

ASSEMBLY - planter (Parts list Figure 4-18)

1шт.

2

1267828C1

BRACKET

- mounting, planter control

1шт.

3

1336002C1

KNOB

KIT - knob, includes 2 knobs and 2 washers

1шт.

4

115512A3

HARNESS

- main, planter control (12 row narrow, 12 row wide, and 16 row narrow)

1шт.

5

124085A1

HARNESS

- main, planter control (24 row narrow)

1шт.

6

117533A1

SWITCH

- marker alternating

1шт.

7

135243A2

BRACKET

- marker switch

1шт.

8

135245A1

U-BOLT,1/4" - 20 x 1" W x 1.75" L

ASSEMBLY - includes hardware

1шт.

9

135244A2

BRACKET

- mounting, marker switch

1шт.

10

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

1шт.

11

495-11025

WASHER,0.25" ID x 0.5" OD x 0.05" Thk

- flat, 1/4 x 1/2 x 3/64 inch

1шт.

12

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.
