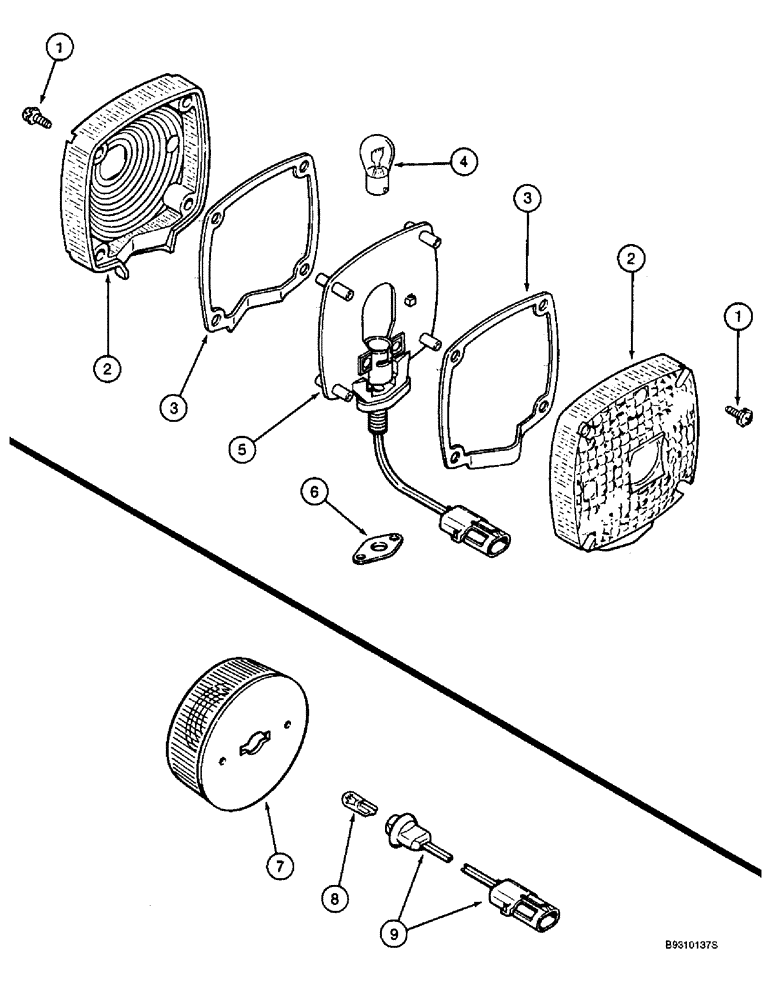

Запчасти Case IH 955 (4-12) - LAMPS, TURN SIGNAL LAMP (04) - ELECTRICAL SYSTEMS

91913C91

LIGHT

LAMP ASSEMBLY - turn signal, Includes: Ref. 1 - 6

2шт.

A44202

KIT

- lens, lamp, Includes: Ref. 1 & 2, turn signal

1шт.

1

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - self-tapping, round head Phillips, No. 8 NC x 5/8 inch, turn signal lamp

8шт.

2

NSS

NOT SOLD SEPARAT

LENS - lamp, amber (Order A44202), turn signal

2шт.

3

F63435

GASKET

- lamp mounting, turn signal

1шт.

4

A41264

BULB,#1156, 12V

Lamp, Turn signal #1156, 12V

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - lamp (Order 91913C91), turn signal

1шт.

6

A43731

GASKET

- sealing, lens, turn signal lamp

2шт.

91986C91

LIGHT

LAMP ASSEMBLY - tail, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

BASE - lamp (Order 91986C91), tail

1шт.

91934C1

SOCKET

ASSEMBLY - bulb, Includes: Ref. 8 & 9, tail lamp

1шт.

8

D71346

TAIL LAMP,12V

BULB - lamp, No. 168, tail

1шт.

9

NSS

NOT SOLD SEPARAT

SOCKET - bulb (Order 91934C1), tail lamp

1шт.
