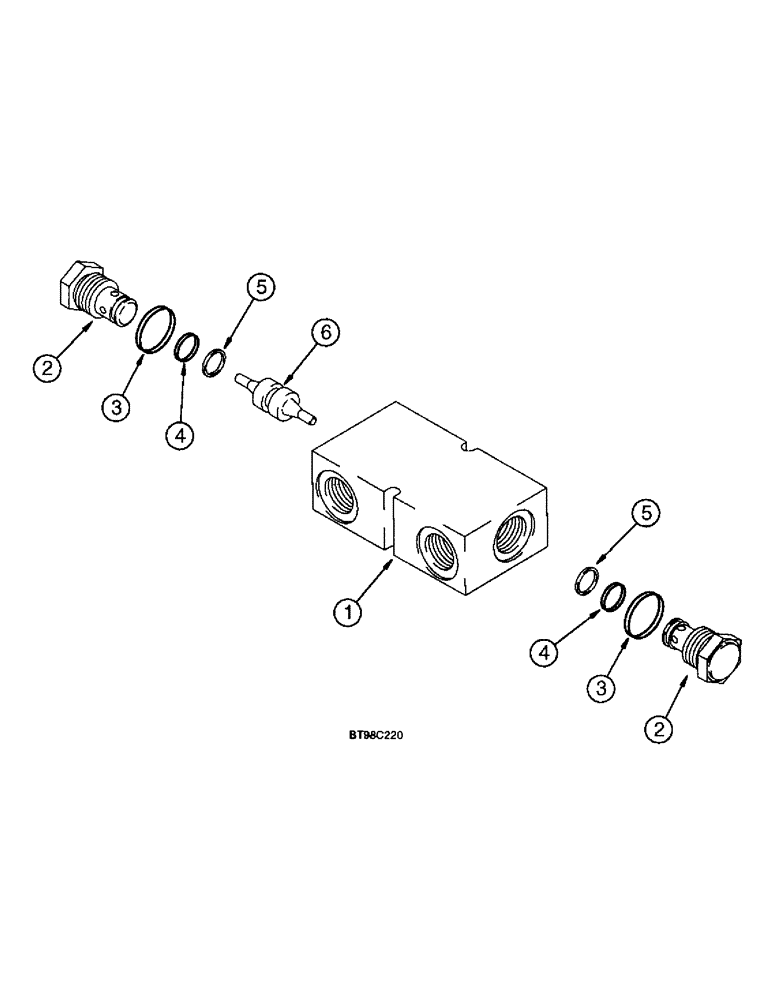

Запчасти Case IH 955 (8-143[C]) - DOUBLE ACTING LOAD CHECK VALVE, 12 ROW WIDE - FRONT FOLD (9/97 & AFTER) (08) - HYDRAULICS

298624A1

VALVE

ASSEMBLY - load check, double acting, Includes: Ref. 1 - 6, Start Serial: DBC001277

1шт.

Valve assembly part number is stamped on valve body.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order valve assembly), Start Serial: DBC001277

1шт.

2

302331A1

VALVE

- check, centering, spring, Start Serial: DBC001277

2шт.

149942C1

SEAL KIT

KIT - seal replacement, check valve, Includes: Ref. 3 - 5, Start Serial: DBC001277

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - large, Start Serial: DBC001277

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - small, Start Serial: DBC001277

1шт.

5

NSS

NOT SOLD SEPARAT

RING - backup, Start Serial: DBC001277

1шт.

6

149940C1

PISTON

- pilot, Start Serial: DBC001277

1шт.
