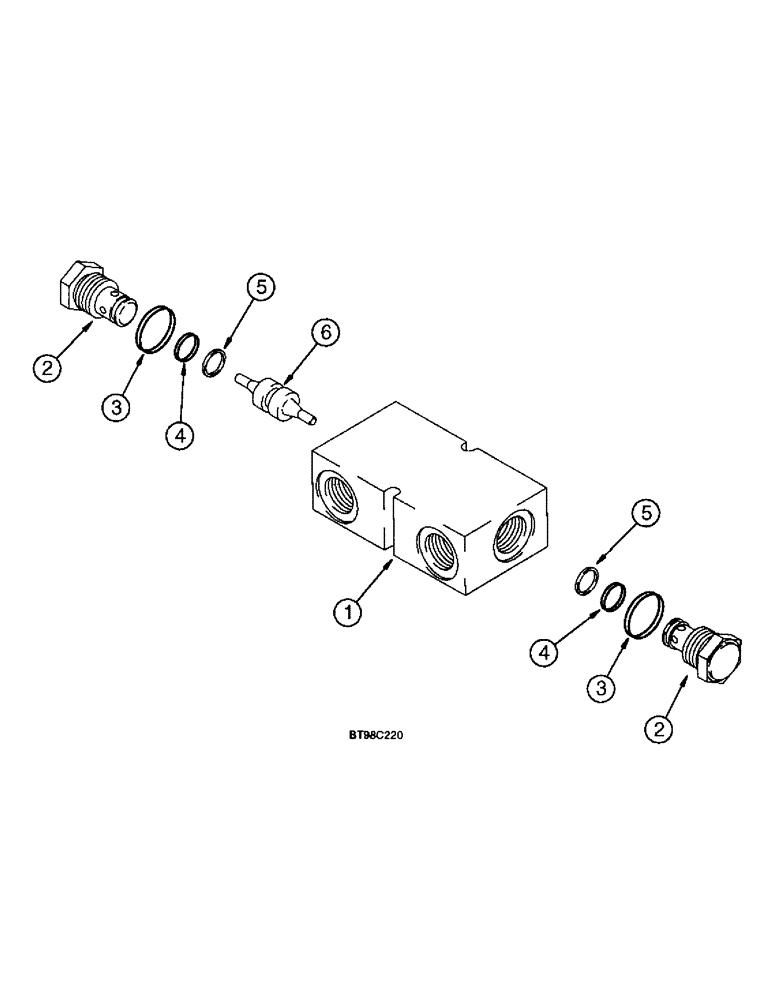

Запчасти Case IH 955 (8-143[B]) - DOUBLE ACTING LOAD CHECK VALVE, 16 ROW NARROW - FRONT FOLD (9/97 & AFTER) (08) - HYDRAULICS

298624A1

VALVE

ASSEMBLY - load check, double acting, Includes: Ref. 1 - 6, Serial Range: DBC001071-DBC0001286

1шт.

Valve assembly part number is stamped on valve body.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve (Order valve assembly), Serial Range: DBC001071-DBC0001286

1шт.

2

302331A1

VALVE

- check, centering, spring, Serial Range: DBC001071-DBC0001286

2шт.

149942C1

SEAL KIT

KIT - seal replacement, check valve, Includes: Ref. 3 - 5, Serial Range: DBC001071-DBC0001286

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - large, Serial Range: DBC001071-DBC0001286

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - small, Serial Range: DBC001071-DBC0001286

1шт.

5

NSS

NOT SOLD SEPARAT

RING - backup, Serial Range: DBC001071-DBC0001286

1шт.

6

149940C1

PISTON

- pilot, Serial Range: DBC001071-DBC0001286

1шт.
